New slim type with more practicability and convenience

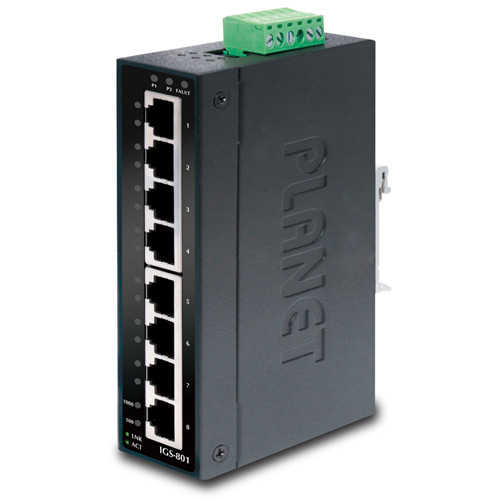

After entering the Industrial Ethernet market with popular ISW/IFT Fast Ethernet Switch/Converter series, PLANET has released the advanced industrial hardened Gigabit Ethernet Switch series with new slim type, IP-30 metal case. The compact, IP-30 standard metal case allows either DIN rail or wall mounting for efficient use of cabinet space. The IGS-801, one of the new models, is equiped with 8 10/100/1000Mbps auto negotiation ports and operates reliably in heavy industrial demanding environments.
Stable performance under difficult environments
The IGS-801 provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. Being able to operate under the temperature range from -10 to 60 degree C, the IGS-801 can be placed in almost any difficult environment. The IGS-801 also possesses an integrated power supply source with wide range of voltages (12 to 48V DC) for worldwide high availability applications requiring dual or backup power inputs.
Robust Switch performance
The IGS-801 offers high performance switch architecture. With the 8 10/100/1000Mbps Gigabit Ethernet ports providing non-blocking switch fabric and wire-speed throughput as high as 16Gbps and the 8K MAC Address table, the IGS-801 can perform wire-speed packets transfer without risk of packet loss.
The flow control function enables the IGS-801 to provide fast and reliable data transfer. The Gigabit port with 9K Jumbo frame supported can handle extremely large amounts of data transmission in industrial topology that forward data to central control room.
All of the RJ-45 copper interfaces in the IGS-801 support 10/100/1000Mbps auto negotiation for optimal speed detection through RJ-45 Category 6, 5 or 5e cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.

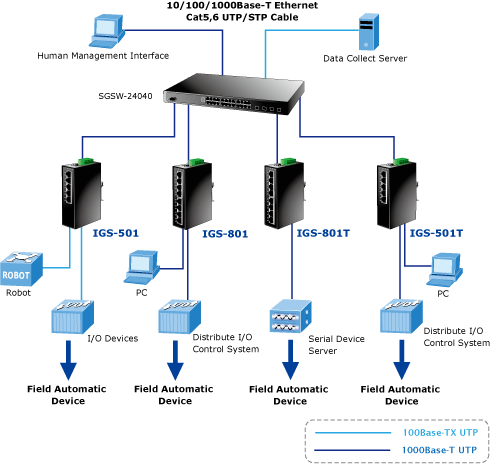

Industrial area switch for data collection and forwarding
The IGS-801 is equiped with 8 10/100/1000Mbps ports that offer auto MDI / MDIX feature, 16Gbps non-blocking switch fabric and the 8K MAC Address table so that it can perform wire-speed packets transfer without risk of packet loss. The Gigabit ports supporting 9K jumbo packet can handle large amounts of data transmission in a secure topology linking to a backbone switch or high-power servers. The IGS-801 with the slim type IP 30 metal shape is ideal for most heavy industrial demanding environments.
• Physical Port
–8-port 10/100/1000Base-T RJ-45 with auto MDI/MDI-X function
• Layer 2 Features
–Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T Ethernet standard
–Supports auto negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode
–High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
–Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
–Backplane (Switching Fabric): 16Gbps
–Integrated address look-up engine, support 8K absolute MAC addresses
–176 kilobytes on-chip frame buffer
–9K Jumbo packet size support
–Automatic address learning and address aging
• Industrial case / installation
–IP-30 metal case / protection
–DIN rail and wall mount design
–12 to 48V DC, redundant power with polarity reverse protect function and connective removable terminal block for master and slave power
–Supports EFT protection 6000 VDC for power line
–Supports 6000 VDC Ethernet ESD protection
–-10 to 60 degrees C operating temperature
Dimensions (W x D x H)
135 x 87 x 32 mm
12~48 VDC, redundant power with polarity reverse protection function
Power Consumption / Dissipation
13.2 watts / 45BTU
DIN rail kit and wall mount ear
Provides one relay output for power fail
Alarm relay current carry ability: 1A @ DC 24V
Switch Processing Scheme
Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
