VC-204

4-Port Ethernet over VDSL2 Bridge

Overview
Application
Key Features
Specification
Download
Related Products

High Performance Ethernet over VDSL

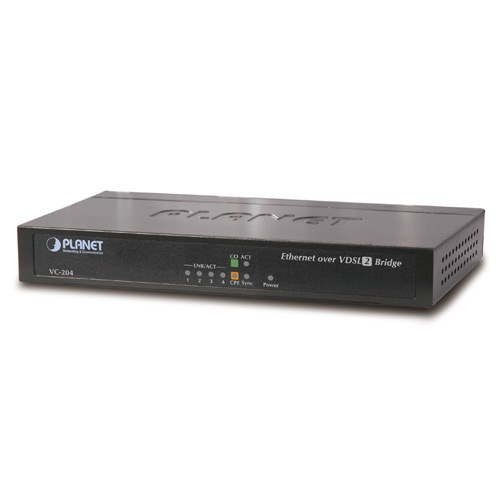

The PLANET VC-204 is an Ethernet-over-VDSL2 product with high performance. It is based on two core networking technology, Ethernet and VDSL2 (Very-high-data-rate Digital Subscriber Line 2). The VDSL2 technology offers the absolutely fastest data transmission speeds over existing copper telephone lines without the need of rewiring. The VC-204 supports ultra-high performance to the pervasive telephone line network with up to 100/55Mbps asymmetric data rate within 200m and 25/4Mbps for 1.6km long range connections.

Implements with Existing Telephone Copper Wires
The VC-204 is also a Long Reach Ethernet (LRE) converter provides four RJ-45 Ethernet ports and two RJ-11 phone jacks, in which one is for VDSL connection and the other one is for POTS (Plain Old Telephone Service) connection. The VC-204 has built-in POTS splitter to share the existing phone line with POTS, therefore it is no need of replacing the existing copper wiring. Just plug the VC-204 into the existing RJ-11 telephone jack and a high-performance VDSL2 network can be connected. It is ideal for use as an Ethernet extender to an existing Ethernet network.

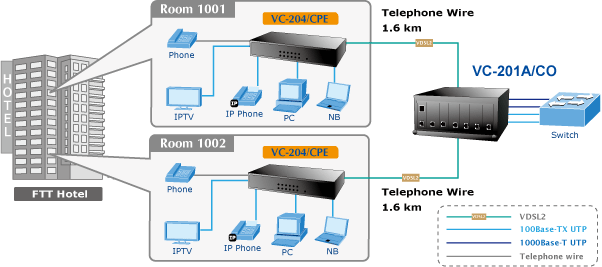

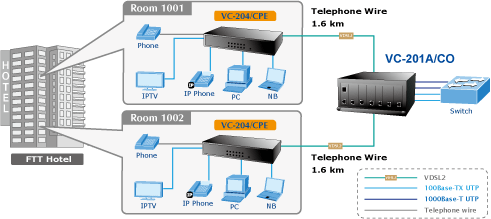

Delivers High-Demand Services Connectivity for ISP / Triple Play Devices
The VC-204 provides excellent bandwidth to satisfy the triple play devices for home entertainment and communication. With the capability of 100/55Mbps symmetric data transmission, the VC-204 enables many Multi-Media services to work on local Internet, such as VOD (Video on Demand), Voice over IP, Video phone, IPTV, Internet caching server, distance education, and so on.

Easy Installation

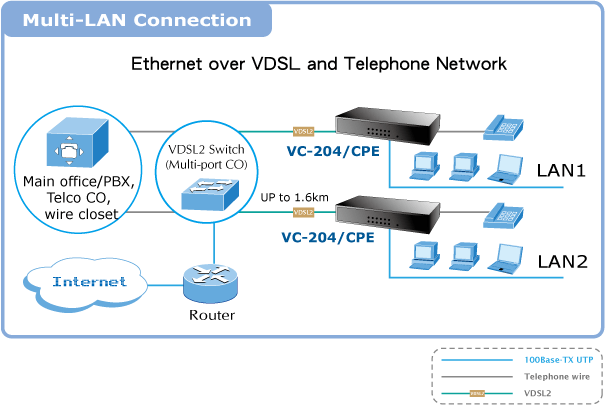

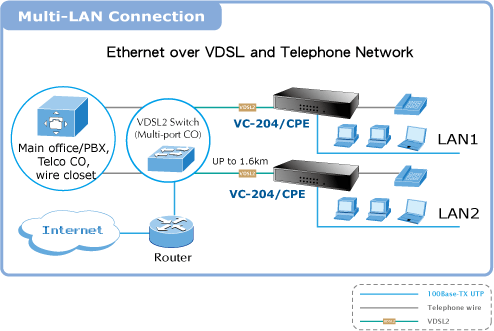

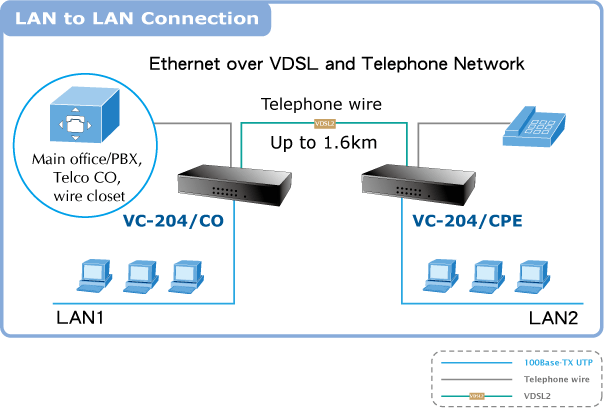

The Converter is plug-and-play design and fully compatible with all kinds of network protocols. Moreover, the operating status of each individual port and the whole system can be watched via the rich diagnostic LEDs on the front panel. There are two selectable models of the VC-204, one is used at client side (CPE) and the other one is at central side (CO). The CPE or CO mode can be adjusted by using a built-in DIP switch. For point-to-point connection, a CPE mode VC-204 and a CO mode VC-204 must be setup as one pair of converters to perform the connection.

Provides Superior Upstream and Downstream Transmission
The VC-204 also defines asymmetric (Plan 998) and symmetric (Plan 997) band plans for the transmission of upstream and downstream signals. The featured band plan 997 provides the symmetric transmission on both downstream and upstream. On the other hand, the band plan 998 performs higher transmission quality in short range for central side (CO) in asymmetric mode. In all, when the VC-204 is in symmetric mode, it provides better upstream performance, and when the VC-204 is in asymmetric mode, it gives better downstream performance.

Hardware Specification
Operating Temperature	0~50 Degree C
Storage Temperature	-25~70 Degree C
Operating Humidity	10~90%, relative humidity, non-condensing
Power Requirement	5V DC 2A
Dimension (W x D x H)	155 x 86 x 26 mm
Weight	0.38 kg
Performance	Full VDSL2 bandwidth up to: (Down Stream / Up Stream) • Asymmetric Mode 　- 200m -> 100/55Mbps 　- 400m -> 90/50Mbps 　- 600m -> 70/40Mbps 　- 800m -> 60/25Mbps 　- 1000m -> 45/15Mbps 　- 1200m -> 35/10Mbps 　- 1400m -> 30/6Mbps 　- 1600m -> 25/4Mbps • Symmetric Mode 　- 200m -> 90/90Mbps 　- 400m -> 90/90Mbps 　- 600m -> 70/70Mbps 　- 800m -> 55/50Mbps 　- 1000m -> 40/35Mbps 　- 1200m -> 30/25Mbps 　- 1400m -> 25/20Mbps 　- 1600m -> 20/15Mbps
LED Indicators	• One Power • 4 for RJ-11 / VDSL2 WAN : 　- Green, ACT 　- Green, Sync 　- Green, CO mode 　- Green, CPE mode • 1 for per RJ-45 10/100Base-TX port 　- Green, LNK / ACT
Cabling Type	• 10Base-T: 2-pair UTP Cat.3,4,5 up to 100m (328ft) • 100Base-TX: 2-pair UTP Cat.5, up to 100m (328ft) • VDSL: twisted-pair telephone wires (AWG24 or better) up to 1.6km
Encoding	• VDSL-DMT 　- ITU-T G.993.1 VDSL 　- ITU-T G.997.1 　- ITU-T G.993.2 VDSL2 (Profile 17a Support)
Functionality	• CO / CPE mode select • Selectable fast and interleaved mode • Selectable target band plan • Selectable target SNR mode
DIP Switch	4 position DIP switch
Ports	10/100Base-TX: 4 RJ-45, Auto-negotiation and Auto-MDI / MDI-X VDSL: 1 RJ-11, female Phone Jack PHONE: 1 RJ-11, Built-in splitters for POTS connection
Storage Humidity	10~90%, relative humidity, non-condensing
Switch Specification
Switch Processing Scheme	Store-and-Forward
Address Table	2K entries
Flow Control	Back pressure for half duplex IEEE 802.3x Pause Frame for full duplex
Switch fabric	1.6Gbps
Throughput (packet per second)	11.9Mpps
Network cables	10/100Base-TX: 2-Pair UTP Cat. 3,4, 5 (100meters, max.) EIA / TIA-568 100-ohm STP (100meters, max.)
Standard Conformance
Regulation Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX ITU-T 　- G.993.1 (VDSL) 　- G.997.1 　- G.993.2 VDSL2 (Profile 17a )
* The actual data rate will vary on the quality of the copper wire or coaxial cable and environment

Ordering Information
VC-204	Ethernet over VDSL2 Bridge (4RJ45, 1VDSL2/RJ11, 1*Phone-17a)
