| Product |

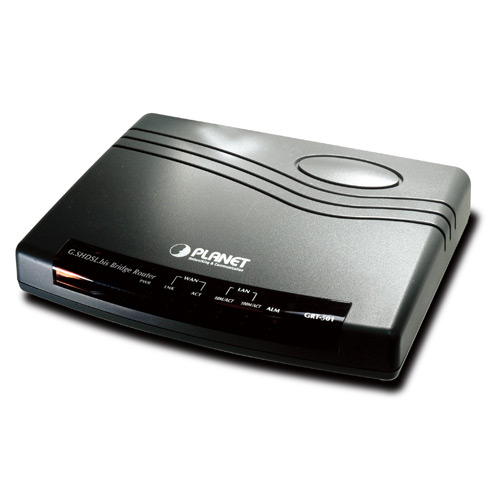

G.SHDSL.bis Bridge Router |
| Hardware |
| Standard |
Compliant with ITU-T G.991.2 Standard Annex A / B
Compliant with G.SHDSL.bis Annex A / B / F / G
TC-PAM Line Code
Symmetric data transmission speed up to 5.7 Mbps on 2-wire
Multi-range from 192kbps to 5.7Mbps
|
| Protocol |
RFC 1577 - Classical IP over ATM (RFC 1577)
RFC 2364 - PPP over ATM
RFC 1483 / 2684 - Ethernet over ATM
RFC 2516 - PPP over Ethernet (fixed and dynamic IP)
RFC 2364 - PPP over ATM (fixed and dynamic IP)
|
| AAL and ATM Support |
Supports up to 8PVCs
ATM Forum UNI 3.1 / 4.0 PVC
Supports OAM F4 / F5 AIS / RDI and loopback
VC multiplexing and SNAP / LLC
Integrated ATM QoS support (UBR,CBR,VBR-rt, and VBR-nrt)
|

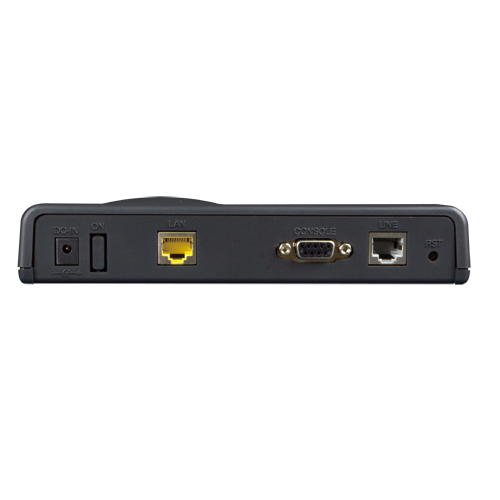

| LAN Port |
1 x 10Base-T / 100Base-TX ( Auto-Negotiation, Auto MDI / MDI-X) |
| Console |
1 x RS-232 (DB9)
|
| Button |
1 x Reset Button |
| LED Indicators |
PWR, WAN LNK / ACT, LAN 10M/100M, ALM |
| Software |
| Protocol |
IEEE 802.1D transparent learning bridge
IEEE 802.1Q VLAN
Supports IP / TCP / UDP / ARP / ICMP / IGMP protocols
IP routing with static routing and RIPv1 / RIPv2
IP multicast and IGMP proxy
Network address translation (NAT / PAT)
DMZ host / Multi-DMZ / Multi-NAT function
Virtual Server (RFC1631)
DNS relay and caching
DHCP server, client and relay
|
| Security |
Built-in NAT Firewall
PPP over PAP (RFC1334)
PPP over CHAP (RFC1994)
Password protection for system management |
| VPN |
VPN (PPTP / L2TP / IPSec) pass-through |
| Management |
Web-based configuration
Command-line Interpreter (CLI) via Console
Command-line Interpreter (CLI) via Telnet
Upgrades Software via web-browser / TFTP server
SNMPv1 and v2
|
| Environment Specification |
| Dimension (W x D x H) |
145 x 188 x 33 mm |
| Power |
9V DC, 1A |
| Temperature Humidity |
Operating: 0~45 Degree C, 0~90% (non-condensing),
Storage: -10~70 Degree C, 0~95% (non-condensing)
|
| Emission |
FCC, CE |
