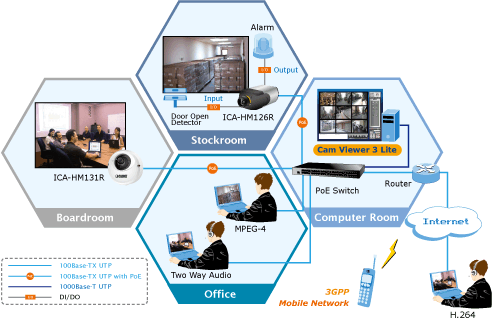

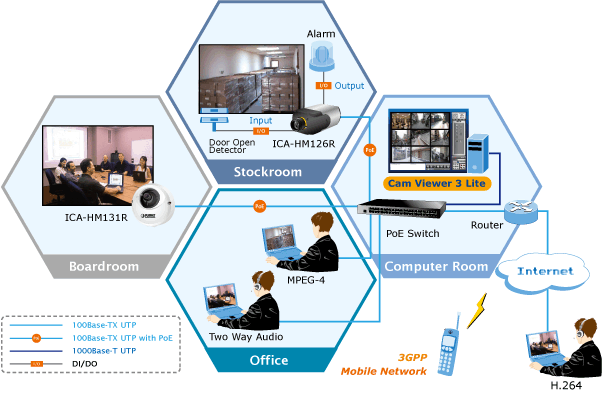

The PLANET Cam Viewer 3 - Lite is the next generation surveillance product for multi-camera video surveillance application. It enables users to easily create surveillance systems for large area coverage by using multiple cameras and can control the surveillance system from a single PC to efficiently protect your property and life.
Cam Viewer 3 - Lite helps users to monitor and record images / videos from multiple cameras simultaneously by using a single PC and able to operate up to 64 channels with advanced features such as event management and recording, tri-display monitoring, smart motion detection, advance PTZ control, and E-map.
The Smart Motion Detection feature can detect motion area to pixel accuracy based on adaptive temporal differencing. A surveillance-specific morphology operation is integrated to filter out noise and enhance motion area simultaneously. In the surveillance system, each camera has its own settings for recording, event, trigger, codec, resolution and quality. You have full control and flexibility to customize your IP surveillance products and system from a single workstation.
The recording video can be saved in the PC hard disk. All the videos in the recording system are sorted by time. It supports cycle recording to rewrite the oldest video in the system and to make the recording system work more efficiently. It also supports cutting function that users can set the start and end time point to export the video without additional editing software.
| | |
• Provides split windows monitor (1 / 4 / 6 / 9 / 13 / 16 / 25 / 36 / 64) which enables you to
flexibly monitor the surveillance videos
• Real-time / playback video with high quality at 30 / 25 FPS
• High accurate motion detection
• Advance PTZ control and four-monitor management
• Two-layer E-Map monitor and event alert
• Flexible video screen assignment and user level access control
• Infinite flexibility record by continuous, schedule, motion detection of object or device trigger
• Multi-language support and compatible with Axis / Sony / Panasonic IP cameras
| | |
| Main Function |
| IP Cameras Input(s) |
64 Channels |
| Monitor Output(s) |
4 Monitor |
| Video Format |
H.264, MPEG-4, M-JPEG |
| Max. Resolution |
5 Mega-Pixel |
| Recording Mode |
Manual, Scheduling, Event |
| Scheduling Types |
Manual Select, Day Mode, Night Mode, Weekend Mode |
| E-Map Monitor |
Yes (Two-layer) |
| Snapshot Format |
JPEG |
| PTZ Config |
Yes |
| Joystick |
Yes |
| User Account |
Yes |
| Log Types |
Alert, Event, User Access |
| Triggers & Events |
| Intelligent |
Motion Detection |
| Alarm |
Mail, FTP Server, HTTP Server, TCP Server, Warring Sound, Emergency, Central Server |
| Event Recording |
Pre/Post Event Settings |
| Playback |
| Concurrent Playback |
4 Channel |
| Search Method |
Time/Date, Event |
| Playback Controls |
Play, Pause, Stop. Forward, Reverse, Speed Adjust, Frame by Frame, Event by Event |
| Recorded Format |
AVI |
| Network & System |
| Protocols |
TCP, UDP, HTTP, /FTP, /SMTP, DHCP, DNS, ARP, ICMP, NTP, UPnP, RTP, RTSP, RTCP |
| Mini. Hardware Requirements |
CPU: Intel Core 2 Duo or above
RAM: Minimum 1 GB, 2GB or above is recommended
HDD: SATA 200GB or above is recommended
Display card: Independent display card suggested
Ethernet interface: 10/100Mb Ethernet card or above
|
| Software Requirements |
Windows 2000(SP4), Windows XP, Windows 2003, Windows Vista, and Windows 7 |
| User Interface |
| Multiple Language |
English, Traditional Chinese, Simplified Chinese, Japanese, Italian, Spanish, Portuguese, Germany, Danish, Czech, Polish, France, |
Datasheet
| Date |
Version |
Description |
Download |
| 2010-09-21 |
1.0 |
CV3L |
 |
User's Manual
| Date |
Version |
Description |
Download |
| 2010-08-19 |
1.0.0 |
Initial Release |
|
Utility
| Date |
Version |
Description |
Download |
| 2012-09-11 |
1.0.11.52874 |
Cam Viewer 3 Lite for PLANET IP Cameras |
 | |
|
