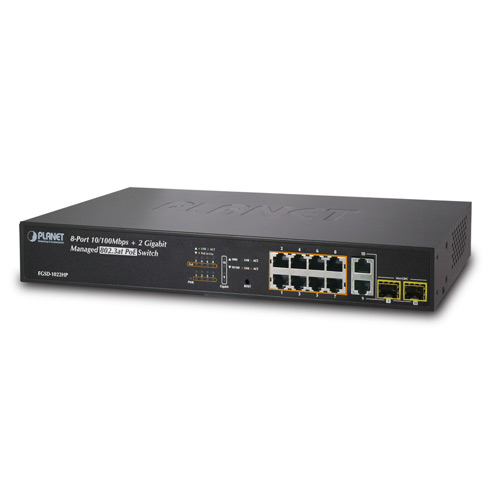

FGSD-1022HP

8-Port 10/100Mbps + 2G TP / SFP Combo Managed 802.3at PoE Switch

Overview
Application
Key Features
Specification
Download
Related Products

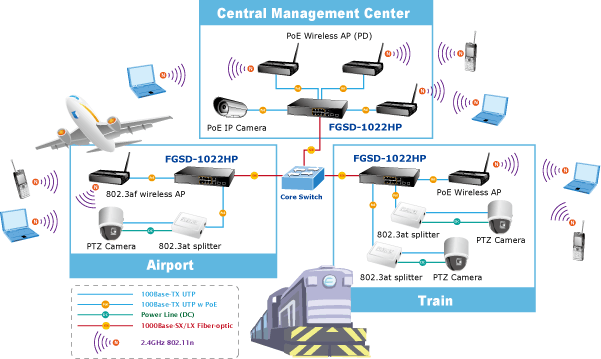

High Power PoE for Security and Public Service PoE Applications

PLANET FGSD-1022HP, the next generation Managed PoE Switch, features IEEE 802.3af and High Power IEEE 802.3at Power over Ethernet (PoE) that combines up to 30 watts power output and data per port over one CAT 5E/6 Ethernet cable. It is designed specifically to satisfy the growing demand of higher power consuming network PD (powered devices) such as PTZ (Pan, Tilt & Zoom) / Speed Dome network cameras, multi- channel (802.11a / b / g / n) wireless LAN access points and other network devices by providing double PoE power than conventional 802.3af PoE currently.

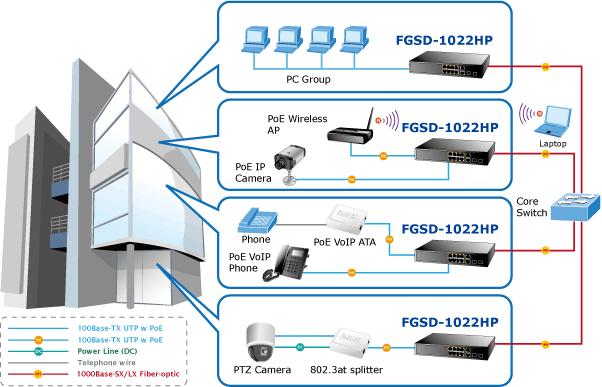

Flexible and Centralized Power Management

The 8 PoE ports in the FGSD-1022HP support both 802.3af and 802.3at PoE standards and allows users flexibly connect standard and high powered devices simultaneously. By offering 150 watts PoE budget, eight 15.4 watts IEEE 802.3af devices or five 30 watts IEEE 802.3at devices can be easily installed without the power-socket limitation.
To facilitate power management, the FGSD-1022HP is implemented powerful PoE management features such as over temperature protection, usage threshold alert and auto power allocate to prevent power budget overloading. The PoE power budget can be allocated by priorities or classification and sent alert event logs when power usage reaches the defined threshold. The FGSD-1022HP enables centralization of the power supply and optimizes the installation and power management of remote network devices; therefore, it eliminates costs for additional AC wiring and reduces installation time.

IEEE 802.3at Power over Ethernet Pre-Standard Compliant

Till today, the IEEE 802.3af Power over Ethernet Standard has become popular yet the PoE demand still grows for increasing network-powered applications. With many critical applications appears, the IEEE 802.3af PoE standard may not afford the trend of higher power demand. Hence, the IEEE 802.3at Power over Ethernet pre-standard is defined to allow delivery of maximum up to 30 Watts input power to per PoE device. The IEEE 802.3at Power over Ethernet pre-standard is an ideal solution to fulfill the high power requirements directly via the RJ-45 Port interface. Compliant with IEEE 802.3at, the FGSD-1022HP possesses stronger power capability than the existing 802.3af PoE Switch.

Full-Functioned / Robust Layer 2 Features

The FGSD-1022HP can be programmed for basic switch management functions such as port speed configuration, Port aggregation, VLAN, Spanning Tree protocol, QoS, bandwidth control and IGMP Snooping. It provides IEEE 802.1Q Tagged VLAN and the VLAN groups allowed on the FGSD-1022HP will be maximally up to 256. Via aggregation of supporting port, the FGSD-1022HP allows the operation of high-speed trunk combining multiple ports and supports fail-over as well. In addition, SNTP, System log and Remote syslog provide alarm event record to the administrator for security monitoring.

Excellent Traffic Control

The PLANET FGSD-1022HP is loaded with powerful traffic management and QoS features to enhance services offered by Service Providers. The functionality includes QoS features such as wire-speed Layer 4 traffic classifiers and bandwidth limiting applications that are particular useful for multi-tenant unit, multi business unit, Telco, or Network Service Provider. It also empowers the enterprises to take full advantages of the limited network resources and guarantees the best performance in VoIP and Video conferencing transmission.

Powerful Management and Easy To Use

For efficient management, the FGSD-1022HP is equipped with console, WEB and SNMP management interfaces. With its built-in Web-Based management interface, the FGSD-1022HP offers an easy-to-use, platform-independent management and configuration facility. For text-based management, the FGSD-1022HP can be accessed via Telnet and the console port. It supports standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based management software. Moreover, the FGSD-1022HP offers secure remote management by supporting SNMPv3 and SSL connection which encrypts the packet content at each session.

Powerful Security

The PLANET FGSD-1022HP offers comprehensive Access Control List (ACL) for enforcing security to the edge. Its protection mechanism also comprises Port-Based IEEE 802.1x user and device authentication. The Port-security is effective in limiting the numbers of clients pass through so that network administrators can now construct highly secured corporate networks with considerably less time and effort than before.

Flexibility and Extension solution

The two mini-GBIC slots are compatible with 1000Base-SX/LX and WDM SFP (Small Form Factor Pluggable) fiber-optic modules. The distance can be extended from 550 meters (Multi-Mode fiber cable) up to 10/30/50/70/120 kilometers (Single-Mode fiber or WDM fiber cable). They are well suited for applications within the enterprises data centers, distributions or remote PoE equipments data link.

Physical Port

　• 8-Port 10/100Base-TX Fast Ethernet ports with IEEE 802.3af / IEEE 802.3at PoE injector
　• 2 10/100/1000Base-T TP combo interfaces
　• 2 mini-GBIC/SFP slots, shared with Port-9 and Port-10
　• Reset button for system management
　• 1 RS-232 male DB9 console interface for Switch basic management and setup

Power over Ethernet

　• Complies with IEEE 802.3af / IEEE 802.3at Power over Ethernet End-Span PSE
　• Up to 8 IEEE 802.3af devices powered,supporting PoE Power up to 15.4 Watts for each PoE port
　• Up to 5 IEEE 802.3at devices powered,supporting PoE Power up to 30 Watts for each PoE port
　• Auto detect powered device (PD)
　• Circuit protection prevents power interference between ports
　• Remote power feeding up to 100m
　• PoE Management
　　- IEEE 802.3af and IEEE 802.3at mode Switch control
　　- Total PoE power budget control
　　- Per port PoE function enable/disable
　　- PoE Admin-mode control
　　- PoE Port Power feeding priority
　　- Per PoE port power limit
　　- PD classification detection
　　- Over Temperature Protection function
　　- Temperature Threshold Control
　　- PoE Usage Threshold Control

Layer 2 Features

　• Prevents packet loss Flow Control
　　- IEEE 802.3x PAUSE Frame flow control for Full-Duplex mode
　　- Back-Pressure Flow Control in Half-Duplex mode
　• High performance of Store-and-Forward architecture, runt/CRC filtering eliminates erroneous packets
to optimize the network bandwidth
　• Broadcast / Multicast / Unicast storm control
　• 8K MAC address table, automatic source address learning and ageing
　• Supports VLAN
　　- IEEE 802.1Q Tag-Based VLAN
　　- Port-Based VLAN
　　- Q-in-Q tunneling
　　- GVRP for dynamic VLAN Management
　　- Private VLAN Edge (PVE / Protect Port )
　• Supports Link Aggregation
　　- Up to 13 trunk groups
　　- Up to 8 ports per trunk group with 1.6Gbps bandwidth (Full Duplex Mode)
　　- IEEE 802.3ad LACP (Link Aggregation Control Protocol)
　　- Cisco ether-channel (Static Trunk)
　• Spanning Tree Protocol
　　- STP, IEEE 802.1D (Classic Spanning Tree Protocol)
　　- MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)
　• Port Mirroring to monitor the incoming or outgoing traffic on a particular port

Quality of Service

　• 4 priority queues on all Switch ports
　• Traffic classification
　　- IEEE 802.1p CoS
　　- IP TOS / DSCP to 802.1p priority mapping
　　- Port-Based priority
　• Strict priority and Weighted Round Robin (WRR) CoS policies
　• Supports QoS and In/Out bandwidth control on each port
　• Voice QoS by application source / destination protocol

Multicast

　• Supports IGMP Snooping v1 and v2
　• IGMP Snooping v2 fast leave
　• Querier mode support

Security

　• IEEE 802.1x Port-Based network access control protocol
　• RADIUS users access authentication
　• L3 / L4 Access Control List (ACL)
　• Source IP-MAC / Port-Binding
　• Port Security for Source MAC address entries filtering

Management

　• Switch Management Interface
　　- Telnet Command Line Interface
　　- Web Switch management
　　- SNMP v1, v2c, v3 Switch management
　　- SSL Switch management
　• Three user privilege levels control (Admin, Operator, viewer)
　• DHCP client for IP address assignment
　• DHCP Option82 and DHCP Relay
　• Link Layer Discovery Protocol (LLDP) for easy network management
　• Built-in Trivial File Transfer Protocol (TFTP) client
　• Firmware upgrade via TFTP or HTTP
　• Configuration restore / backup via TFTP or HTTP
　• Event message logging to local file or remote Syslog server
　• Four RMON groups 1, 2, 3, 9 (history, statistics, alarms, and events)
　• SNMP trap for interface Link Up and Link Down notification
　• Supports Ping function
　• Supports Simple Network Protocol (SNTP)

Hardware Specification
Hardware Version	2
10/100Mbps Copper Ports	8 10/ 100Base-TX RJ-45 Auto-MDI/MDI-X ports
1000Mbps Copper Ports	2 10/100/1000Mbps RJ-45 Auto-MDI/MDI-X ports
SFP/mini-GBIC Slots	2 1000Base-SX/LX/BX, shared with Port-9~Port-10
Switch Architecture	Store-and-Forward
Switch Fabric	5.6Gbps / non-blocking
Switch Throughput	4.16Mpps @64Bytes
Address Table	8K entries
Share Data Buffer	2 Mbits
Maximum Frame Size	9K Bytes
Flow Control	Back pressure for Half-Duplex IEEE 802.3x Pause Frame for Full-Duplex
LED	System: Power 10/100 PoE Port : Link/Activity (Green), PoE In-Use (Amber) Gigabit Port: 1000 LNK / ACT(Green), 10/100 LNK / ACT(Amber)
Reset Button	< 5 secs: System reboot > 10 secs: Factory Default
Dimension (W x D x H)	330 x 155 x 43.5 mm
Weight	1.74Kg
Power Input	100 - 240VAC, 50 - 60Hz, Auto-sensing
Power Consumption	200W / 686.2BTU
Power over Ethernet
PoE Standard	IEEE 802.3af / IEEE 802.3at Power over Ethernet / PSE
PoE Power Supply Type	End-Span
PoE Power Output	Per Port 56V DC, 350mA . Max. 15.4 Watts (IEEE 802.3af) Per Port 56V DC, 590mA. Max. 30 Watts (IEEE 802.3at)
Power Pin Assignment	1/2(+), 3/6(-)
PoE Power Budget	150 Watts
Max. number of Class 2 PD	8
Max. number of Class 3 PD	8
Max. number of Class 4 PD	5
Layer 2 Function
Management Interface	Console, Telnet, Web Browser, SSL, SNMPv1, v2c, v3
Port Configuration	Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow Control disable / enable Port Description
Port Status	Display each port’s speed duplex mode, link status and Flow control status Auto negotiation status, trunk status
Port Mirroring	TX / RX / Both 1 to 1 monitor
Bandwidth Control	Ingress / Egress Rate Control 　•Allow to configure per 128Kbps
VLAN	IEEE 802.1Q Tag-Based VLAN, up to 255 VLANs groups, out of 4041 VLAN IDs Port-Based VLAN Q-in-Q tunneling GVRP for VLAN Management, up to 128 dynamic VLAN entries Private VLAN Edge (PVE / Protected port) with two protected port groups
Link Aggregation	Static Port Trunk IEEE 802.3ad LACP (Link Aggregation Control Protocol) 13 groups of 8-Port trunk support
QoS	4 priority queue Traffic classification based on: 　-Port priority 　-802.1p priority 　-DSCP/TOS field in IP Packet
IGMP Snooping	IGMP (v1/v2) Snooping, up to 256 multicast Groups
Access Control List	IP-Based Layer 3 / Layer 4 ACL Up to 200 ACL rule entries
802.1X Port Access Control	Supporting EAP-MD5, EAP-TLS and EAP-PEAP authentication types
SNMP MIBs	RFC-1213 MIB-II RFC-2863 Interface MIB RFC-2665 EtherLike MIB RFC-1493 Bridge MIB RFC-2819 RMON MIB (Group 1, 2, 3,9) RFC-2737 Entity MIB POWER-ETHERNET-MIB
Standards Conformance
Standards Compliance	IEEE 802.3: 10Base-T IEEE 802.3u: 100Base-TX IEEE 802.3z: 1000Base-SX/LX IEEE 802.3ab: 1000Base-T IEEE 802.3x: Flow Control and Back pressure IEEE 802.3ad: Port trunk with LACP IEEE 802.1D: Spanning Tree Protocol IEEE 802.1s: Multiple Spanning Tree Protocol IEEE 802.1p: Class of Service IEEE 802.1Q: VLAN Tagging IEEE 802.1x: Port Authentication Network Control IEEE 802.3af: Power over Ethernet IEEE 802.3at: Power over Ethernet (Pre-Standard) RFC 768: UDP RFC 783: TFTP RFC 791: IP RFC 792: ICMP RFC 854: Telnet RFC 2068: HTTP RFC 1112: IGMP version 1 RFC 1157: SNMPv1 RFC 1305: NTP RFC 1902: SNMPv2c RFC 2138: RADIUS RFC 2236: IGMP version 2 RFC 2576: SNMPv3 RFC 5424: Syslog
Environment
Operating	Temperature: 0 ~ 50 Degree C Relative Humidity: 20 ~ 95%
Storage	Temperature: -10 ~ 70 Degree C Relative Humidity: 20 ~ 95% (non-condensing)

Ordering Information
FGSD-1022HP	8-Port 10/100Mbps + 2 Gigabit TP / SFP combo Managed 802.3at PoE Switch
