High Speed 802.11n Wireless Experience
The PLANET WNL-U554 Wireless USB adapter offers a reliable and cost effective wireless extending solution. It adopts IEEE 802.11n technology and is backward compatible with IEEE 802.11b and 802.11g. The WNL-U554 USB 2.0 supports interface that integrates one transmit channel and one concurrent receive channel, it enables the speed up to 150Mbps for both data upload and download.
/WNL-U554V5-1_s.gif)
Advanced Wireless Security
The WNL-U554 provides advanced security features including 64/128-bit WEP, WPA / WPA2 and WPA-PSK / WPA2-PSK with TKIP/AES encryption. Moreover, in order to simplify the security configurations, WPS (Wi-Fi Protected Setup) function is included to offer a convenient and fast connection method for users as well.
/WNL-U554V5-2_s.bmp)
Multiple OS Compliant
The WNL-U554 supports most popular operating systems including Windows 2000, XP, Vista, Win 7, Linux, and MAC OS X. With high speed capability, users can have higher wireless transmission speed anywhere and anytime.
Software Access Point Function for Wireless Connection Sharing
Ever experience that there is only wired Internet access available in the hotel room so you could not have your PDA, Smart Phone, or iPad access to Internet simultaneously? Or, you have to wait for Internet access in turn with your room mate? More than just being an adapter for PC and laptop connecting to high speed wireless network, the WNL-U554 can also become a wireless access point. By applying the PLANET 11n USB Wireless LAN Utility included in the package, users can switch the WNL-U554 operation mode between Station mode and Access Point mode. When the WNL-U554 is in the Access Point mode, it turns to a Wi-Fi Hotspot and can share wireless connection with the Wi-Fi devices such as iPhone / Android / Symbian / Windows Phone / iPod Touch / iPad / NDS / PSP.
/WNL-U554v5-3._s.gif)
Easy Installation Wizard
The WNL-U554 provides an easy installation wizard in 35 languages. It guides users step by step through the installation process. | | |

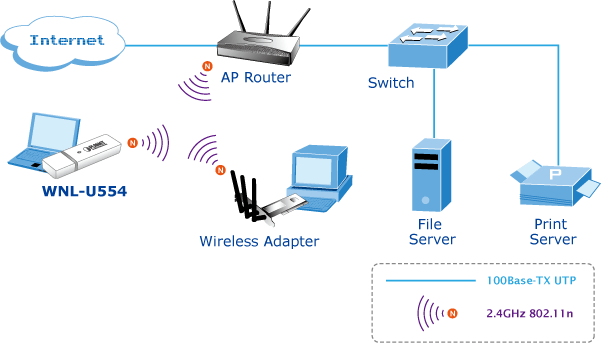

Easy to Use and Safe to Connect
Connect the WNL-U554 to your PC or notebook, you can easily share a secure wireless network for high-speed Internet access, file transmission, and media stream at home or office. Moreover, the WNL-U554 enhances the safety connection by multiple-advanced security features.
| | | | | | Flexible Wi-Fi Hotspot

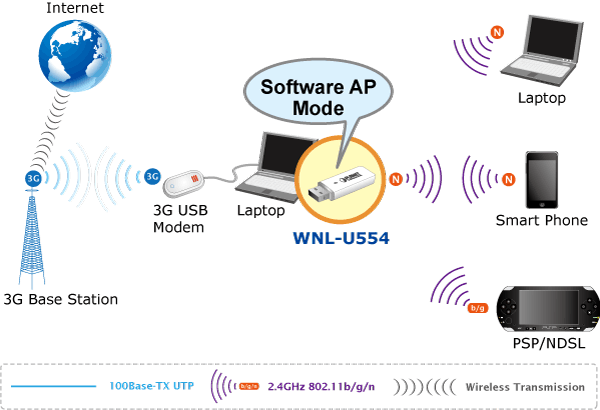

The WNL-U554 is one of the best choices for wireless environment. With the built-in Soft AP function in the WNL-U554, you can flexibly share the xDSL / Cable or 3G/3.5G Internet connection with other people.
| | | | | |
• 2.4GHz ISM band, unlicensed operation
• Compliant with IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Provides up to 150Mbps download and 150Mbps upload data rate
• Wi-Fi Protected Setup (WPS) support
• Supports WEP 64/128, WPA, WPA-PSK, WPA2, WPA2-PSK (TKIP/AES encryption)
• Supports QoS-WMM (WiFi Multi-Media) function / WMM-PS
• Supports Software AP mode
• USB 2.0 / 1.1 attached interface
• Mini-size Design
• Supports most popular operating systems including Windows 2000, XP, Vista, Win 7, Linux, and
MAC OS X | | |
| Hardware Specification |
| Hardware version |
5.0 |
| Interface |
USB 2.0, Type-A |
| Antenna |
1x Internal Omni-directional Antenna (1T1R) |
| LED |
1 x Link / Active (Blue) |
| Operation Voltage |
5V DC, power source from USB port |
| Dimension (W x D x H) |
59 x 19 x 9 mm |
| Weight |
7.4g |
| Wireless Specification |
| Standards Conformance |
IEEE 802.11n
IEEE 802.11b
IEEE 802.11g |
| RF Modulation |
DBPSK, DQPSK, CCK, OFDM |
| Frequency Band |
2412MHz ~ 2483.5MHz |
| Data Rate |
802.11n(20MHz): up to 72 Mbps
(40MHz): up to 150 Mbps
802.11g: 6/9/12/24/36/48/54Mbps
802.11b: 1/2/5.5/11Mbps
|
| Wireless Transmit Power |
≦20 dBm (EIRP) |
| Receiver Sensitivity |
135M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
|
| Operating Mode |
Ad-Hoc / Infrastructure, Soft AP |
| Encryption Security |
WEP 64/128-bit
WPA / WPA2 (TKIP/AES)
WPA-PSK / WPA2-PSK (TKIP/AES) |
| Wireless Advanced |
Supports 802.11e WMM (Wi-Fi Multimedia)
Supports software WPS (Wi-Fi Protected Setup) |
| Management |
The utility included in the package or Windows XP Zero Configuration utility |
| Operating Systems |
Windows 2000/XP (x86/x64) / VISTA (x86/x64) / Win 7 (x86/x64)
Linux Kernel 2.4 /2.6
Macintosh 10.4/10.5/10.6 |
| Environment |
| Temperature |
Operating :0 ~ 40 Degree C
Storage: -40 ~ 70 Degree C |
| Humidity |
Operating: 10 ~ 90% (Non-Condensing)
Storage: 5 ~ 95% (Non-Condensing) |
