| Hardware Specification |
| 10/100Base-TX Ports |
4 x 10/100Base-TX Auto-Negotiation
Auto MDI / MDI-X |
| IEEE 802.3af PoE Ports |
1 x PD (Port-1) |
| Antenna |
2 x Detachable RP-SMA Connector
2 x 5dBi SMA Omni-directional antenna included in the package
|
| Enclosure |
IP 30 Metal Case |

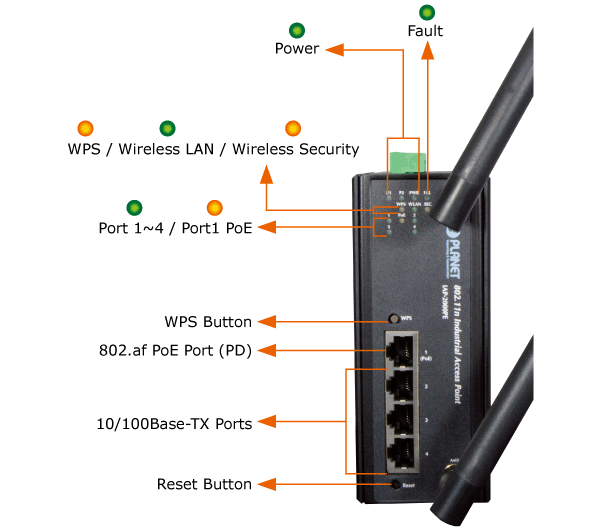

| LED Indicators |
P1, P2, PWR, FAL, WPS, WLAN, SEC, LAN1~4, PoE |
| Button |
WPS Button
Reset Button
|
| Dimension (W x D x H) |
87.8 x 135 x 56 mm |
| Weight |
871g |
| Power Requirement |
DC 12-48V / AC 24V |
| Installation |
DIN Rail Kit and Wall Mount Ear |
| Wireless Interface Specification |
| Standard |
Compliance with IEEE 802.11b/g/n |
| Frequency Band |
2.4 to 2.4835GHz (Industrial Scientific Medical Band) |
| Modulation Type |
DSS with DBPSK, DQPSK, QPSK and CCK
OFDM with BPSK, QPSK, 16-QAM and 64-QAM
|
| Wireless Data Rate |
IEEE 802.11b: 1/ 2/ 5.5/ 11Mbps
IEEE 802.11g: 6/ 9/ 12/ 18/ 24/ 36/ 48/ 54Mbps
IEEE 802.11n: 14/ 29/ 43/ 58/ 87/ 116/ 130/ 144Mps in 20MHz
30/ 60/ 90/ 120/ 180/ 240/ 270/ 300Mbps in 40MHz
|
| Opt. Channel |
America / FCC: 2.414~2.462GHz (11 Channels)
Europe / ETSI: 2.412~2.472GHz (13 Channels)
Japan / TELEC: 2.412~2.484GHz (14 Channels)
|
| RF Output Power |
802.11b: 18 dBm
802.11g: 15 dBm
802.11n: 15 dBm
|
| Receiver Sensitivity |
802.11b CCK 1.0Mbps: -94dbm
802.11b CCK 11.0Mbps: -91dbm
802.11g OFDM 6Mbps: -92dbm
802.11g OFDM 54Mbps: -76dbm
802.11n 20MHz MCS7: -72dbm
802.11n 40MHz MCS7: -70dbm
|
| Wireless Management Features |

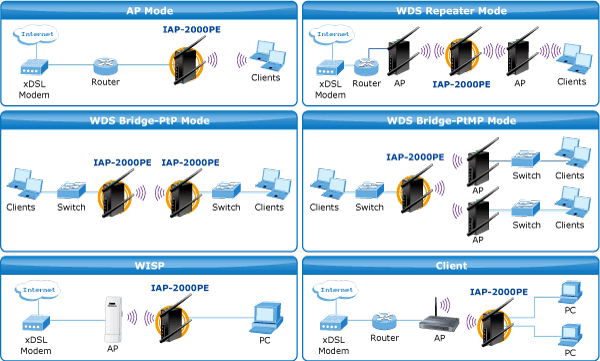

| Wireless Mode |
Access Point |
| Channel Width |
20MHz / 40MHz |
| Data Encryption Security |
64 bit / 128 bit WEP
WPA / WPA2
WPA-PSK / WPA2-PSK
802.1x Network Access Control
|
| Management |
Web-Based Configuration |
| Wireless Isolation |
Yes |
| Protocol |
| Protocol / Feature |
Bridge mode
IPv6
WDS and WPS
Static Routing and RIPv1/2
DMZ and Virtual Server
802.1D
802.1Q VLAN
QoS
SNTP
WMM
DHCP Server / Client
IGMP Proxy and DNS Proxy
UPnP and DDNS
SNMP
|
| Management |
Web-Based configuration |
| Standards Conformance |
| Standards Compliance |
IEEE 802.11b/g and 802.11n Wireless LAN
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.1Q VLAN
|
| Environment Specification |
| Temperature / Humidity |
Operating: -10~60 Degree C, 5~ 90% (non-condensing),
Storage: -20~70 Degree C, 0~95% (non-condensing)
|
| Emission |
FCC, CE |
| Stability Testing |
IEC60068-2-32 (Free Fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
|
