High-Speed 10/100Mbps Workgroup Switch
The brand-new PLANET FSD-1604 provides 16 RJ-45 10/100Mbps ports for high speed network connectivity. The FSD-1604 can automatically identify and determine the correct transmission speed as well as half / full duplex mode of the attached devices with its 16 ports interface.
Stable Fast Ethernet Switch Performance
The FSD-1604 also supports Store-and-Forward forwarding scheme to ensure low latency and high data integrity. The high performance throughput (filtering / forwarding rate: 14,880 packets per second in 10Mbps, 148,800 packets per second in 100Mbps) and 2Mbit SRAM packet buffer help the FSD-1604 to boost bandwidth, eliminate unnecessary traffic, and relieve congestion on your critical server path. With an intelligent address recognition algorithm, the FSD-1604 could recognize up to 8K different MAC address and provide 3.2Gbps switching capacity, which makes the FSD-1604 offer wire-speed packets transfer performance without risk of packet loss.

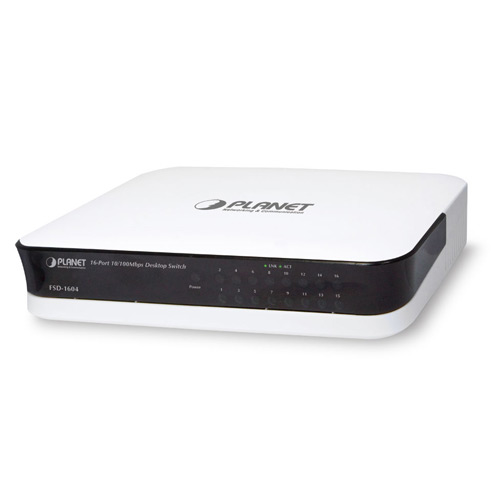

Flexible Desktop Size Design
The FSD-1604 is the fancy-shape standard plastic model to fit into space-limited environment. With concepts of "Easy to Install and use", "Compact sized design", and "Simple troubleshooting", the FSD-1604 provides cost-conscious business and home users with the foundation from an integrated system of small-office / home-office networking.
Power Energy Saving

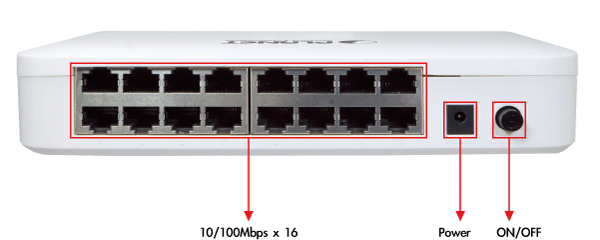

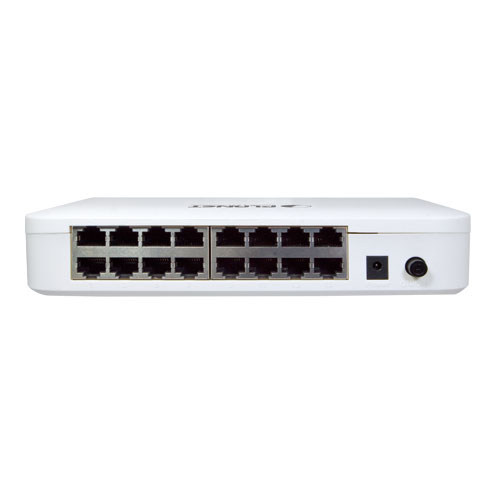

With one power ON/OFF button designed at rear panel of the FSD-1604, it can help users to reduce unnecessary power energy loss while the FSD-1604 operation is OFF.
Plug & Play and Easy Installation
All RJ-45 copper interfaces in the FSD-1604 support 10/100Mbps Auto-Negotiation for optimal speed detection through RJ-45 Category 5/5e cables. Supporting standard for Auto-MDI/MDI-X can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. The Flow Control function allows that FSD-1604 support routers and servers for direct connection to this Switch with fast and reliable data transfer.

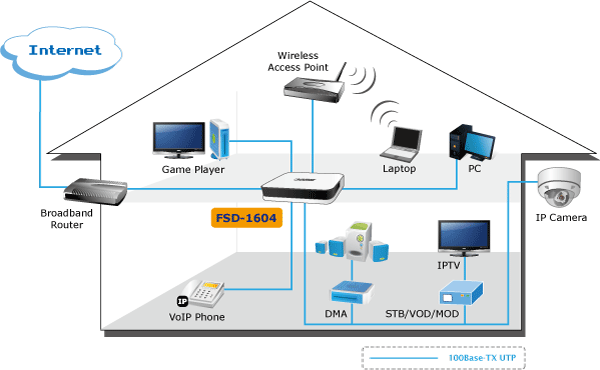

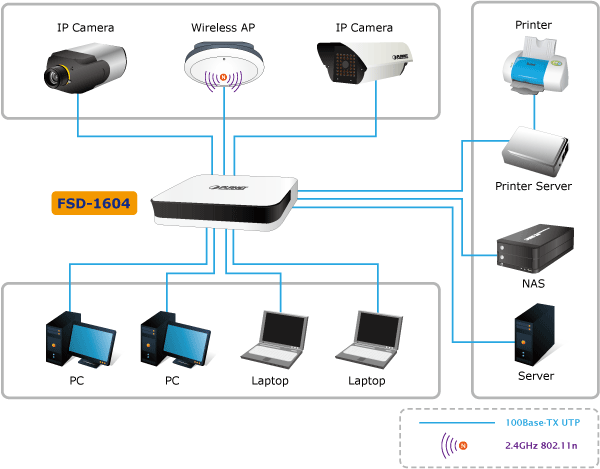

SOHO / Workgroup Switch
With 16 10/100Mbps ports, the FSD-1604 provides a cost-effective and high-performance solution for SOHO/SMB workgroup. To segment the network and ease the network traffic, the FSD-1604 is perfect for SOHO switched networks as the friendly network backbone. In addition, the network status can be monitored at a glance by the FSD-1604 providing array LED indicators.
•16-Port 10/100Mbps Fast Ethernet ports
•Comply with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
•Hardware based 10/100Mbps Auto-Negotiation and Auto MDI/MDI-X
•Features Store-and-Forward mode with wire-speed filtering and forwarding rates
•Flow control for Full Duplex operation and back pressure for Half Duplex operation
•Integrates address look-up engine, supporting 8K absolute MAC addresses
•Automatic address learning and address aging
•Comply with CSMA/CD protocol
•Plastic shape and Desktop size, wall mount designed
•LED indicators for system Power, per port Link / Act
•Supports to handle up to 1522bytes packet
•External DC 5V, 1A Power Adapter
•One power on/off button for energy saving
•FCC Class B, CE compliant
16-Port RJ-45 for 10/100Base-TX
System: Power x1 (Green)
Per Port: LNK/ACT (Green)
Store and Forward switch architecture
MAC Address Table
8K MAC address table with Auto learning function
Maximum Packet Size
Back pressure for Half-Duplex
IEEE 802.3x Pause Frame for Full-Duplex
