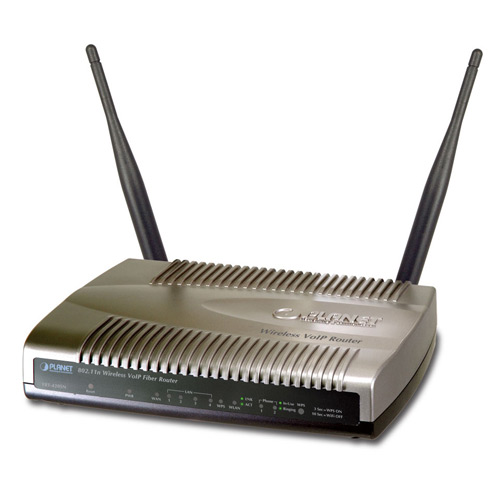

FRT-420SN

802.11n Wireless Internet Fiber Router with VoIP

Overview
Application
Key Features
Specification
Download
Related Products

Integrating the cutting edge of Internet Telephony and VoIP Router manufacturing experience, PLANET introduces the Wireless VoIP Fiber Router FRT-420SN to fulfill the high demand of bandwidth nowadays as a result of growing network services such as HDTV, IPTV, Voice-over-IP (VoIP) and Multimedia broadband applications.

The FRT-420SN provides office and residential users the ideal solution for sharing a high-speed fiber Internet connection and four-10/100Mbps Fast Ethernet backbone. It is a perfect FTTH digital home router which can provide very high performance accessing to Internet, with both downstream and upstream up to 100Mbps through the fiber interface. The FRT-420SN supports one FSP optical connectors for WAN connection and can be implemented easily in optical fiber deployment.

By applying the FRT-420SN, home users and companies can save installation cost and extend the VoIP network from their previous investments in telephones, conferences and speakerphones. The FRT-420SN is equipped with two telephony interfaces, so users may register to different SIP proxy servers and establish up to 2 concurrent VoIP calls for more flexibility in the voice communications. With advanced router and VoIP DSP processor technology, the FRT-420SN is able to make calls via SIP proxy voice communications plus the IP sharing and the QoS mechanism. The FRT-420SN can also be the bridge between traditional analog telephones and IP network with an extremely affordable investment.

Besides offering high-quality voice communications and wired Internet sharing capabilities, the FRT-420SN also performs the Access Point (AP) for flexible wireless communication. With built-in IEEE 802.11b/g/n wireless network capability, the FRT-420SN allows any computer and wireless enabled network client connect to it without additional cabling. The 802.11n wireless capability gives users the highest speed of wireless transmission at up to 300Mbps..

To secure the wireless communication, the FRT-420SN supports most up-to-date encryptions: WEP, WPA-PSK and WPA2-PSK. In addition, it supports WPS configuration with PBC/PIN type for users to connect to a secured wireless network easily.

Hardware

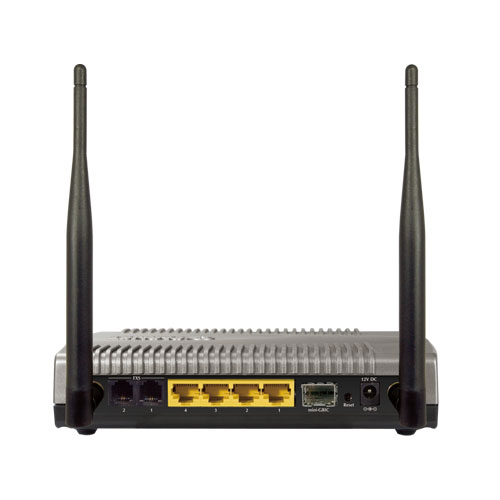

Ports	WAN 1 x 10/100Base-FX port LAN 4 x 10/100Base-TX port Wireless 1 x 802.11b/g/n Access Point, 2 x 5dBi Detachable Antennas
Optic Interface	Connector SFP Mode Vary on module Distance Vary on module
Fiber-optic cable	9/125μm single-mode cable, provides long distance transmission for 15/20/35/50km or longer (vary on SFP module)
Wireless Standard & Specification
Wireless LAN Standards	IEEE 802.11b/g/n
Wireless Frequency Range	2.4GHz ~ 2.4835 GHz
Wireless Mode	AP, Client, WDS and AP+WDS mode
Security	64/128 bit WEP data encryption, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA/WPA2 mix mode, 802.1x encryption and WPS PBC
Operating Frequencies / Channel	USA/Canada: 2.412 GHz – 2.426 GHz (11 channels) Europe: 2.412 GHz – 2.472 GHz (13 channels) Japan: 2.412 GHz – 2.477 GHz (14 channels)
Wireless Data Rate	IEEE 802.11b CCK (11Mbps,5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps) IEEE 802.11g OFDM (54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps, 6Mbps) IEEE 802.11n 14/29/43/58/87/116/130/144Mps in 20MHz,30/60/90/120/180/240/270/300Mbps in 40MHz
WDS	WDS repeater support
FXS (for telephone set connection)	2 x RJ-11 connection
Protocols and Standard
Standard	SIP 2.0 (RFC3261), SDP (RFC 2327), Symmetric RTP, STUN (RFC 3489), ENUM (RFC 2916), RTP Payload for DTMF Digits (RFC2833), Outbound Proxy Support, uPnP (uPnPTM)
Voice Codec	G.711(A-law /μ-law), G.729AB, G.723 (6.3 Kbps / 5.3Kbps), G.276 (16,24,32,40 Kbps), GSM and G.722
Fax support*	T.38 (G.711 Fax pass-through)
Voice Standard	VAD (Voice Activity Detection) CNG (Comfort Noise Generation) G.168: LEC (Line Echo Canceller) Dynamic Jitter Buffer In-band and out-of-band DTMF Relay (RFC 2833) Caller ID Detection/Generation: DTMF, BELLCORE, ETSI, BT, NTT
Protocols	SIP 2.0 (RFC-3261), TCP/IP, UDP/RTP/RTCP, HTTP, ICMP, ARP, DNS, DHCP, NTP/SNTP, PPP, PPPoE
Internet features	NAT router, DHCP server, Static routing, Virtual server, Virtual DMZ, Smart QoS, IP ToS (IP Precedence) / DiffServ
Security	Built-in NAT Firewall MAC / IP / Port Filtering URL Filtering Port Forwarding, DMZ Password protection for system management
Network and Configuration
Access Mode	Static IP, PPPoE, DHCP
Configuration & Management	Web-Based Graphical User Interface Remote management over the IP Network Web-Based firmware upgrade Backup and Restore Configuration file SNMP v1/v2, Auto-Provision, Keypad on telephone set
Dimension (W x D x H)	186 x 143 x 35 mm
Operating Environment	0~50 Degree C, 5~90% Humidity
Power Requirement	12V DC
EMC / EMI	CE, FCC Part 15 Class B
*T.38 support depends on fax machine, SIP provider and network / transport resilience.

Ordering Information
FRT-420SN	802.11n Wireless VoIP Fiber Router (1 x WAN, 4 x LAN, 2 x FXS)
