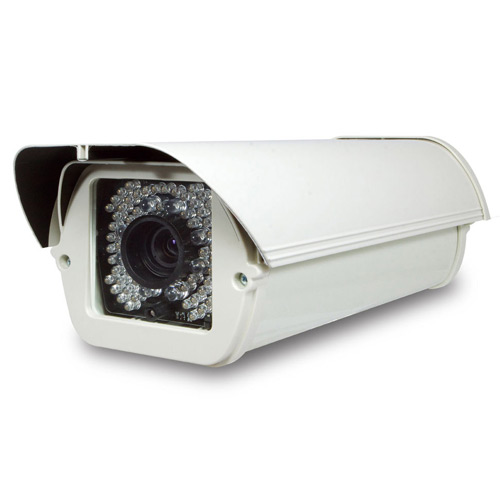

In order to fit different security issues, the PLANET CAM-IR560V Infrared Vari-Focal Camera is newly launched to meet the demands from worldwide market. With IP66 waterproof protection, high-quality image sensor and long IR distance features, the CAM-IR560V is the ideal choice for long distance outdoor surveillance solution. It can also work with PLANET Digital Video Recorders or Internet Video Servers to create a suitable security environment for protecting your daily work and life.
With the built-in 35 pieces of IR LED, the CAM-IR560V offers long IR distance up to 50 meters. By implementing SONY 1/3" CCD sensor, Digital Wide Dynamic Range (DWDR) and 2D Noise Reduction (2DNR) functions, the CAM-IR560V brings the clearest vision during daytime and nighttime.
The CAM-IR560V equips with 6~15 mm Vari-Focal lens, which provides a range of focal lengths allowing users to zoom the image in/out with just one lens. In addition, the auto-iris function provided can automatically adjust the amount of light that passes through the lens.

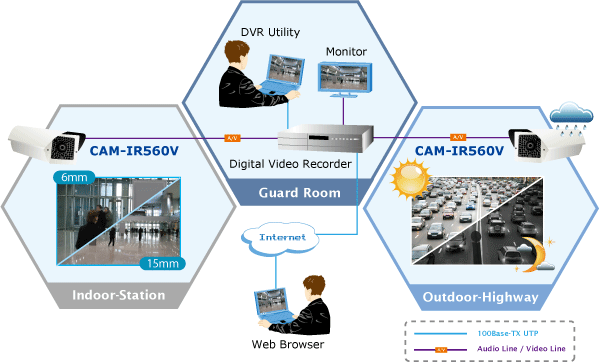

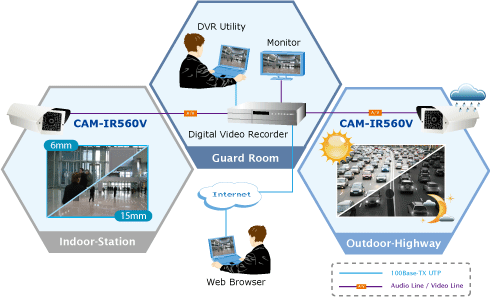

Taking advantage of the convenient TCP/IP network, the surveillance system administrators can combine different kinds of cameras with the PLANET DVR systems to establish the Day / Night surveillance applications. Moreover, PLANET provides the central management software Cam Viewer to support the administrators efficiently manage the IP cameras in the same platform simultaneously.
• Bullet color camera with SONY 1/3“ Vari-Focal CCD sensor
• 6~15 mm (F=1.4 mm) Lens
• Viewing Angle at Horizontal 33 Degree / Vertical 25 Degree
• Pixel number : NTSC=380K / PAL=440K(High Resolution)
• Minimum Illumination : 0 LUX with built-in IR-LED
• Built-in anti-aliasing and 35 Units of IR-pass (850nm) optical filter
• 50meters day/night surveillance range
Video & Audio
• Horizontal resolution reach 600TVL
• High S/N ratio more than 48 Db
• Auto White Balance (2500K~9500K)
• Auto Gain Control
• Auto Electronic Shutter Time (NTSC:1/60s~1/100,000s, PAL:1/50s~1/110,000s)
• Embedded Digital Signal Processor (DSP) chip-set for image control
• Image Enhancement with WDR / DNR
• Furnished with DC power cable and video cable
• Video Output : 1 Vp-p Composite Video / 75 Ohms
