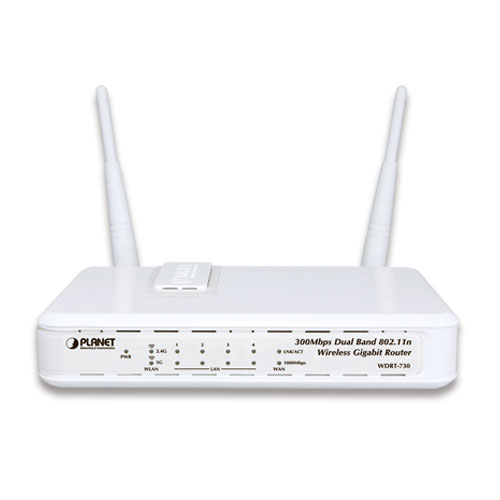

WDRT-730

300Mbps Dual Band 802.11n Wireless Gigabit Router

Overview
Application
Key Features
Specification
Download
Related Products

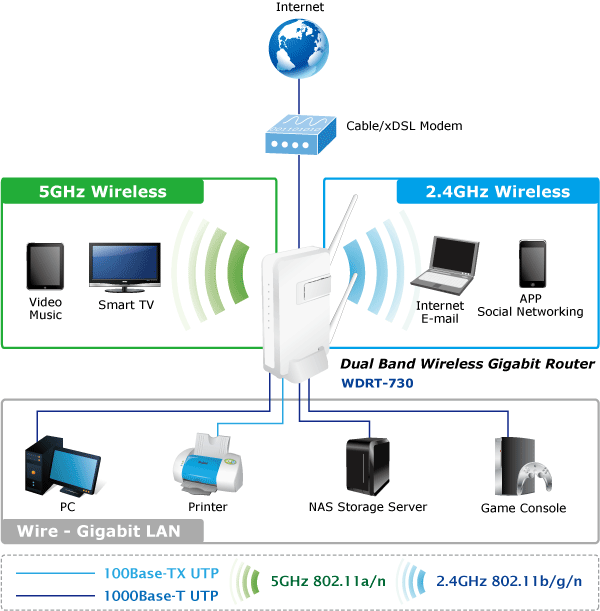

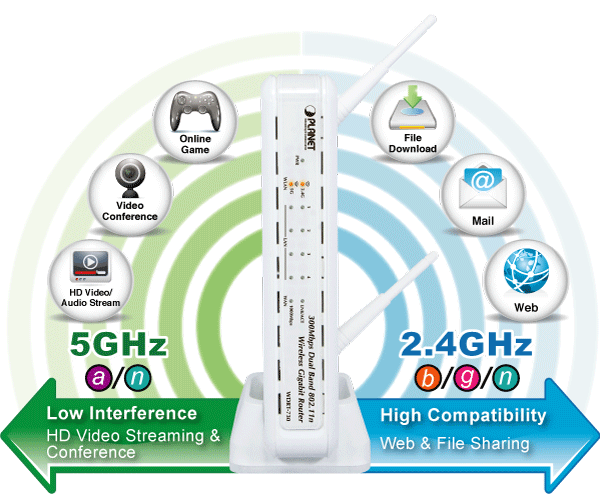

2.4G & 5G Simultaneous Dual Band Wireless Connectivity
Since there are more and more wireless devices using the radio frequency of 2.4GHz in various Wireless applications, the wireless channel of 2.4GHz has been already too crowded for clients to enjoy the high speed wireless connection. In order to avoid the wireless interference between each other, PLANET WDRT-730 provides users the radio frequency of 5GHz for watching HD videos or playing online games additionally. At the same time, it enables other users still surf the Internet via the original radio frequency of 2.4 GHz. The WDRT-730 is just like 2 totally independent Access Points in one device for you.

Multiple Network Technologies for Incredibly 600Mbps High-Speed Connection
The WDRT-730 supports IEEE 802.11a/b/g/n dual band standard with 2T2R antenna technology; therefore it can provide the wireless speed up to 300+300Mbps which is 12 times fast than traditional 11g Access Point. Moreover, the WDRT-730 is equipped with all Gigabit Ethernet Ports and hardware designed Wi-Fi ON/OFF switch. Compared with general wireless routers, the WDRT-730 offers faster transmitting speed and more convenient method to enable or disable wireless signal.

Fully Support of Wireless Security Encryption

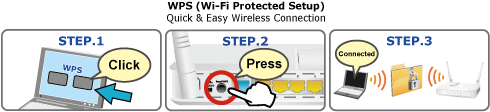

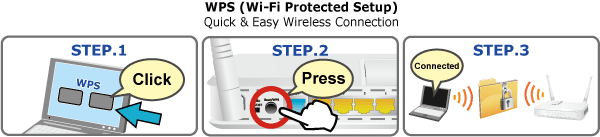

To secure the wireless communication, the WDRT-730 supports up-to-date encryption technology, WPA / WPA2 and WPA-PSK / WPA2-PSK with TKIP/AES., The WDRT-730 supports Wi-Fi Protected Setup (WPS) configuration with PBC/PIN methods to simplify the wireless security settings. By just clicking the WPS button, the secure connection between the wireless AP and the client will be built immediately.

Advanced Bandwidth Control for Specified Applications
Compared with the QoS function in the past which is too simple to be helpful and is difficult to configure, the WDRT-730 provides more powerful and flexible bandwidth control function for the administrator to keep enough bandwidth for specific applications or limit the maximal bandwidth for some specified clients. Now different users who watch HD movies, play online games, use Internet telephony, and download files can finally exist in the same local area network concurrently.

Powerful Firewall and Complete Access Control Functions
The WDRT-730 supports NAT function allowing multiple users to access Internet via a single legal IP. It also provides Virtual Server for the specific LAN PC to act as an application server and offer certain service to the clients on the Internet. In addition, the powerful firewall protects your Intranet clients from unauthorized accesses and various kinds of DoS attacks from the Internet. In the aspect of firewall, the WDRT-730 supplies IP-based and MAC-based access control to prevent possible hackers attack.

Easy Setup for Multiple Wireless Modes

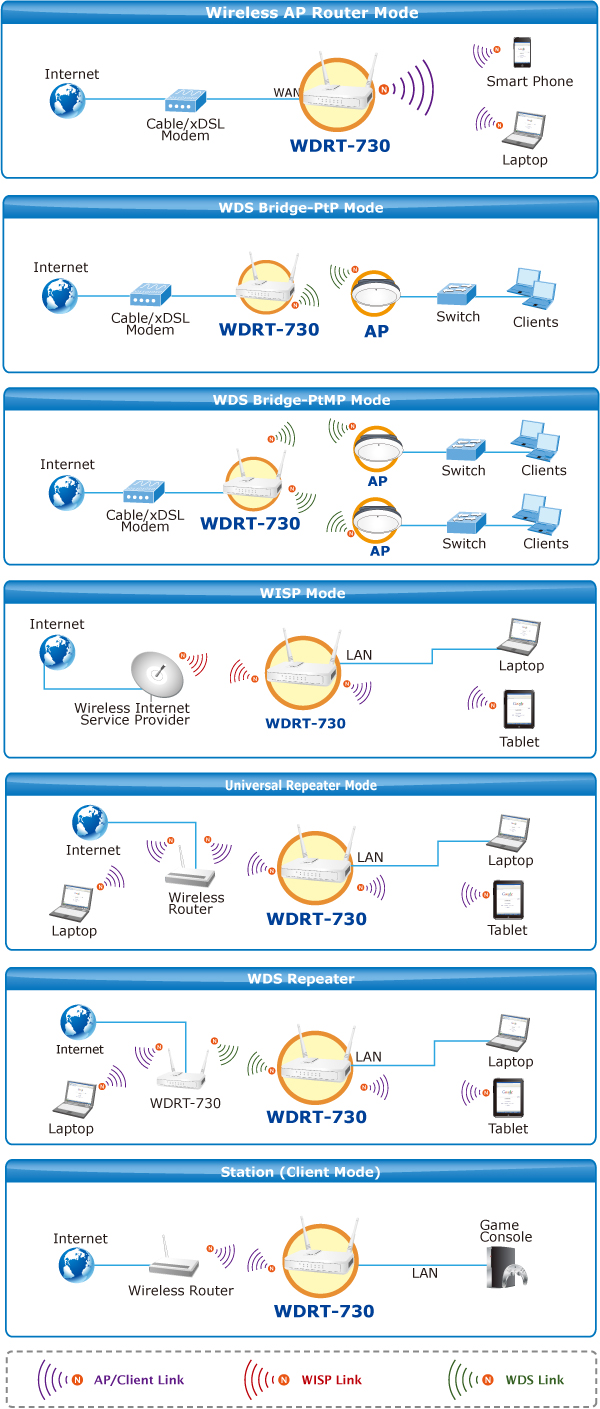

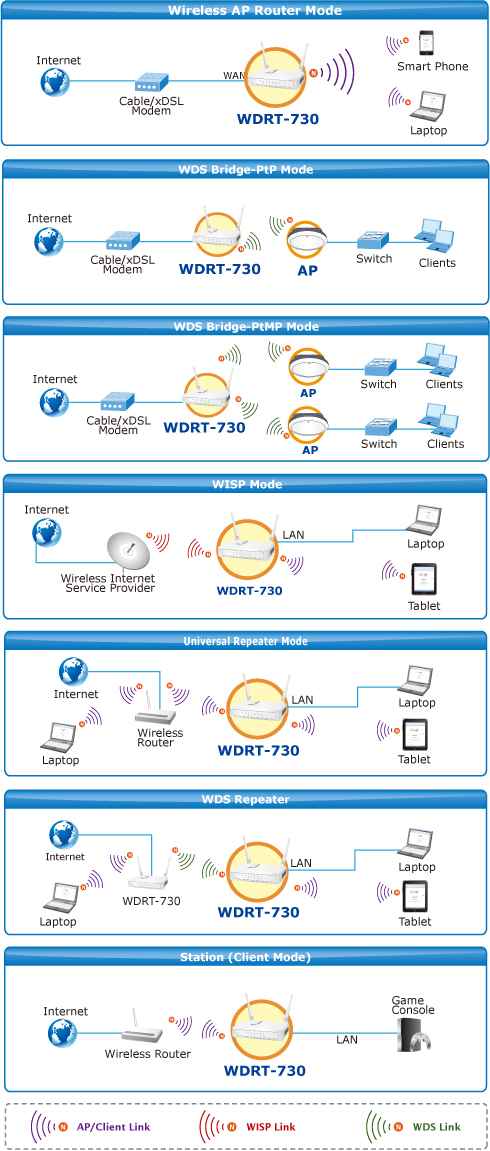

The WDRT-730 supports multiple wireless modes including AP, Station-Infrastructure, Wireless Bridge, and Universal Repeater for different network applications. Furthermore, with the built-in Quick Setup function, users can configure the WDRT-730 easily and quickly through a couple of simple steps. It is so easy to combine the WDRT-730 with the existing wired network. The WDRT-730 definitely provides a total network solution for the home and the SOHO users.

Hardware Specification

Interface

WAN Port: 1 x 10/100/1000Mbps Auto MDI/MDI-X RJ45 port
LAN Port: 4 x 10/100/1000Mbps Auto MDI/MDI-X RJ45 ports

Antenna

Gain: 2 x 3dBi fixed antenna
Orientation: Omni-directional

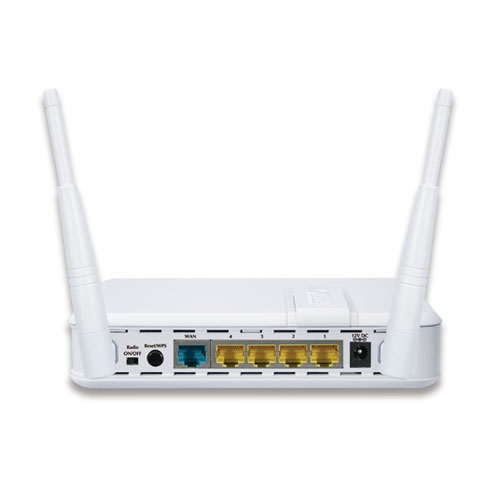

Radio Button

Radio On/Off button at rear panel

Reset / WPS Button

Reset / WPS button at rear panel
Press for more than 10 seconds to reset the device to factory default
Press for less than 5 seconds once to activate 2.4GHz wireless WPS function
Press for less than 5 seconds twice to activate 5GHz wireless WPS function

LED Indicators

PWR, WLAN (2.4G & 5G) x 2
LAN (Link & 1000Mbps ) x 8
WAN (Link & 1000Mbps) x 2

Material

Plastic

Dimension (W x D x H)

170 x 110 x 32 mm

Weight

250g

Power Requirement

12V DC, 1A

Power Consumption

Maximum of 5.5W

Wireless interface Specification

Standard

Compliant with IEEE 802.11a/b/g/n

Frequency Band

2.4G: 2.4000-2.4835GHz
5G: 5.15-5.35GHz, 5.47-5.725GHz, 5.725-5.875GHz

Extend Frequency

2.4000~2.4835GHz (ISM Band, Industrial Scientific Medical)

Modulation Type

DSSS(DBPSK/DQPSK/CCK)
OFDM(BPSK/QPSK/16QAM/64QAM)
MIMO

Data Transmission Rates

　■ 11n

	(20MHz):	MCS0-7, 32 with Half Guard Interval Support
		(up to 72Mbps)
	(40MHz):	MCS0-7, 32 with Half Guard Interval Support
		(up to 300Mbps)

　■ 11g: 6/9/12/24/36/48/54Mbps
　■ 11b: 1/2/5.5/11Mbps
　■ 11a: 6/9/12/24/36/48/54Mbps

Transmission Distance

Indoor up to 100m
outdoor up to 300m (Depends on the environment)

Channel

2.4GHz

	America / FCC: 2.412~2.462GHz (11 Channels)
	Europe / ETSI: 2.412~2.472GHz (13 Channels)
	Japan / TELEC: 2.412~2.484GHz (14 Channels)

5GHz

	5.180GHz ~ 5.825GHz (Total 23 channels)
	The actual channels in application will vary depends on the regulation in different regions and countries.

Channel Width

20/ 40MHz

RF Power / EIRP

2.4GHz
　　802.11b: 17±1.5 dBm
　　802.11g: 14±1.5 dBm
　　802.11n: 14±1.5 dBm
5GHz
　　802.11a: 12±1.5 dBm
　　802.11n: 12±1.5 dBm

Receive Sensitivity

2.4GHz
　　11b (11Mbps): -84dBm
　　11g (54Mbps): -68dBm
　　11n 20M (MCS7): -66dBm
　　11n 40M (MCS7): -63dBm
5GHz
　　11a (54Mbps): -68dBm
　　11n 20M (MCS7): -66dBm
　　11n 40M (MCS7): -63dBm

Wireless Management Features

Wireless Modes

　■ AP ( Access Point)
　■ WDS PtP (Point to Point)
　■ WDS PtMP (Point to Multipoint)
　■ WDS+AP
　■ Universal Repeater
　■ Client

Encryption Security

WEP (64/128-bit)
WPA-PSK (TKIP) / WPA2-PSK (AES)
WPA (TKIP) / WPA2 (AES)
802.1x authentication

Wireless Security

Provided wireless LAN ACL (Access Control List) filtering
Wireless MAC address filtering
Supports WPS (Wi-Fi Protected Setup )

Wireless Advanced

802.11e WMM (Wi-Fi Multimedia)
Supports Wireless Roaming (Mobility Feature)
Provides Wireless Packets Statistics
Wireless Transmit Power Control: 10/25/50/75/90/100%

Router Features

Internet Connection Type

Shares data and Internet access for users, supporting the following internet access:
　■ Dynamic IP
　■ Static IP
　■ PPPoE
　■ PPTP
　■ L2TP
　■ Telstra Big Pond
　■ WISP

Firewall

NAT firewall
NAT with ALG (Application Layer Gateway)
Built-in NAT server which supports Port Forwarding, Virtual Server, and DMZ
Built-in firewall with IP address filtering, Domain Name filtering, and MAC address filtering
Supports DoS protection

LAN

Built-in DHCP server supporting static IP address distributing
Supports UPnP, Dynamic DNS
Supports Packets Statistics
IP & MAC Binding
IP / Port / Protocol-based Bandwidth Control
Session Number: Max 10240

System Management

Web-Based (HTTP) management interface
Remote management
SNTP time synchronize
Quick Setup
System Log and Security Log

OS Compatibility

Windows 7 / Windows Vista / Windows 2008
Windows XP / Windows 2003
Mac OS X 10.4 and higher

Standards Conformance

IEEE Standards

IEEE 802.11n
IEEE 802.11a
IEEE 802.11g
IEEE 802.11b
IEEE 802.11i
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T

Others Protocols and Standards

CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP

Temperature

Operating: 0 ~ 40 Degree C
Storage: -40 ~ 70 Degree C

Humidity

Operating: 10 ~ 90% (Non-Condensing)
Storage: 5 ~ 90% (Non-Condensing)

Regulatory

CE, RoHS

Ordering Information
WDRT-730	300Mbps Dual Band 802.11n Wireless Gigabit Router
