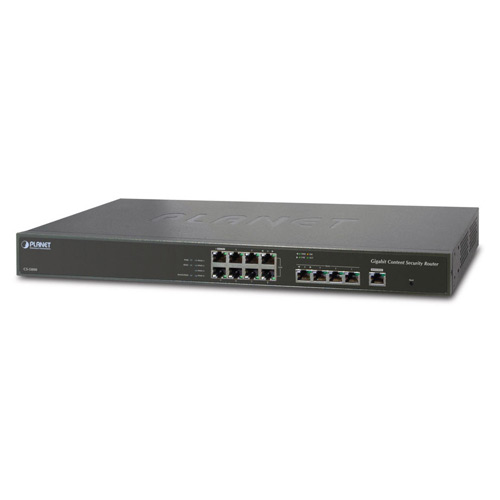

CS-5800

Gigabit Content Security Router

Overview
Application
Key Features
Specification
Download
Related Products

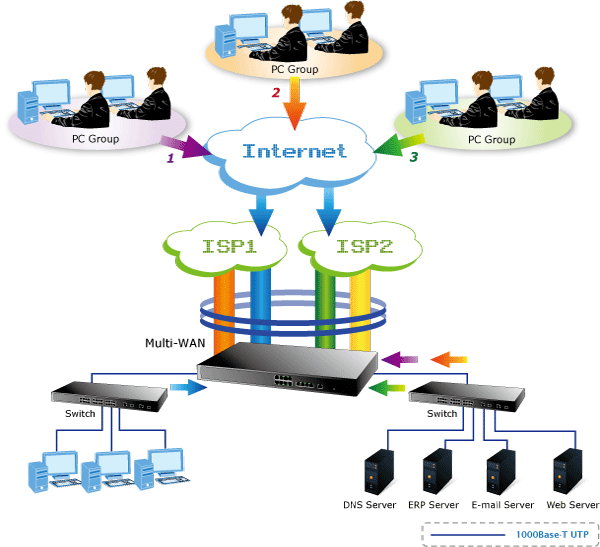

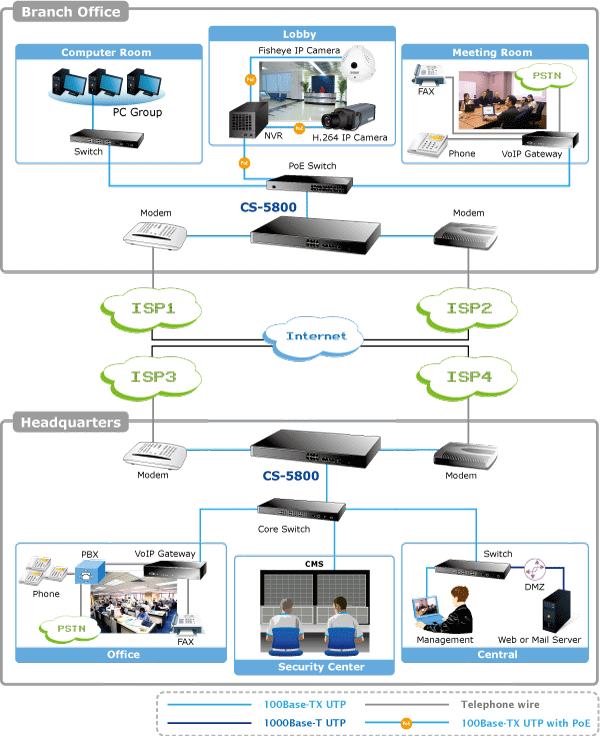

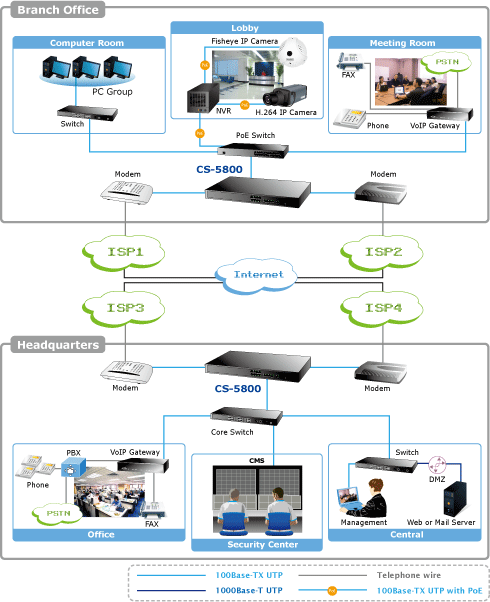

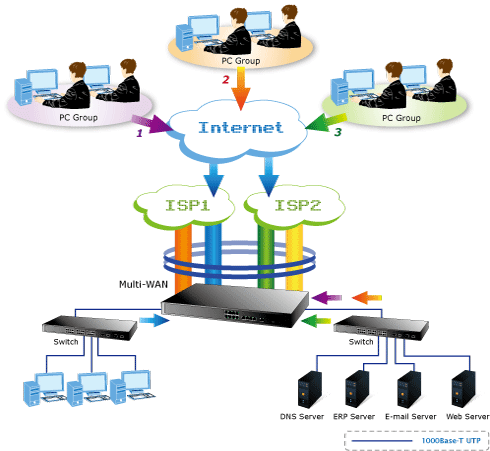

As Internet becomes essential for business, the crucial solution to prevent your Internet connection from failure is to have more than one connection. PLANET CS-5800 is the Gigabit Content Security Router ideal to help the SMBs increase the broadband network performance and reduce the risks of potential shutdown if one of the Internet connections fails. The CS-5800 can monitor each WAN link status and automatically activate backup links when a failure is detected. The detection is based on the configurable target Internet addresses.

Network Efficiency Improvement with Load-Balancing
The CS-5800 helps the server working to improve efficiency and allows you to perform load-balancing by distributing the traffic through three or four WAN connections. In Outbound Load Balancing, the network sessions are assigned based on the user configurable load balancing mode including "Auto Load Balance", "Unbinding WAN Balance" and "Strategy Routing". Users can also configure which IP or TCP/UDP type of traffic use which WAN port to connect. The Inbound Load Balancing is for enterprise’s internal server in order to reduce the server loading and the risks of system crash.

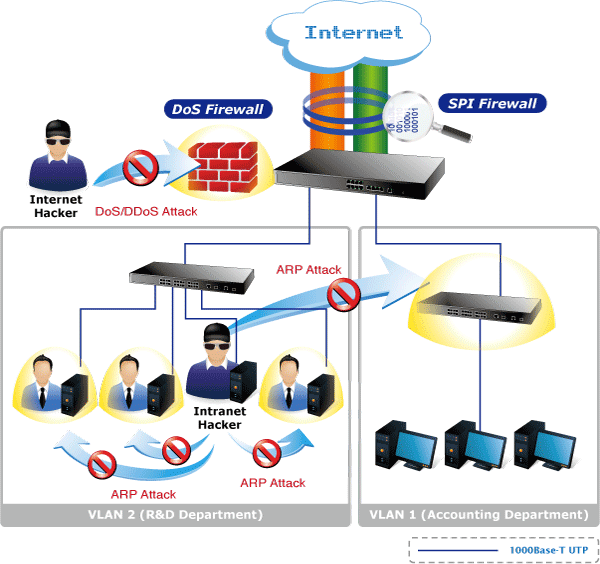

Protection for Network Security
The CS-5800 Gigabit Content Security Router integrates a complete security solution in one box in addition to the Multi-Homing functions. It provides the policy-based firewall, content filtering functions that make it a perfect security protection for your network. By applying the CS-5800, there is no need of integrating different security products on the network and worry free from complicated connections and settings.

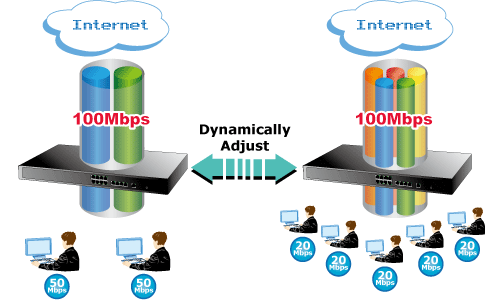

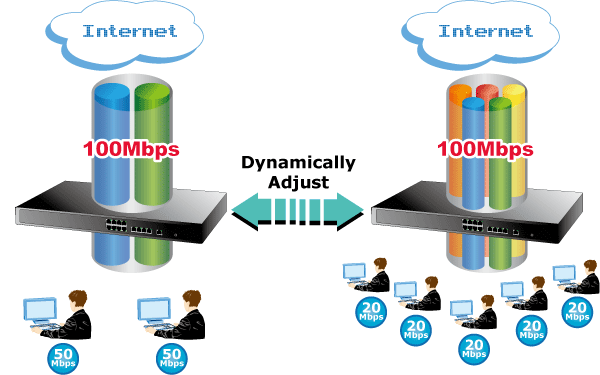

QoS Bandwidth Management
Besides offering easy yet powerful bandwidth management capability, the CS-5800 features Smart QoS with dynamic bandwidth management to automatically control P2P, video downloading and other bandwidth hogging in order to avoid bandwidth insufficiency. It helps the network administrators better allocate network resources based on business priorities, as well as to shape and control bandwidth usage by prioritizing different persons/groups or applications.

Easy Remote Management
The CS-5800 provides embedded Mirror Port function to facilitate monitoring the connected devices and their online behavior. It also supports secure remote management via web browser with protection of user authentication.

Hardware
Ethernet	• LAN:8 x 10/100/1000 Mbps RJ-45 • WAN:4~5 x 10/100/1000 Mbps RJ-45, configurable with WAN 5 (WAN 5 / DMZ) • DMZ:1 x 10/100/1000 Mbps RJ-45
Button	• Reset:1 x Reset button for factory default settings • Power:1 x Power on/off switch
Operating Environment	• Temperature:0 ~ 50 Degree C • Relative Humidity:10~85%(non-condensing)
Dimension (W x D x H)	440 x 254 x 43.5 mm
Power	100~240V AC, 50~60 Hz, max 0.8A
Regulatory	FCC Class A, CE
Software
Multi-WAN Function	• Inbound / Outbound Load Balance: by session and by IP • Protocol Binding • Network Service Detection
Routing	• Dynamic Route RIP v1 / v2 • Static Route
System Performance	• Concurrent session: 50000 • Firewall performance: 1Gbps • Corporation Size: SMB (clients 200~250) • 3DES performance: 270Mbps
Bandwidth Management	• Guaranteed Bandwidth • Max Bandwidth • Session Limit • Port-Based QoS
Firewall Security	• NAT • One-to-One NAT • Multiple-to-One NAT • Stateful Packet Inspection (SPI) Firewall • Denial of Service (DoS) prevention • IP & Port filtering • Block Website by Keyword, Content Filter • Firewall detection: Ping of Death, SYN Flooding, Land attack, IP Spoofing • Email Alert for Hacker Attack • IP & MAC Binding • Supports DMZ Host to protect your network • Prevents ARP Attack on LAN
Networking	• Configurable DMZ • DHCP Server (supports class C), client, dynamic IP, static IP, IP Grouping support • Multiple DHCP Server (supports 4 sets of Class C) • PPPoE / Static IP / DHCP Client • Multiple Subnet • Protocol: TCP/IP, ARP, ICMP, FTP/TFTP, IPv4, IPv6 • NAT with port forwarding • DNS Relay • DDNS supports DynDNS, 3322 • Password protected configuration or management sessions for web • Port Management – Speed / Duplex / Auto Negotiation / VLAN • Transparent Bridge
Network Management	• Comprehensive web based management and policy setting • SNMP v1 / v2c • Monitoring, Logging, and Alarms of system activities • Firmware upgrade through web browser
VPN Pass through	IPSec, PPTP, L2TP Pass through

Ordering Information
CS-5800	Gigabit Content Security Router
