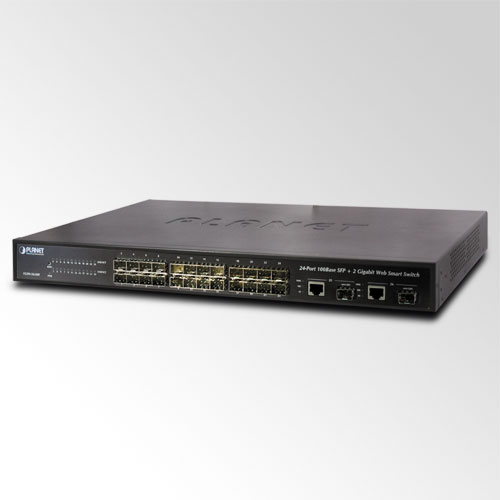

The PLANET FGSW-2624SF is equipped with 24-Port 100Base-FX SFP (Small Factor Pluggable) ports and 2 Gigabit TP / SFP combo ports (Port 25, 26). The 24 100Base-FX SFP ports are with high reliability and flexibility to extend the distance up to 2Km, 20Km, or longer. It depends on the 100Base-FX SFP transceiver modules. And the two Gigabit TP / SFP combo ports can be either 1000Base-T for 10 / 100 / 1000Mbps or 1000Base-SX / LX through SFP.

The FGSW-2624SF is designed for the applications, such as FTTx installation for ISPs, Campuses and enterprises. The fiber-Optic wires on the basis of distance are flexibly provided. Therefore, the product will perfectly satisfy the diverse demands while providing reliable and efficient network solutions based on the distance and budgets of installation.

The FGSW-2624SF is equipped with non-blocking 8.8Gbps backplane greatly simplifies the tasks for upgrading your LAN to cater increased bandwidth demands.

For efficient management, the FGSW-2624SF Web Smart Switch is equipped with web interface. The FGSW-2624SF can be programmed for basic functions of switch management, such as port speed configuration, Port Trunking, VLAN, Port Mirroring, QoS, bandwidth control, Access Control list and Misc Configuration.

The FGSW-2624SF provides port-based VLAN (including overlapping) and 802.1Q Tag-based VLAN. The VLAN groups allowed the FGSW-2624SF to be maximal up to 26 for port-based VLAN. Via supporting port trunking, the FGSW-2624SF allows the operation of high-speed trunk combining multiple ports. The FGSW-2624SF provides seven groups which is up to 8-ports for trunking and it supports fail-over as well.
