IEEE 802.3af 12-Port Power over Ethernet Web Management Injector Hub
Quick and Easy PoE Network Deployment

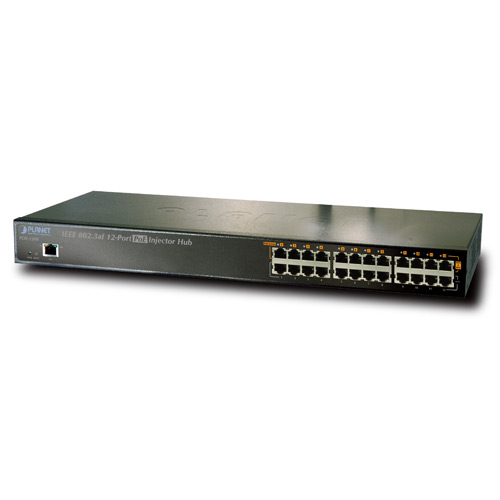

PLANET POE-1200 is a 12-port IEEE 802.3af Power over Ethernet injector hub which complies with IEEE 802.3, IEEE 802.3u and IEEE 802.3af standards. With 12 10/100Base-TX Fast Ethernet ports, this device supports full 48VDC power for any remote IEEE 802.3af powered devices (PDs) like wireless LAN access points, IP phones, and IP cameras. Supporting power supply of 110 watts, the POE-1200 provides sufficient power to 12 remote PD devices.
The POE-1200 is installed between a regular Ethernet Switch and the powered devices, injecting power without affecting the data transmission. It offers a cost effective and quick solution to upgrading network system to IEEE 802.3af Power over Ethernet system without replacing the existing Ethernet Switch.
Easy Cabling Installation
There are 24 RJ-45 STP ports on the front panel of Hub, in which the 12 ports on the lower stack function as "Data input" and the other 12 ports on the upper stack function as "Data and Power output". Each of the "Data and Power output" port on the upper stack operates as an power injector which transmits DC Voltage to the CAT 5 cable to transfer data and power simultaneously between the Injector and Splitter.
Friendly / Simple Web Management Interface
To efficiently manage the powered devices, the POE-1200 provides Web management interface in which administrators can use the functions including port enable / disable, port priority, system configuration, and User Name / Password change and with smart features for powered device. The PoE injector hub can auto detect the power status of each port and show messages on its Web management interface. These features also provide a cost-effective way to manage the devices via Internet whenever you are at work or at home.
PoE Injector Hub

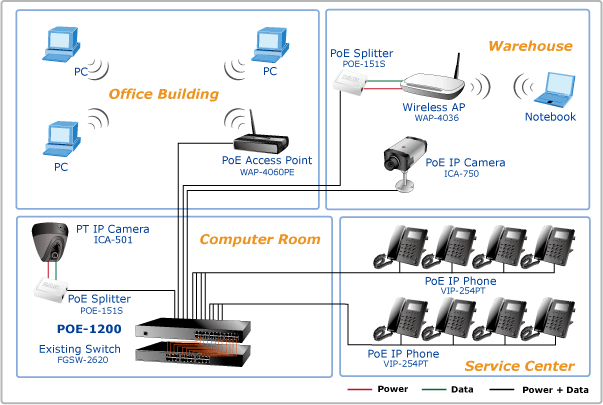

For the places hard to find the power outlet, POE-1200 provides the easiest way to power your Ethernet devices such as PLANET IP camera ICA-750 on the ceiling and the WAP-4060PE wireless access point is installed on the top of the building.
To control the power system of your networking devices, the POE-1200 can directly co-work with PLANET VIP-254PT and PoE IP phone to build VoIP telephony network in the office. Furthermore, the POE-1200 can be directly connected to any third party 802.3af devices and PoE switches installed 100 meters away.
• 24-Port RJ-45 STP
12-Port "Data input"
12-Port "Data + Power output"
• 1 10/100Base-TX Management port
• Complies with IEEE 802.3af Power over Ethernet Mid-Span PSE
• Up to 12 IEEE 802.3af devices powered
• Supports PoE Power up to 15.4 watts for each PoE ports
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100m
• Total PoE power budget control
• Pert port PoE function enable / disable
• PoE Port Power feeding priority
• Per PoE port power limit
• PD classification detection
• Web interface for remote management
• Firmware upgrade through Web interface
• PLANET Smart Discovery utility automatically finds PLANET devices on the network
• SNMP Trap for alarm notification of events
• 19-inch rack mountable; 1U height
• Reset button for reset to default setting and system reboot
• LED indicators for PoE ready and PoE activity
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3af Power over Ethernet
• FCC Part 15 Class A, CE
"Data" Input Ports：12 x RJ-45 STP
"Data + Power" Output Ports：12 x RJ-45 STP
Management Port：1 x RJ-45; 10/100Base-TX, auto-negotiation, auto-MDI / MDIX
System: Power x 1 (Green)
Management Port x 2: 10/100 (Green / Orange)
Per PoE Port: PoE in Use x 1 (Green)
10Base-T: 2-Pair UTP Cat. 3, 4, 5, up to 100m (328ft)
100Base-TX: 2-Pair UTP Cat. 3, 4, 5, up to 100m (328ft)
EIA / TIA- 568 100-ohm STP (100m)
Dimensions (W x D x H)
440 x 200 x 44 mm (1U height)
100-240V AC, 50/60 Hz
130 watts max.
0 ~ 50 degrees C
-40 ~ 70 degrees C
5 ~ 95% (non-condensing)
Fan x 1
Power over Ethernet
IEEE 802.3af Power over Ethernet / Mid-Span PSE
PoE Power supply Type
PoE Power Output
Per Port 48V DC, 350mA . Max. 15.4 watts
Power Pin Assignment
Web, PLANET Smart Discovery Lite
Power Limit by Priority and Total Limit
Per port power enable / disable
Power feeding priority
Current usage and status
Total power consumption
System / Management functions setup
Web firmware upgrade
SNMP Trap for alarm notification of events
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3af Power over Ethernet
FCC Part 15 Class A, CE
The specification is for POE-1200 hardware version 2 only.
