ICS-2102 / ICS-2102S15 / ICS-2105A

Industrial RS-232/ RS-422/ RS-485 over Ethernet Media Converter

Overview
Application
Key Features
Specification
Download
Related Products

Cost Cost Effective Solution for RS-232 / RS-422 / RS-485 to Industrial Ethernet Application
PLANET ICS-210x series Serial over Ethernet Converter is specially designed to convert serial RS-232, RS-422 or RS-485 communication to Industrial Fast Ethernet networking and help to extend the network distance efficiently and inexpensively. There are SC and LC connectors with single-mode or multi-mode media available in the ICS-210x series for your network needs. The ICS-210x is a time-saving and cost-effective solution for user and SI to quickly transform its serial equipments to the Ethernet network with no need of replacing the existing Serial equipment and software system.

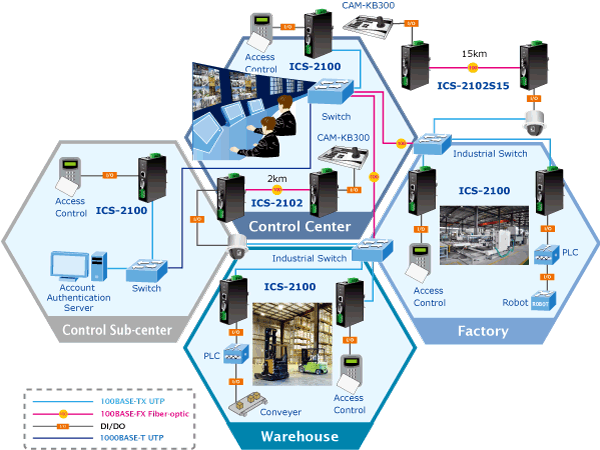

Efficiently Extend Network Distance
The ICS-210x series includes model no. ICS-2102, ICS-2102S15 and ICS-2105A. The ICS-2102 and ICS-2102S15 media converter can extend the deployment distance of serial equipments and hosts to 2km and 15km. The ICS-2105A, especially equips one SFP fiber slot (mini-GBIC 100Base-FX SFP, Small-Form Factor Pluggable), supports the deployed distance extension from 2km (via Multi-mode fiber) up to 120 kilometers (via Single-mode fiber) or longer. The ICS-210x series perfectly satisfy the diverse demands in various industrial network environments while providing reliable network solutions with budgets of installation.

Remote Manageable
The ICS-210x series makes the connected serial equipments become IP-Based facilities and able to connect to a TCP/IP network immediately. It also provides Web Management Interface for efficient remote network management. The powerful Web Smart Media Converter series supports Application mode and Serial operation mode for alarm or IP address connection, which saves the network administrator’s time in detecting and locating network problems without visual inspection of the cabling and equipments. Multiple connection options are available for large networking environment as well.

Stable Performance under Difficult Environments
The ICS-210x series provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. The feature of operating temperature range from -10 to 60 Degree C allows the ICS-210x series to be placed in almost any difficult environment.

The ICS-210x series equips with compact IP30 standard metal case that allows either DIN rail or wall mounting for efficient use of cabinet space. The ICS-210x series also provides an integrated power supply source with wide range of voltages (12 to 48V DC) ideally suitable for worldwide operation with high availability applications requiring dual or backup power inputs.

Serial Port
Interface	RS-232 x 1 RS-422 / RS-485 x 1
Connector	DB9 for RS-232 Terminal block for RS-422 / RS-485
Baud Rate (Data Rate)	300bps to 921600bps
Data Bits	5, 6, 7, 8
Parity Type	1, 1.5/2
Stop Bit	Odd, Even, None, Space, Mark
Flow Control	Hardware, None
Signals	RS-232: DCD, RxD, TxD, GND, RI RS-422: Tx+, Tx-, Rx+, Rx- RS-485: Data A (+), Data B (-)
Fast Ethernet Port
Connector	ICS-2102 / ICS-2102S15: SC ICS-2105A: LC (SFP)
Mode	ICS-2102: Multi-Mode ICS-2102S15: Single Mode ICS-2105A: Multi-Mode / Single-Mode (Vary on SFP module)
Distance	ICS-2102: 2km ICS-2102S15: 15km ICS-2105A: 2km up to 120km (Vary on SFP module)
Optical Wavelength	ICS-2102: 1300nm ICS-2102S15: 1310nm ICS-2105A: (Vary on SFP module)
Cable	ICS-2102: 50/125μm or 62.5/125μm multi-mode fiber cable ICS-2102S15: 9/125μm single-mode fiber cable ICS-2105A: 50 or 62.5/125μm multi-mode fiber cable 　　　　　　9/125μm single-mode fiber cable
Hardware
LED Indicators	System: Power 1, Power 2, Fault TP or Fiber Port: Link / Active Serial Port: Serial port mode, RS-232, RS-422 or RS-485
Management	Web Management PLANET Smart Discovery Utility Virtual COM Port Utility (VCOM) - Windows Base
Operation Mode	TCP Server TCP Client UDP Client Virtual COM Telnet Server Pair Connection – Remote (Slave) Pair Connection – Local (Master)
Dimension (W x D x H)	135 x 97 x 32 mm
Weight	ICS-2102 / ICS-2102S15 : 431g ICS-2105A: 428g
Power Supply	12~48V DC / 24V AC, Redundant power with polarity reverse protection function
Power Consumption	10.1 Watts / 34.44 BTU (max)
Installation	DIN Rail kit and Wall Mount ear
Alarm	Provides one relay output for power fail Alarm Relay current carry ability: 1A @ DC 24V
Enclosure	IP30 Metal Case
Environment	Operating Temperature: -10~60 Degree C Storage Temperature: -20~75 Degree C Operating Humidity: 10~90% RH Storage Humidity: 5~90% RH
Emissions	FCC Class A, CE Certification Class A
Standards	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX / 100Base-FX EIA/TIA RS-232/422/485
Regulatory Approval	RoHS
Stability Testing	IEC60068-2-32 (Free fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration)
* Note: Reset Button at the front panel for reset to factory default

Ordering Information
ICS-2102	Industrial RS-232/RS-422/RS-485 over 100Base-FX Media Converter (Fiber, MM/2km)
ICS-2102S15	Industrial RS-232/RS-422/RS-485 over 100Base-FX Media Converter (Fiber, SM/15km)
ICS-2105A	Industrial RS-232/RS-422/RS-485 over 100Base-FX Media Converter (Fiber, Vary on SFP module)
