With growing network services such as HDTV, IPTV, voice-over-IP (VoIP) and Multimedia broadband applications, the demand of bandwidth rises quickly. The current Broadband environment has not already accorded with needing; the FTTH (fiber-to-the-home) would be the most promising NGN (Next Generation Networking) application to fulfill the demand.

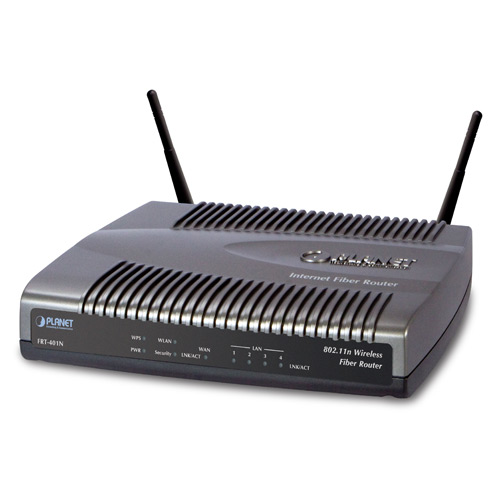

The PLANET Wireless Internet Fiber Router, FRT-40xN series, is designed with 802.11n and 2T2R MIMO antenna technology to provide office and residential users the ideal solution for sharing a high-speed fiber Internet connection and four 10/100Mbps Fast Ethernet backbone. The FRT-40xN series is a perfect FTTH Digital Home Router which can provide very high performance access to Internet, both downstream and upstream up to 100Mbps through the fiber interface. The FRT-40xN series supports several common optical connectors for WAN connection, such as 100Base-BX, 100Base-LX, 100Base-FX and Small Form Factor Pluggable (SFP). The Fiber Router can be implemented easily for optical fiber deployment.
With built-in IEEE 802.11b/g and 802.11n wireless network capability, the FRT-40xN series allows any computer and wireless-enabled network device connect to it without additional cabling. 802.11n wireless capability gives you the highest speed of wireless experience ever. With a 802.11n compatible wireless adapter installed in your PC, the files can be transferred at up to 300Mbps. The radio coverage is also doubled to offer the high speed wireless connection even in a wide space of your office or house.
To secure the wireless communication, the FRT-40xN series supports most up-to-date encryption: WEP, WPA-PSK and WPA2-PSK. In order to simplify the security settings, the FRT-40xN series supports WPS configuration with PBC/PIN type for users to connect to a secured wireless network easily.
The FRT-40xN series provides QoS functions to enable smooth network services. Traffic priority can be assigned by the router to guarantee some important and specific transmissions, especially for real-time streaming multimedia applications such as the on-line gaming, VoIP, and IPTV to keep the bandwidth usage smoothly. Moreover, the FRT-40xN series not only provides basic router functions like DHCP server, Virtual Server, DMZ, and UPnP, but also offers full firewall functions including Network Address Translation (NAT), IP / Port / MAC Filtering and Content Filtering. It serves as an Internet firewall to protect your network from being accessed by unauthorized users.
| | |
Internet Connection with Fiber Optic
The FRT-40xN series is the perfect solution to connect a small group of PCs to a high-speed Internet connection allowing multiple users to access the Internet simultaneously. With built-in 100Base-FX fiber interface, the FRT-40xN series supports different optic types for WAN distance up to 15~60 Km through the Fiber connection. The FRT-40xN is the ideal solution for FTTH (Fiber-to-the-home) applications. It can handle multiple high-throughput services such as IPTV, on-line gaming, VoIP, Internet access and keep the bandwidth usage smoothly. The FRT-40xN series also incorporates a 4-Port 10/100Base-TX switching hub, which makes it easily create or extend your LAN and prevents the attacks from Internet.
Applied with IEEE 802.11n technology, the FRT-40xN series provides better wireless signal, higher data rate and performance than 802.11g compliant routers. Furthermore, the FRT-40xN features the latest security and firewall functions to prevent unauthorized access or invasion. By just clicking the WPS button and setup step by step, then you can easily get in the wireless network and enjoy high speed Internet transmission in your home or office.
| | | | | |
• Fiber Interface for FTTH / IPTV applications
• Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX standard
• Long distance connection based on optical fiber transceiver
• Various choices of fiber-connector from SC, WDM and SFP, multi-mode / single-mode fiber /
100Base SFP
• Co-work with PLANET 100Base-FX Media Conversion and MFB-Series Transceiver
• QoS support
• 802.1Q VLAN support
• Built-in 4-Port 10/100 Mbps Ethernet switch
• Router / Bridge / WISP mode support
• SPI Firewall security for Anti-DoS Prevention
• Supports IP / Port / MAC Filtering and Content Filtering
• TS-1000 and 802.3ah OAM support
• Supports SNMP v1/v2c
• IEEE 802.11n wireless technology backward compliant with 802.11b/g standard
• Capable of up to 300Mbps wireless data rate
• WPS / WMM support
• Supports 64/128-bit WEP, WPA–TKIP(PSK), WPA2-AES(PSK), 802.1x
| | |
| Product |
| Ports |
WAN
1 x 100Base-FX port
LAN
4 x 10/100Base-TX port
Wireless
1 x 802.11b/g/n Access Point, 2 x antennas detachable
|
| Optic Interface |
Connector
FRT-401N: SC
FRT-401NS15: SC
FRT-405N: SFP
Mode
FRT-401N: Multi-mode
FRT-401NS15: Single-mode
FRT-405N: Vary on module
Distance
FRT-401N: 2km
FRT-401NS15: 15km
FRT-405N: Vary on module
|
| Optic wavelength |
FRT-401N: 850nm
FRT-401NS15: 1310nm
|
| Launch Power(dBm) |
Max.
FRT-401N: -14
FRT-401NS15: -7
Min.
FRT-401N: -19.0
FRT-401NS15: -20
|
| Receive Sensitivity |
FRT-401N: -34.5
FRT-401NS15: -28
|
| Maximum Input power |
FRT-401N: -14
FRT-401NS15: -8
|
| Fiber-optic cable |
• 50/125μm or 62.5/125μm multi-mode fiber cable, up to 2km.
• 9/125μm single-mode cable, provide long distance for 15/20/35/50km or longer (very on SFP module)
|
| LED Indicators |
PWR, WPS, WLAN, Security, Fiber, LAN1-4 |
| Button |
1 x RESET button, 1 x WPS button |
| Software |
| Max. Sessions |
4096 |
| Protocol / Feature |
Router, Bridge and WISP mode
WDS and WPS
Static Routing and RIPv1/2
DMZ and Virtual Server
802.1D
802.1Q VLAN support
QoS
SNTP
DHCP Server / Client
IGMP Proxy and DNS Proxy
Universal Plug and Play (UPnP) Compliant
DDNS (Dynamic Domain Name System)
|
| Wireless |
Wireless Standard
Compliant with IEEE 802.11n, 802.11g and 802.11b standards
Frequency
2.4 to 2.4835GHz (Industrial Scientific Medical Band )
Channels
Maximum 14 Channels, depending on regulatory authorities
Antenna
2 x 2dBi detachable Antenna
Wireless Data Encryption
64 bit / 128 bit WEP, WPA-PSK, WPA, WPA2, 802.1x encryption, and WPS PBC
Wireless Data Rate
IEEE 802.11b: 1/2/5.5/11Mbps
IEEE 802.11g: 6/9/12/18/24/36/48/54Mbps
IEEE 802.11n: 14/29/43/58/87/116/130/144Mps in 20MHz, 30/60/90/120/180/240/270/300Mbps in 40MHz
WDS
WDS repeater support
|
| VPN |
VPN Pass-Through |
| Security |
Built-in NAT Firewall
MAC / IP/ Port Filtering
Content Filtering
SPI Firewall support
Password protection for system management
|
| Management |
Web-Based configuration
Available Syslog support
TR-069*
SNMP v1/v2c
TS-1000 and 802.3ah OAM support
|
| Environment Specification |
| Dimension (W x D x H) |
186 x 143 x 35mm |
| Power |
12V DC, 1A |
| Temperature / Humidity |
Operating: 0~50 Degree C, 5~90% (non-condensing),
Storage: -10~70 Degree C, 0~95% (non-condensing)
|
| Emission |
FCC, CE |
| * Feature Enhance by Future Firmware upgradeable. |
