IPv4/IPv6 Management / High-Density / Telecom class Gigabit solution for Enterprise backbone and Data Center Networking

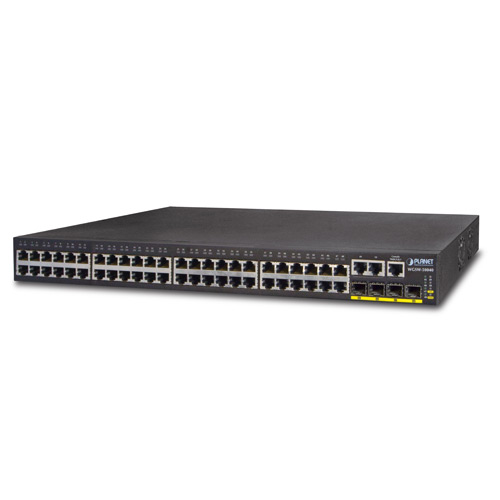

The PLANET WGSW-50040 is a Layer 2 managed Gigabit Switch that provides high density performance and is rack mountable. With 100Gbps switching fabric, the WGSW-50040 can handle extremely large amounts of data in a secure topology linking to an enterprise backbone or high capacity servers. The powerful QoS and Network Security features make the WGSW-50040 to perform effective data traffic control for ISP and Enterprise VoIP, video streaming and multicast applications.
Abundant IPv6 Support
The WGSW-50040 provides IPv6 management and enterprise level secure features such as SSH, ACL, QoS and RADIUS authentication besides the IPv4 protocol supported. Supporting IPv6 management features and also backward compatible with IPv4, the WGSW-50040 helps the enterprises to step in the IPv6 era with the lowest investment but not need to replace the network facilities while the ISP constructs the IPv6 FTTx edge network.
High Performance
The WGSW-50040 provides 50 10/100/1000Mbps Gigabit Ethernet ports with 4 shared Gigabit SFP slots. It boasts a high performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 100Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands.
Robust Layer 2 Features
The WGSW-50040 can be programmed for basic Switch management functions such as Port speed configuration, Port aggregation, VLAN, Spanning Tree protocol, QoS, bandwidth control and IGMP Snooping. It provides 802.1Q Tagged VLAN, Q-in-Q, voice VLAN and GVRP protocol. The VLAN groups allowed on the WGSW-50040 will be maximally up to 256.By supporting port aggregation, the WGSW-50040 allows the operation of a high-speed trunk combining multiple ports. It enables up to 8 groups of maximum 8-port for trunking.
Excellent Traffic Control
PLANET WGSW-50040 is loaded with powerful traffic management and QoS features to enhance services offered by telecoms. The functionality includes QoS features such as wire-speed Layer 4 traffic classifiers and bandwidth limiting that are particular useful for multi-tenant unit, multi business unit, Telco, or Network Service Provider applications. It also empowers the enterprises to take full advantages of the limited network resources and guarantees the best performance at VoIP and Video conferencing transmission.
Powerful Security
The WGSW-50040 supports ACL policies comprehensively. The traffic can be classified by source/destination IP addresses, source/destination MAC addresses, IP protocols, TCP/UDP, IP precedence, time ranges and ToS. In addition, various policies can be conducted to forward the traffic. The WGSW-50040 also provides IEEE 802.1x port based access authentication, which can be deployed with RADIUS, to ensure the port level security and block illegal users.
Efficient Management
The WGSW-50040 supports IP Stacking function that helps network managers to easily configure up to 24 switches in the same series via one single IP address instead of connecting and setting each unit one by one. For efficient management, the WGSW-50040 Managed Ethernet Switch is equipped with console, WEB and SNMP management interfaces. With its built-in Web-based management interface, the WGSW-50040 offers an easy-to-use, platform-independent management and configuration facility. The WGSW-50040 supports standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based management software. For text-based management, the WGSW-50040 can be accessed via Telnet and the console port. Moreover, the WGSW-50040 offers secure remote management by supporting SSH connection which encrypts the packet content at each session.
Flexibility and Extension solution
The four mini-GBIC slots built in the WGSW-50040 are compatible with 1000Base-SX/LX and WDM SFP (Small Factor Pluggable) fiber-optic modules. The distance can be extended from 550 meters (Multi-Mode fiber) up to above 10/50/70/120 kilometers (Single-Mode fiber or WDM fiber). It is well suited for applications within the enterprise data centers and distributions. | | |

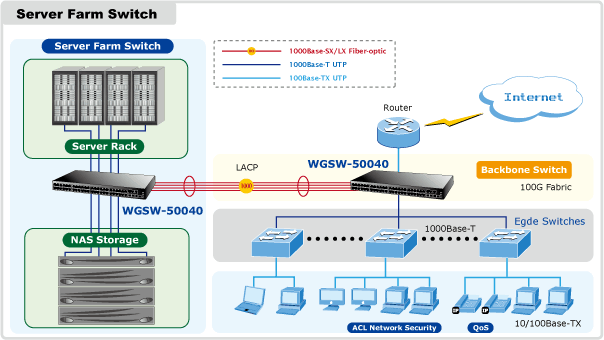

Backbone Switch
With up to 100Gbps non-blocking switch fabric and 50 high density ports design, the WGSW-50040 can easily provide high bandwidth required for both now and future. It can efficiently offer a local, high bandwidth Gigabit Ethernet network for backbone of enterprises or Telecoms. With the four SFP ports, the WGSW-50040 provides the uplink to the edge network through Gigabit Ethernet LX/SX SFP modules. | | | Server Farm Switch
The WGSW-50040 provides up to 50 Gigabit Ethernet ports for Enterprises and Network servers. It is ideal to be used as a server farm switch connecting servers. With its port trunking function, an 8 GB fat pipe is provided for connecting to the backbone if required. | | | | | | Department Security and QoS Switch
Featuring the security, Multicast IGMP Snooping and QoS functions, the WGSW-50040 improves the network efficiency and protects the network clients. With the four SFP ports, the WGSW-50040 provides the uplink to the backbone network through Gigabit Ethernet LX/SX SFP modules. | | |
Physical Port
• 50-Port 10/100/1000Base-T Gigabit Ethernet RJ-45
• 4 mini-GBIC/SFP slots, shared with Port-45 to Port-48
• RJ-45 to DB9 console interface for Switch basic management and setup
IP Stacking
• Connects with stack member via both Gigabit TP/SFP interface
• Single IP address management, supports up to 24 units stacking together
Layer 2 Features
• Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z Gigabit Ethernet standards
• Supports Auto-Negotiation and Half-Duplex / Full-Duplex modes for all 10Base-T/100Base-TX and
1000Base-T ports
• Supports 1000Base-SX/LX for all SFP interface
• Auto-MDI / MDI-X detection on each RJ-45 port
• Prevents packet loss Flow Control:
- IEEE 802.3x PAUSE Frame flow control for Full-Duplex mode
- Back-Pressure Flow Control in Half-Duplex mode
• High performance Store and Forward architecture, broadcast storm control, port loopback detect
• 8K MAC address table, automatic source address learning and ageing
• Supports VLAN
- IEEE 802.1Q Tag-Based VLAN
- GVRP for dynamic VLAN Management
- Up to 4K VLANs groups, out of 4041 VLAN IDs
- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
- Private VLAN Edge (PVE) supported
- GVRP protocol for Management VLAN
• Supports Link Aggregation
- Maximum 8 trunk groups, up to 8 ports per trunk group
- IEEE 802.3ad LACP (Link Aggregation Control Protocol)
- Cisco ether-channel (Static Trunk)
• Spanning Tree Protocol
- STP, IEEE 802.1D (Classic Spanning Tree Protocol)
- RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
- MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)
- Supports BPDU & port guard
• Port Mirroring to monitor the incoming or outgoing traffic on a particular port (many to many)
• Provides Port Mirror (many-to-1)
Quality of Service
• 8 priority queues on all switch ports
• Supports for strict priority and Weighted Round Robin (WRR) CoS policies
• Traffic classification
- IEEE 802.1p CoS / ToS
- IPv4 / IPv6 DSCP
- Port-Based QoS
• Strict priority and Weighted Round Robin (WRR) CoS policies
Multicast
• Supports IGMP Snooping v1, v2 and v3, MLD v1 and v2 snooping
• Querier mode support
Security
• IEEE 802.1x Port-Based network access authentication
• MAC-Based network access authentication
• Built-in RADIUS client to co-operate with the RADIUS servers for IPv4 and IPv6
• TACACS+ login users access authentication
• IP-Based Access Control List (ACL)
• MAC-Based Access Control List
• Supports DHCP Snooping
• Supports ARP Inspection
Management
• Switch Management Interface
- Console / Telnet Command Line Interface
- Web switch management
- SNMP v1, v2c, and v3 switch management
- SSH secure access
• BOOTP and DHCP for IP address assignment
• Firmware upload / download via TFTP or HTTP protocol for IPv4 and IPv6
• SNTP (Simple Network Time Protocol) for IPv4 and IPv6
• User Privilege levels control
• Syslog server for IPv4 and IPv6
• Four RMON groups 1, 2, 3, 9 (history, statistics, alarms, and events)
• Supports Ping, Trace route function for IPv4 and IPv6
• Management IP for IPv4 and IPv6 | | |
| Hardware Specification |
| Copper Ports |
50 10/ 100/1000Base-T RJ-45 Auto-MDI / MDI-X ports |
| SFP / mini-GBIC Slots |
4 1000Base-SX/LX SFP interfaces, shared with Port-45 to Port-48 |
| Switch Architecture |
Store-and-Forward |
| Switch Fabric |
100Gbps / non-blocking |
| Switch Throughput |
74.4Mpps |
| Address Table |
8K MAC address table with Auto learning function |
| Share Data Buffer |
0.5Mbytes |
| VLAN Table |
4K |
| ACL Table |
1K |
| Port Queues |
8 |
| Flow Control |
Back pressure for Half-Duplex
IEEE 802.3x Pause Frame for Full-Duplex
|
| Jumbo Frame |
9K |
| LED |
System:
PWR, SYS
Ports:
TP Port:10/100/1000 Link/Act
SFP Slot: On/Off
|
| Dimension (D x W x H) |
440 x 230 x 44 mm, 1U height |
| Weight |
3215g |
| Power Consumption |
80 Watts / 272.8 BTU (Maximum) |
| Power Requirement |
AC 100~240V, 50/60Hz |
| Management Function |
| System Configuration |
Console, Telnet, SSH, Web Browser, SNMPv1, v2c and v3 |
| Management |
Supports the unite for IPv4 / IPv6 HTTP
Supports the user IP security inspection for IPv4 / IPv6 SNMP
Supports MIB and TRAP
Supports IPv4 / IPv6 FTP/TFTP
Supports IPv4 / IPv6 NTP
Supports RMOM 1, 2, 3, 9 four group
Supports the RADIUS authentication for IPv4 / IPv6 telnet user name and password
Supports IPv4 / IPv6 SSH
The right configuration for users to adopt radius server’s shell management
Supports CLI, Console (RS-232), Telnet
Supports SNMPv1 / v2c / v3
Supports Security IP safety net management function:avoid unlawful landing at nonrestrictive area
Supports Syslog server for IPv4 and IPv6
Supports TACACS+
|
| Layer2 Function |
| Port Configuration |
Port disable/enable
Auto-Negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable / enable
Bandwidth control on each port
Port Loopback detect
|
| Port Status |
Display each port’s speed duplex mode, link status, Flow control status
Auto negotiation status
|
| VLAN |
802.1Q Tagged Based VLAN, up to 4K VLAN groups
Q-in-Q
GVRP for VLAN Management
Private VLAN Edge (PVE) supported
|
| Bandwidth Control |
TX / RX / Both |
| Link Aggregation |
IEEE 802.3ad LACP / Static Trunk
Supports 8 groups of 8-Port trunk
|
| QoS |
8 priority queues on all switch ports
Supports for strict priority and Weighted Round Robin (WRR) CoS policies
Traffic classification:
- IEEE 802.1p CoS / ToS
- IPv4 / IPv6 DSCP
- Port-Based QoS
Strict priority and Weighted Round Robin (WRR) CoS policies |
| IGMP Snooping |
IGMP (v1/v2/v3) Snooping, IGMP Querier mode |
| Multicast |
IGMP v1 / v2 / v3 Snooping
IGMP Querier mode support
MLD v1 / v2, MLD v1 / v2 Snooping
|
| Access Control List |
Standard and Expanded ACL
IP-Based ACL / MAC-Based ACL
Time-Based ACL
Up to 512 entries
|
| Security |
MAC + port binding
IPv4 / IPv6 + MAC + port binding
IPv4 / IPv6 + port binding
MAC filter
ARP Scanning Prevention
|
| Authentication |
IEEE 802.1x Port-Based network access control
AAA Authentication: TACACS+ and IPv4/IPv6 over RADIUS
|
| SNMP MIBs |
RFC-1213 MIB-II
RFC-1215 Internet Engineering Task Force
RFC-1271 RMON
RFC-1354 IP-Forwarding MIB
RFC-1493 Bridge MIB
RFC-1643 Ether-like MIB
RFC-1907 SNMP v2
RFC-2011 IP/ICMP MIB
RFC-2012 TCP MIB
RFC-2013 UDP MIB
RFC-2096 IP forward MIB
RFC-2233 if MIB
RFC-2452 TCP6 MIB
RFC-2454 UDP6 MIB
RFC-2465 IPv6 MIB
RFC-2466 ICMP6 MIB
RFC-2573 Snmp v3 notify
RFC-2574 SNMP v3 vacm
RFC-2674 Bridge MIB Extensions (IEEE 802.1Q MIB)
RFC-2674 Bridge MIB Extensions (IEEE 802.1P MIB)
|
| Standard Conformance |
| Regulation Compliance |
FCC Part 15 Class A, CE |
| Standards Compliance |
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x Flow Control and Back pressure
IEEE 802.3ad Port trunk with LACP
IEEE 802.1D Spanning tree protocol
IEEE 802.1w Rapid spanning tree protocol
IEEE 802.1s Multiple spanning tree protocol
IEEE 802.1p Class of service
IEEE 802.1Q VLAN Tagging
IEEE 802.1x Port Authentication Network Control |
| Environment |
| Operating |
Temperature: 0 ~ 50 Degree C
Relative Humidity: 5 ~ 90% (non-condensing)
|
| Storage |
Temperature: -10 ~ 70 Degree C
Relative Humidity: 5 ~ 90% (non-condensing)
|
