Optimal Solution for Energy-Saving and Gigabit High Performance

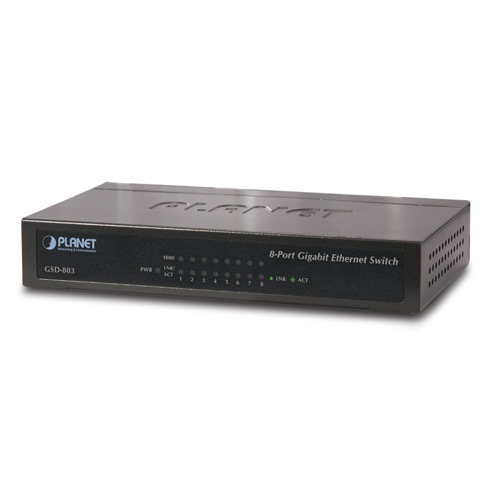

In line with the energy-saving trend worldwide, PLANET delivers the new generation Green Networking Switch GSD Series Gigabit Ethernet Switch with concepts of "Easy installation and use", "Compact-size design" and "Simple troubleshooting". PLANET GSD-803, an 8-Port Gigabit Ethernet Switch, upgraded from earlier version brings both benefits of energy saving and Gigabit performance. It is specially designed for home networking, SOHO and SMB. The GSD-803 uses new engine that provides energy saving up to 40% less energy but does not reduce the performance.
The GSD-803 incorporates two advanced Green Networking technologies:
• Idle Mode Link Down power saving
• Intelligent Scales Power based on cable length
The Idle mode Link Down power saving of GSD-803 complies with IEEE 802.3az Energy Efficient Ethernet (EEE) standard to automatically lower power for a given port when it is not linked. With the Idle mode Link Down power saving technology, the GSD-803 will automatically adjust power usage of the ports that are shut down or not connected to network device. The other technology adopted, Intelligent Scales Power, is an intelligent algorithm that actively determines the appropriate power level based on cable length. When the GSD-803 is connected with Ethernet cable shorter than 20m, a device can obtain maximum power saving because the GSD-803 would automatically detect the Ethernet cable length and reduce power usage. The connected device can substantially reduce overall power consumption, which makes a significant contribution to energy saving.
EuP Compliant Power Control
To comply with European Union's Energy-using Products (EuP) Directive for further reducing the energy consumptions, the GSD-803 is built with a power switch with off mode and standby mode selection at its rear panel. PLANET Green Networking Switch greatly helps to eliminate the power consumption at home, lower the business operation cost and fulfill the responsibility of a corporate citizen.

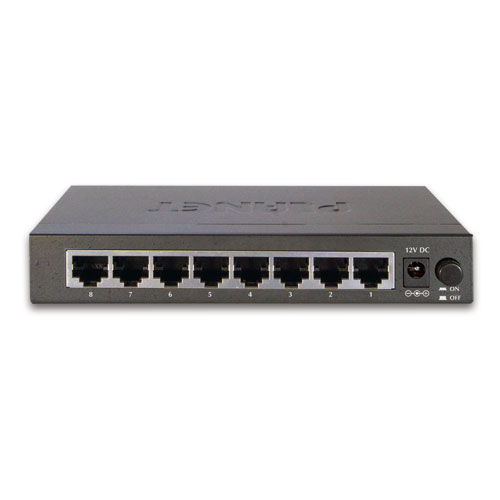

EuP Power Switch Button at rear side:
Leading Home, SOHO and Workgroup users to High-Speed Networking Generation
With the increasing popularity of desktops and laptops built with Gigabit network Interface, and wide application of shared Database Device and Multi-Media Center day by day, super high speed Ethernet Switch is expected to become the main stream in the market. PLANET GSD-803 Gigabit Ethernet Switch is especially designed with metal compact housing to bring an easy deployment of Gigabit networking for homes, SOHOs or enterprises.
Providing 16Gbps internal switching fabric, the GSD-803 can handle an extremely large amount of data in a secure topology linking to a backbone or high capacity servers. The GSD-803 provides 8K MAC address table and 1Mbits buffer memory. It offers wire-speed packet transfer performance without risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit environments, especially for the network to be upgraded to a Gigabit environment.
Plug & Play
All RJ-45 copper interfaces of the GSD-803 support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ-45 Category 6, 5 or 5e cables. It supports standard auto-MDI / MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.

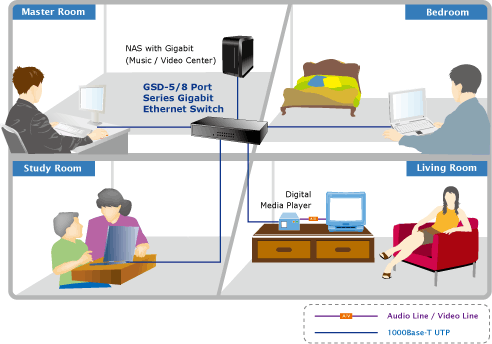

Home / SOHO High Speed Network Center
PLANET GSD-803 Gigabit Switch provides the best solution to high-speed Internet environment demanded by SOHO/ Home and Power users. This Switch fastens the speed of data transmission between devices without worrying about lagging when playing high quality multimedia. In the aspect of home-using, the GSD-803 integrates the speeds of 10, 100 and 1000Mbps which can fulfill your demands of transmitting high quality multimedia, games and other high speed applications of Internet.
• Dual Energy-Saving technology
- Link down power saving
- Intelligent scales power based on cable length
• Complies with IEEE 802.3, 10Base-T, IEEE 802.3u, 100Base-TX and IEEE 802.3ab, 1000Base-T
• IEEE 802.3x, full-duplex flow control compliant; back-pressure, half-duplex flow control
• 8-Port 10/100/1000Mbps Gigabit Ethernet ports
• Per port auto-MDI, MDI-X detection
• 8K MAC address table auto-ageing
• 9K Jumbo packet size support
• Features Store-and-Forward mode with wire-speed filtering and forwarding rates
• Non-blocking, Store and Forward switching architecture
• Automatic source address learning and aging.
• Power Saving ability for Green networking
• One power on/off button for energy saving
• Compact size, wall-mountable design
• Metal case, good for heat sinking
• Easy installation, ideal solution for fit in space-limited locations
8 10/ 100/1000Base-T RJ-45 Auto-MDI/MDI-X ports
Power on/off button
EuP power switch
Dimensions (W x D x H)
155 x 86 x 26 mm
External power adapter 12V, 1000mA
Power Consumption / Dissipation (Full operation)
Full Load: 5.4 watts / 16.74 BTU
Switch Processing Scheme
Share data Buffer
Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
