FGSW-2620CS

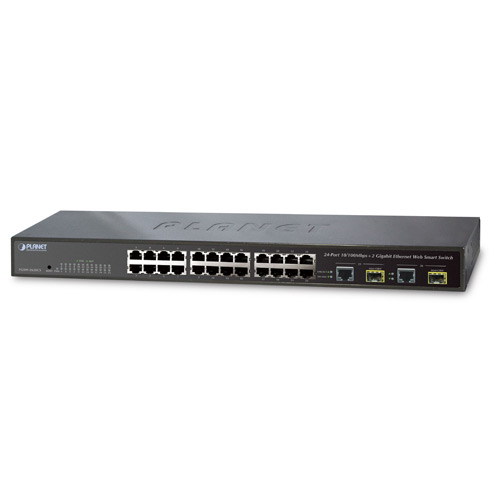

24-Port 10/100Mbps + 2 Gigabit TP / SFP Combo Web Smart Switch

Overview

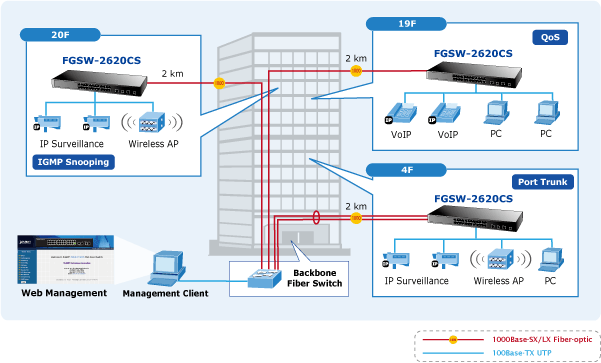

Application
Key Features
Specification
Download
Related Products

Cost-effective Edge Network Connection Solution
The FGSW-2620CS provides 24 Fast Ethernet ports and 2 Gigabit Ethernet ports and offers wire-speed packet transfer performance without risks of packet loss. It is equipped with non-blocking 8.8Gbps backplane; greatly simplifies the tasks of upgrading your LAN for catering to increasing bandwidth demands. The high data throughput makes the FGSW-2620CS ideal for most Gigabit environments, especially upgrading network to a Gigabit environment.

Advanced and Friendly Web-Based Management
For efficient management, the FGSW-2620CS is equipped with remote Web interface. It can be programmed for advanced switch management functions such as port configuration, Port-Based / IEEE 802.1Q / MTU VLAN, port mirroring, port trunk, QoS, bandwidth control, broadcast storm control, STP, RSTP, configuration backup/recovery, MAC address / TCP & UDP filter and IGMP Snooping v1/v2.

The FGSW-2620CS provides Port-Based / IEEE 802.1Q / MTU VLAN (port based / IEEE 802.1Q VLAN including overlapping). The VLAN groups allowed on the FGSW-2620CS will be maximally up to 26 for port based or up to 32 for IEEE 802.1Q VLAN groups. On the other hand, the MTU VLAN divides port 1 to port 24 as separate LAN group and only can access the public port 25 / 26 or port 26. Via supporting port trunking, the FGSW-2620CS allows the operation of a high-speed trunk combining multiple ports. The FGSW-2620CS also provides two groups of up to 4-Port 10/ 100Base-TX trunk support with up to 800Mbps bandwidth per trunk and 1 group of 2-Port 10/100/1000Mbps trunk support with up to 2000Mbps bandwidth per trunk, and supports fail-over as well.

Easy Long Distance Installation
The FGSW-2620CS is equipped with the MDI/MDI-X auto detection for easy plug and play connection, regardless of cabling types in straight through or crossover. In addition, with its Auto-Negotiation capability, all the RJ-45/UTP ports of the FGSW-2620CS can be configured to speeds of 10/20Mbps / 100/200Mbps (Fast Ethernet) and 1000/2000Mbps (Gigabit Ethernet) automatically.

The two Gigabit combo ports of the FGSW-2620CS can be either 1000Base-T for 10/100/1000Mbps or 1000Base-SX/LX through SFP (Small Form Factor Pluggable) interfaces. The distance can be extended from 100 meters (TP), 550 meters (Multi-mode fiber), up to above 10/20/30/40/50/70/120 kilometers (Single-mode fiber).

Physical Port
　　• 24 x 10/100Base-TX Fast Ethernet ports
　　• 2 x 10/100/1000Base-T TP ports
　　• 2 x 1000Base-X SFP slots, shared with Port-25 and Port-26

Layer 2 Features
　　• Auto-MDI/MDI-X detection on each RJ-45 port
　　• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x PAUSE frame flow control
　　　(full-duplex)
　　• High performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets
　　　to optimize the network bandwidth
　　• Supports VLAN
　　　　–IEEE 802.1Q Tag-Based VLAN
　　　　–Port-Based VLAN
　　　　–MTU VLAN (Multi-Tenant Unit VLAN)
　　• Supports Spanning Tree Protocol
　　　　–STP, IEEE802.1D (Classic Spanning Tree Protocol)
　　　　–RSTP, IEEE802.1W (Rapid Spanning Tree Protocol)
　　　　–Loopback Detection
　　• Supports Link Aggregation
　　　　–up to 3 trunk groups
　　　　–up to 4 Fast Ethernet ports or 2 Gigabit ports per trunk group
　　　　–IEEE 802.3ad LACP (Link Aggregation Control Protocol)
　　　　–Cisco ether-channel (Static Trunk)
　　• Port Mirroring to monitor the incoming or outgoing traffic on a particular port

Quality of Service
　　• 2 priority queues on all Switch ports
　　• Traffic classification
　　　　–Port-Based priority
　　　　–IEEE 802.1p based priority
　　　　–IP TOS / DSCP based priority
　　　　–TCP / UDP Port-Based QoS
　　• Strict priority and Weighted Round Robin (WRR) CoS policies
　　• In/Out rate limit control on each port
　　• Broadcast Storm Control support

Multicast
　　• Supports IGMP Snooping v1 and v2

Security
　　• MAC address filter
　　• TCP & UDP filter on each port
　　• Management idle time security

Management
　　• Remote Web interface for Switch management and setup
　　• Supports SNMP v1
　　• Supports DHCP Option82 and DHCP Relay
　　• Firmware upgrade through Web interface
　　• Configuration upload / download through Web interface
　　• Reset button for system reboot or reset to factory default
　　• PLANET Smart Discovery Utility for deploy management

Hardware Specification
Hardware Version	Version 2
10/100Mbps Copper Ports	24 x 10/100Base-TX RJ-45 Auto-MDI/MDI-X interfaces
1000Mbps Copper Ports	2 x 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X ports
SFP / mini-GBIC Slots	2 x 1000Base-SX/LX/BX SFP slots, shared with Port-25 and Port-26
Switch Processing Scheme	Store-and-Forward
Switch Fabric	8.8Gbps
Switch Throughput	6.547Mpps@64Bytes
Address Table	4K entries
Share Data Buffer	2.75Mb embedded memory for packet buffers
Flow Control	Back pressure for half duplex IEEE 802.3x Pause Frame for full duplex
Dimension (W x D x H)	440 x 120 x 44 mm (1U height)
LED	Power LNK / ACT (Green) 100/1000 (Green)
Reset Button	< 5 sec: System reboot > 10 sec: Factory Default
Weight	1.61 kg
Power Requirement	100~240V AC, 50-60 Hz, 0.5A
Power Consumption / Dissipation	19.6 Watts / 66.9BTU
Smart Function
System Configuration	Web interface, SNMP v1
Port Configuration	Port speed duplex mode selection Flow control disable / enable Port disable / enable Port description on each port
Bandwidth Control	1 / 2 / 4 / 8 / 16 / 32 / 64Mbps
Broadcast Storm Control	5% / 10% / 25% / 50% / Disable
Port Statistics	Display detail Ethernet traffic counter information on each port
VLAN	- 32 IEEE 802.1Q VLAN groups - 26 Port-Based VLAN groups - MTU VLAN
Spanning Tree Protocol	- STP, IEEE 802.1D (Spanning Tree Protocol) - RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
Link Aggregation	- 2 groups of 4-Port 10/100Base-TX trunk support, up to 800Mbps bandwidth per trunk - 1 group of 2-Port 10/100/1000Mbps trunk support, up to 2000Mbps bandwidth per trunk
Port Mirroring	Port mirroring allows monitoring of the traffic across any port in real time
QoS	Allows to assign low / high priority on each port First-In-First-Out, All-High-before-Low, Weight-Round-Robin QoS policy
Security	MAC Address TCP & UDP Filter
IGMP Snooping v1 / v2	Allows to disable or enable
Standards Conformance
Regulation Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 (Ethernet) IEEE 802.3u (Fast Ethernet) IEEE 802.3ab (Gigabit Ethernet) IEEE 802.3z (Gigabit Ethernet) IEEE 802.3x (Full-Duplex Flow Control) IEEE 802.1Q VLAN IEEE 802.1p QoS IEEE 802.1D (Spanning Tree Protocol) IEEE 802.1w (Rapid Spanning Tree Protocol)
Environment
Temperature	Operating: 0~50 Degree C Storage: -10~70 Degree C
Humidity	Operating: 5~90%, Storage: 5~90% (Non-condensing)

Ordering Information
FGSW-2620CS	24-Port 10/100Mbps + 2 Gigabit TP / SFP Combo Web Smart Switch
