300Mbps 802.11n Wireless Broadband Router

Home > Product > Wireless LAN > Wireless Router > WNRT-627

Print Version

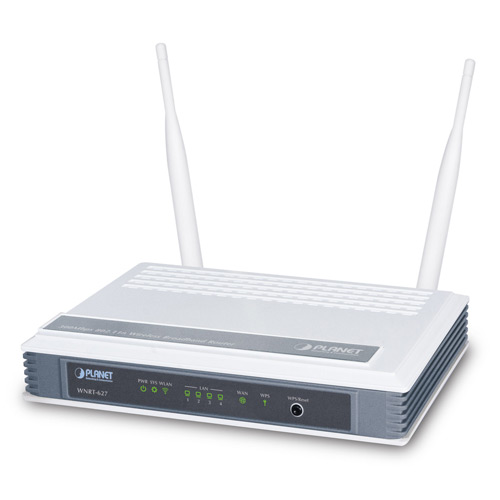

WNRT-627

300Mbps 802.11n Wireless Broadband Router

Overview

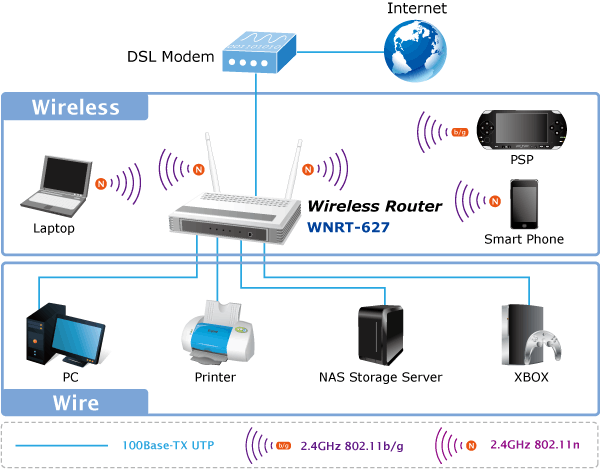

Application
Key Features
Specification
Download

Ultra High Speed 802.11n Wireless
The WNRT-627 features latest IEEE 802.11n radio with 2T2R MIMO antenna technology to provide improved wireless speed and coverage with up to 300Mbps upload and download data rate. The incredible wireless speed makes it ideal for handling multiple HD movies stream, high resolution on-line game, stereo music, VoIP and data streams at the same time stably and smoothly. It is also backward compliant with 802.11g and 802.11b standards; thus it is no need to change the existing network for maintaining connectivity. Just connect to the WNRT-627, you can immediately enjoy the high-speed wireless sharing.

Wireless Coverage Plus !
With two 5dBi high-gain antennas attached, the WNRT-627 provides stronger signal quality and more excellent performance than normal wireless routers especially when in the long range or poor environment condition for further wireless coverage range. Besides essential wireless sharing for Wi-Fi clients, the WNRT-627 provides WDS (Wireless Distribution System) bridge mode to facilitate wireless network deployments and range expanding. It provides more flexibility for users while establishing wireless network.

Wide Range of Wireless Security Support
To secure the wireless communication, the WNRT-627 supports not only 64/128/152-Bits WEP, but also up-to-date encryptions including WPA/WPA2-PSK with TKIP/AES, wireless MAC filtering and SSID broadcast control to consolidate the wireless network security and prevent unauthorized wireless connection.

Easy Secure Wireless Connection
In order to simplify security settings for home and SOHO network, the WNRT-627 supports Wi-Fi Protected Setup (WPS) with configuration in PBC and PIN type. By just push the WPS button or key in the PIN code, the secure connection between the WNRT-627 and wireless clients will be built immediately, which offers a convenient and fast method for users.

Advanced Firewall Security
To protect user’s network from external attacks, the WNRT-627 provides dual firewall mechanisms – NAT and SPI. The NAT function allows multiple users to access to Internet via a single legal IP, and the SPI (Stateful Packet Inspection) firewall protects intranet PCs from unauthorized access and prevents possible DoS attacks from the Internet. In the aspect of firewall, the WNRT-627 supplies flexible IP-Based Access Control, schedulable MAC access control and URL block to prevent possible hackers attack.

Full Functioned Router
As a robust broadband router, the WNRT-627 supports various Internet connection protocols and auto detect function to establish Internet service when the ISPs use different connection type. It also provides Virtual Server and DMZ functions for LAN PC to act as an application server and offer certain service to the clients in the LAN. The WNRT-627 allows users to setup trigger ports of special applications and utilize Internet services smoothly. Moreover, IP-Based bandwidth control optimizes time-critical applications such as VoIP or video conference not to be interrupted or lagged due to P2P files download by other clients in the same network environment.

Easy to Setup
Users can easily configure the wireless router by running the Smart Setup! wizard included in the CD-ROM provided in the package. Just click the wizard and setup step by step, you can easily get in the wireless network and enjoy high speed Internet transmission in home or office.

Hardware Specification
Interface	WAN Port: 1 x 10/100Mbps Auto MDI/MDI-X RJ45 port LAN Port: 4 x 10/100Mbps Auto MDI/MDI-X RJ45 port
Antenna	Gain: 2 x Fixed 5dBi antenna Orientation: Omni-directional
Power Button	Power On/Off button at rear panel
WPS / Reset Button	WPS / Reset button at front panel Push the button at least 5 seconds to reset to factory default setting
WPS / Reset button at front panel	PWR, SYS, WLAN, LAN x 4, WAN, WPS with green light
Material	Plastic
Dimension (W x D x H)	174 x 110 x 23 mm
Weight	280g
Power Requirement	9V DC, 0.6A
Wireless interface Specification
Standard	Compliance with IEEE 802.11b/g/n
Frequency Band	2.4~2.4835GHz
Extend Frequency	DSSS
Modulation Type	DBPSK, DQPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM)
Data Transmission Rates	11n(40MHz):270/243/216/162/108/81/54/27Mbps 　　　　　　 135/121.5/108/81/54/40.5/27/13.5Mbps (Dynamic) 11n(20MHz):130/117/104/78/52/39/26/13Mbps 　　　　　　65/58.5/52/39/26/19.5/13/6.5Mbps (Dynamic) 802.11g:54/48/36/24/18/12/9/6Mbps (Dynamic) 802.11b:11/5.5/2/1Mbps (Dynamic)
Transmission Distance	Indoor up to 100m Outdoor up to 300m (It is limited to the environment)
Channel	America / FCC: 2.414~2.462GHz (11 Channels) Europe / ETSI: 2.412~2.472GHz (13 Channels) Japan / TELEC: 2.412~2.484GHz (14 Channels)
RF Power	≦20 dBm (EIRP)
Receive Sensitivity	270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER
Wireless Management Features
Wireless Operation Mode	AP, WDS (AP+Bridge), WISP Client Router(*)
Encryption Security	WEP (64/128/152-bit) encryption security WPA-PSK / WPA2-PSK (TKIP/AES) WPA / WPA2 (TKIP/AES) WPA / WPA2 enterprise mode (802.1x authentication)
Wireless Security	Provides wireless LAN ACL (Access Control List) filtering Wireless MAC address filtering Supports WPS (Wi-Fi Protected Setup ) Enable / Disable SSID Broadcast
Wireless Advanced Features	Supports 802.11e WMM (Wi-Fi Multimedia) Supports Wireless Roaming (Mobility Feature) Provides Wireless Statistics
Router Features
Internet Connection Type	Shares data and Internet access for users by supporting the following protocols: 　　- PPPoE 　　- Dynamic IP 　　- Static IP 　　- Telstra Big Pond 　　- PPTP / Russia PPTP 　　- L2TP / Russia L2TP
Firewall	- NAT firewall with SPI (Stateful Packet Inspection) - NAT with ALG (Application Layer Gateway) - Built-in NAT server supporting Virtual Server, and DMZ - Built-in firewall with IP address filtering, Domain Name filtering, and 　MAC address filtering - Supports ICMP-FLOOD, UDP-FLOOD, TCP-SYN-FLOOD filter, DoS 　protection
Routing Protocol	Static Routing
VPN Pass-through	PPTP, L2TP, IPSec
LAN	Built-in DHCP server supporting static IP address distributing Supports UPnP, Dynamic DNS Supports Flow Statistics IP & MAC Binding IP / Protocol-Based Bandwidth Control Session Number: Max. 5210
System Management	Web-Based (HTTP) management interface Remote management SNTP time synchronize Easy firmware upgrade System Log supports auto mail and save to local host
OS Compatibility	Windows 7 (32-bit/64-bit) Windows Vista (32-bit/64-bit) Windows XP Mac OSX 10.4 and higher
Standards Conformance
IEEE Standards	IEEE 802.11n (2T2R, up to 300Mbps) IEEE 802.11g IEEE 802.11b IEEE 802.11i IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3x Flow Control
Others Protocols and Standards	CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP
Environment
Temperature	Operating: 0 ~ 40 degree C Storage: -40 ~ 70 degree C
Humidity	Operating: 10 ~ 90% (Non-Condensing) Storage: 5 ~ 90% (Non-Condensing)
(*) Future Features

Ordering Information
WNRT-617	150Mpbs 802.11n Wireless Broadband Router
