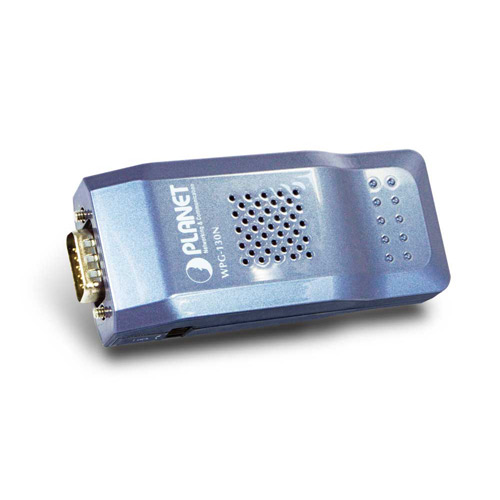

WPG-130N

802.11n Pocket Presentation Gateway

Overview

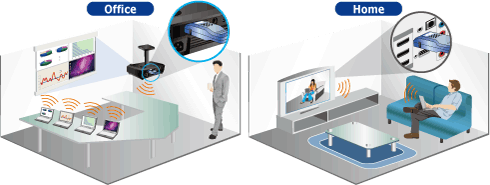

Application
Key Features
Specification
Download
Related Products

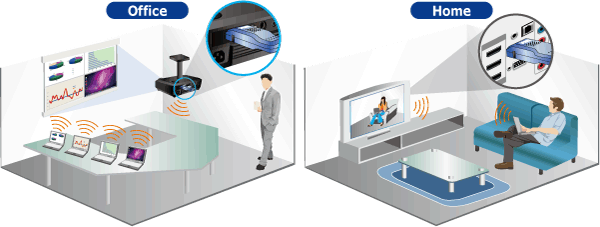

Deliver High Smoothness Presentations Wirelessly
PLANET WPG-130N is a portable wireless presentation gateway applies IEEE 802.11n technology. It is designed with a VGA video output interface in light and handy size, and ultra lightweight. You can easily take the WPG-130N to anywhere you want for wireless presentation at anytime. With the hardware decoding capability, the WPG-130N can project high-definition video on the screen through wireless connection. It facilitates multiple users to freely display the presentations, images and videos wirelessly without swapping lots of cables to connect to a projector or LCD TV.

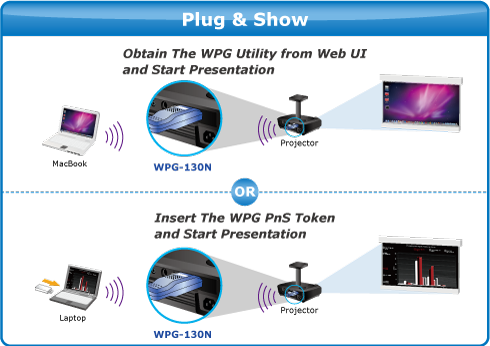

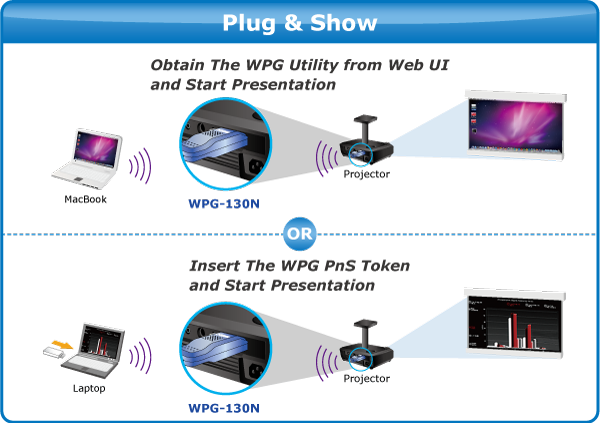

Easy to Use, Plug & Show
The connected users can directly download the embedded windows-based utility from the WPG-130N web UI or simply execute the utility from created USB token. It offers the most convenient way for the new user to project the presentation in seconds. Just link the PC / Laptop to the WPG-130N wirelessly and the presentation content will be projected to the connected projector easily.

4-to-1 Split Screen Projection
With this 4-to-1 split screen feature, the WPG-130N supports up to four PC / Laptop screens can be projected through one projector in the same time. Therefore, the meeting participants can easily process synchronous content comparison from four PC / Laptop to increase meeting efficiency.

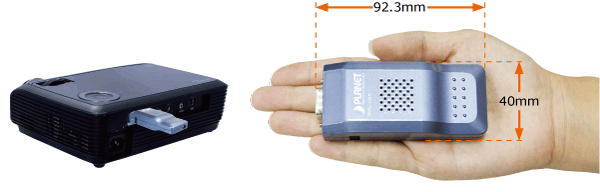

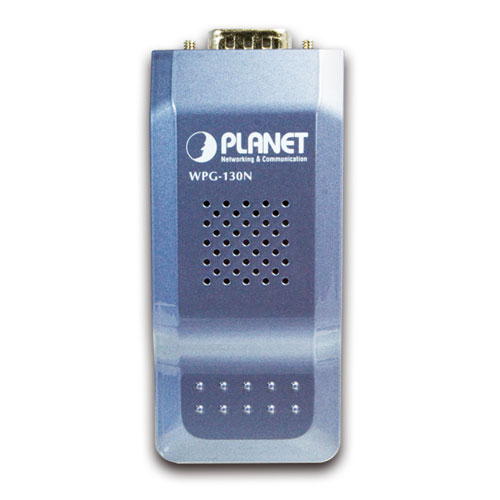

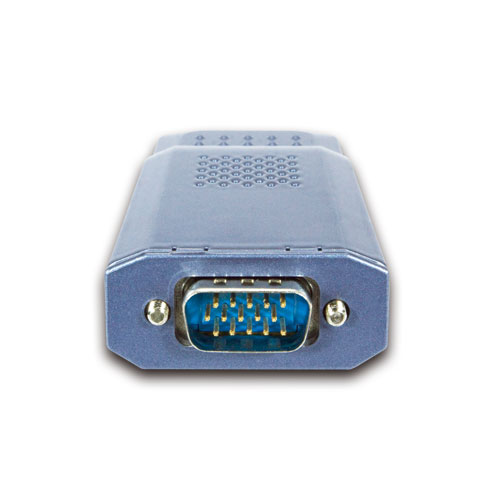

Pocket-size Design and Power over VGA (PoVGA)
PLANET WPG-130N is a wireless presentation gateway designed in pocket size and weight only 52g. The compact design is convenient for users to connect with any projector and hidden very well once it is plugged into the VGA port of the projector. Furthermore, the WPG-130N supports PoVGA (Power over VGA) so that tt could be fed power from the VGA connector of the compatible projectors. Even the last cable on the device, the power cord, will also become unnecessary.

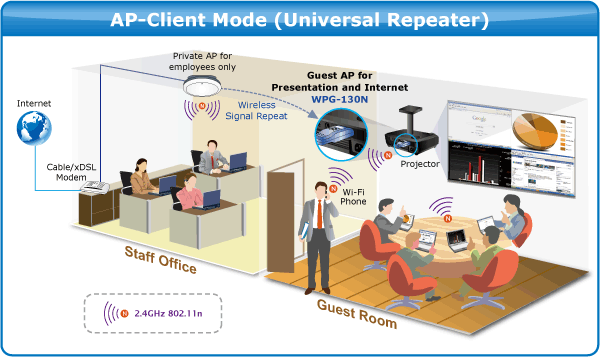

AP Client Mode
You can enable the AP Client Mode function to make the WPG-130N join the existing Access Point through Wi-Fi. This feature provides flexibility of wireless network deployment in enterprise environment. The participants in the meeting are able to surf the Internet and access to Intranet all the time, even when wireless presentations are projecting.

Hardware Specification
Interfaces	Video: VGA Port: D-Sub 15-Pin female port WLAN: 802.11n 150Mbps
Antenna	Gain: 2dBi Dual PIFA Antenna
LED Indicator	Power

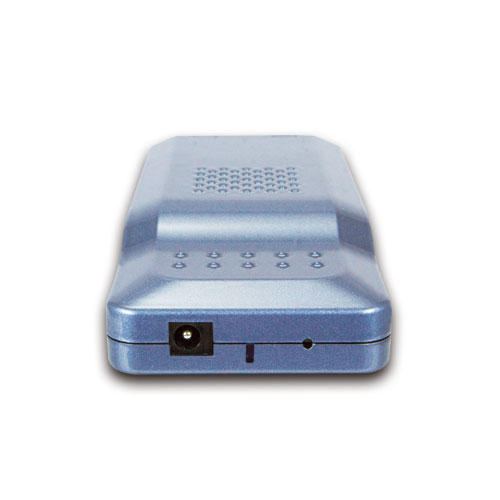

Power	External Power adaptor 5V DC input 1.2A Supports PoVGA (Power over VGA)
Compatible Projectors with PoVGA supported	Optoma EX542 Optoma EX612 Optoma EX615 Optoma EX762 Optoma EH1020
Material	Plastic
Dimension (W x D x H)	92.3 x 40 x 22 mm
Weight	52.2g
Wireless Interface Specification
Standard	IEEE 802.11n Backward compatible with IEEE 802.11b/g
Frequency Band	2.4~2.4835 GHz
Wireless Data Rate	Up to 150Mbps*
Wireless channel	America / FCC: 2.414~2.462GHz (11 Channels) Europe / ETSI: 2.412~2.472GHz (13 Channels) Japan / TELEC: 2.412~2.484GHz (14 Channels)
Wireless Output Power	802.11b: 16 dBm +/-1.5dBm (11Mbps) 802.11g: 14 dBm +/-1.5dBm (54Mbps) 802.11n: 13 dBm +/-1.5dBm (HT 20 MCS7)
Receive Sensitivity	802.11b:11M -76 dBm 802.11g:54M -67dBm 802.11n:65M HT20 -64dBm 　　　　150M HT40 -61dBm
Wireless Link Coverage	Up to 300 feet/100 meters, depends on environment
Wireless Security	IEEE Standard 64/128 bit WEP/WPA/WPA2-PSK
Operation Mode	AP-Client (Universal Repeater)
Video Display
PC / Laptop Resolution	SVGA (800x600) / XGA (1024x768) SXGA (1280x1024) / WXGA (1280x768) WSXGA (1440x900, 1600x1024) / UXGA (1600x1200) WUXGA (1920x1200) / QXGA (2048x1536) / Others
Output Resolution	VGA: SVGA (800x600) / XGA (1024x768) / WXGA(1280x768) / WXGA+(1280x800)
System Management
Protocol	TCP/IP
IP configuration	Automatic: DHCP Manual: Static IP address
Management	Web-Based configuration
Windows Account Right	Administrators Limited User Guest
Operation System	Windows XP / Vista / 7 Windows Mobile 5/6 Mac OS X 10.4 or later
Standard Conformance
IEEE Standards	IEEE 802.11n (1T1R, up to 150Mbps) IEEE 802.11g IEEE 802.11b IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX
Environment & Certification
Temperature	Operating: 0 ~ 40 Degree C Storage: -10 ~ 60 Degree C
Humidity	Operating: 10 ~ 90% (Non-Condensing) Storage: 10 ~ 80% (Non-Condensing)
Regulatory	CE / FCC / RoHS
* For best performance and wireless connection, sincerely advice to match the above related products

Ordering Information
WPG-130N	802.11n Pocket Presentation Gateway
