| Electrical Specification |
| Type |
Gas Discharged
|
| Frequency |
0 ~ 6GHz |
| V.S.W.R |
0 ~ 5GHz 1: 1.5
5 ~ 6GHz 1: 2.0 |
| Gain Loss |
0.5dB |
| Maximum Withstand Current |
20KA |
| DC Breakdown Voltage |
90±20%（@100V/S） |
| Impulse Breakdown Voltage |
＜600V（@1KV/μs） |
| AC Discharge Current |
5A（@50Hz） |
| Surge Discharge Current |
5KA （@8/20μs） |
| Insulation Resistance |
≧1000mΩ |
| Electrode Capacitance |
＜1.5P |
| Environment Specification |
| Temperature Range |
-40 ~ 65 Degree C |
| Humiture |
85 Degree C / 85% RH-48hrs |
| Mechanical Specification |
| Connector Type |

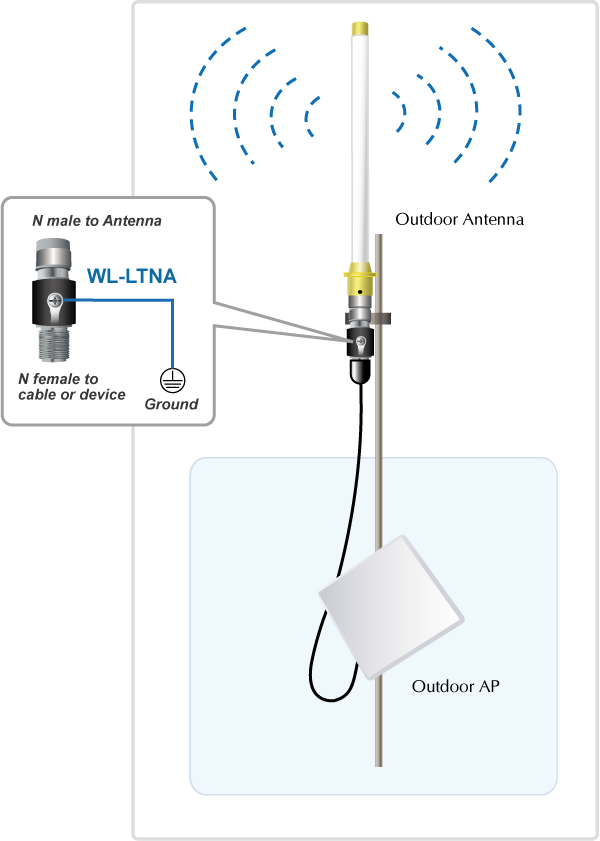

N-male (male pin) to N-female (female pin) |
| Connector Body Material |
Nickel Plated Brass |
| Body Material |
Anodized Aluminum |
| Pin Material |
Gold Plated Brass |
| Dimension (W x D x H) |
22 x 68 x 25 mm |
| Weight |
87g |
