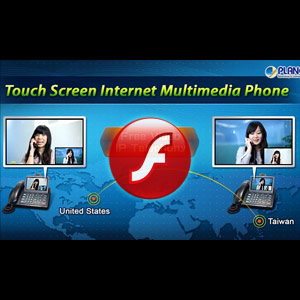

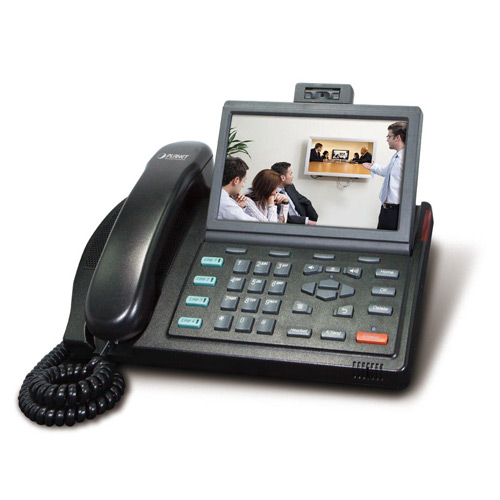

PLANET’s ICF-1700 Internet Media Phone brings you a vivid video conferencing experience easily through the Internet. No PC nor the complex web camera, sound card and software settings are required. Furthermore, the ICF-1700 has a built-in 7” LCD monitor in a telephone form factor ideal for desktop use.
The ICF-1700 is compliant with the SIP 2.0 standard, which means you can have seamless conferencing with other SIP compliant video conferencing systems, voice gateway, IP phones, ATA and IP PBX System. With SIP Proxy Server or MCU (Multipoint Control Unit) support, the ICF-1700 greatly helps your business communications more quickly and cost-effectively.
The ICF-1700 supports multiple languages for most of the users in different language-speaking easily use the multimedia phone. In addition, the ICF-1700 is designed based on Android OS 2.1 to give friendly interface in touch screen for users quickly manage its operation. The media files and photographs can also be input to the ICF-1700 via its USB interface and then be managed or display.
The ICF-1700 features video outputs to external monitor for group meetings showing video or photographs. Providing outstanding picture and sound quality, the PLANET ICF-1700 Internet Media Phone facilitates business communications via Internet.
| | |
| | |
IP PBX Mode
The ICF-1700 features IP PBX mode to deliver voice over a data network and interoperates with the normal Public Switched Telephone Network (PSTN). | | | | | | Audio / Video Conference Call
The ICF-1700 can provide video and audio conference service to any meeting room, auditorium and tracing facility by combination with MCU (Multipoint Control Unit). | | | | | |
Hardware Features
•7" Color adjustable LCD touch screen with 800x480 pixels
•Built-in High Quality 2Mega pixel CMOS camera
•Full duplex hands-free speakerphone
•Ergonomic handset (acoustical cochlea)
•1 x WAN and LAN, supports switch mode
•Compliant with IEEE 802.3af PoE standard
Network Feature
•DHCP Client on WAN
•Main DNS and secondary DNS server
•NTP Client
•QoS with DiffServ
•TR-069
•MD5 authentication
•Network tools in telnet server: includes ping, trace route, telnet client
VoIP Features
•Compliant with SIP 2.0
•4 SIP servers, and 3 backup SIP servers
•Voice Gain Setting, VAD, CNG
•Supports SIP domain, SIP authentication (none, basic, MD5)
•DNS name of server,Peer to Peer / IP call
•DTMF Relay
•Customized music rings
•Supports STUN
•SMS based on SIP
•Professional Speaker / HD Voice
•Phonebook records export / import
•XML phonebook
•Media player (mp3,wav,wma)
•USB disk & System files management
•Supports VoIP (SIP / RTP) encryption
Management
•System Based on Android 2.1
•Multilanguage realizes localization
•Third party android application,e.g. email,IM,Internet Radio,web browser
•Application market
•Web,telnet and keypad management
•Management with different account authentications
•Encrypted configuration files download with AES
| | |
| Hardware |

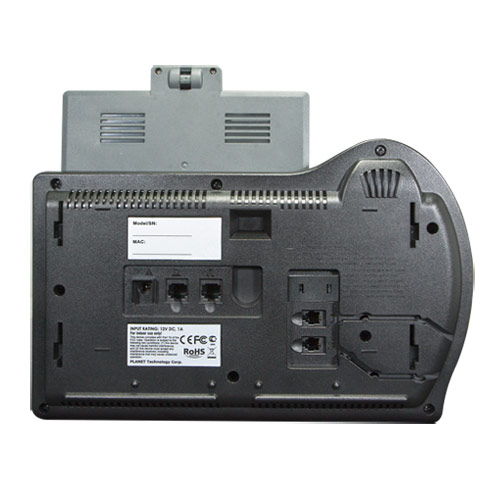

| Port |
WAN 1 x 10/100Base-T RJ-45 for LAN (IEEE 802.3af PoE compliant)
LAN 1 x 10/100Base-T RJ-45 for PC
Handle 1 x RJ9
Headset 1 x RJ9
USB 1 x USB 2.0
Video Output 1 x Mini HDMI
|
| Camera |
1 x Tiltable 2Mega pixel CMOS camera |
| Audio / Video Input |
1 x Ergonomic handset (acoustical cochlea) |
| Audio / Video Output |
1 x built-in 7” TFT LCD, adjustable angle with 800x480 pixels
1 x Full duplex hands-free speakerphone
|
| LED indicator |
1 x Power LED (PWR)
1 x Speaker LED
1 x Mute key LED
|
| Software |
| Video Standard |
Video Codec H.263, H.264, MPEG4
Video Solution QCIF, CIF, QVGA
Video Format mp4, 3gp and flv
|
| Audio Standard |
G.711A/u, G.7231 high/low, G.729a/b, G.722, G.726, iLBC, AMR-NB, AMR-WB |
| Image format |
PEG, PNG, GIF and BMP |
| Network Standard |
IEEE 802.3 / IEEE 802.3u / IEEE 802.3af |
| Network Protocol |
SIP 2.0 RFC 3261, TCP/IP, UDP, RTP, HTTP, ARP, ICMP, DNS, DHCP (client), NTP, Telnet |
| Echo Cancellation |
G.168 |
| Access Mode |
Static IP, PPPoE, DHCP |
| Phone Features |
| Network |
System files management
WAN / LAN:support switch mode
IEEE 802.3af PoE on WAN
DHCP Client on WAN
Main DNS and secondary DNS server
NTP Client
QoS with DiffServ
TR-069
MD5 authentication
Network tools in telnet server:includes ping, trace route, telnet client
|
| Basic Features |
4 SIP servers, and 3 backup SIP servers
Voice Gain Setting, VAD, CNG
Supports jitter buffer
Supports SIP domain, SIP authentication (none, basic, MD5)
DNS name of server, Peer to Peer / IP call
DTMF Relay:supports Inband, SIP info, RFC2833
Customized music rings
Supports STUN
SMS based on SIP
Professional Speaker / HD Voice
|
| SIP application |
Forward
Transfer (blind / attended / alert)
Holding
Waiting
3-Way conference
Paging and intercom
Call park / pickup
Join call
Redial and un-redial
Click to dial
Secondary dialing automatically
|
| Call control features |
Flexible dial map
Hotline
Empty calling number reject service
Black list for rejected authenticated call
White list, limit call
Do no disturb, auto answer
Caller ID, CLIR (reject the anonymous call)
CLIP (make a call with anonymous)
Dial without register
|
| Advanced Application |
Application market
Desktop widget / Google search
Multilanguage realizes localization:English, French, Arabic, German, Italian,Korean, Portuguese, Russian, Spanish, Turkish and Chinese (Traditional / Simplified)
Human voice caller ID indication
Human voice num keypad indication
Predial
Voice recording during talking / auto answer / local
Incoming calls / outgoing calls / missing calls, supporting 100 records, respectively.
Supports Phonebook up to 2000 records
Phonebook records export / import
XML phonebook
Photo frame
Media player (mp3, wav, wma)
Supports pushing message
Supports VoIP (SIP/RTP) encryption (e.g. RC4)
|
| Management |
Android OS 2.1
Third party android application,e.g.email,IM,Internet Radio,web browser
USB disk file management / Firmware upgrade
Web,telnet and keypad management
Management with different account authorizations
Automatic provision upgrades / configuration deployment
Encrypted configuration files download with AES
|
