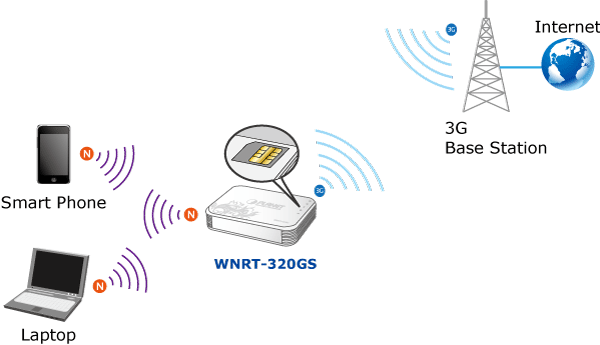

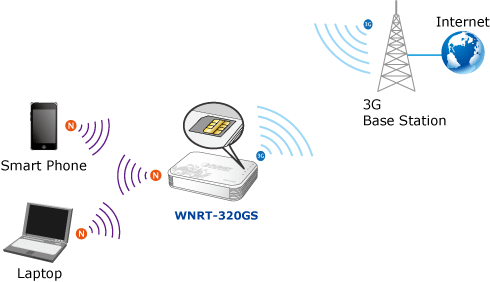

3G/3.5G Broadband Sharing

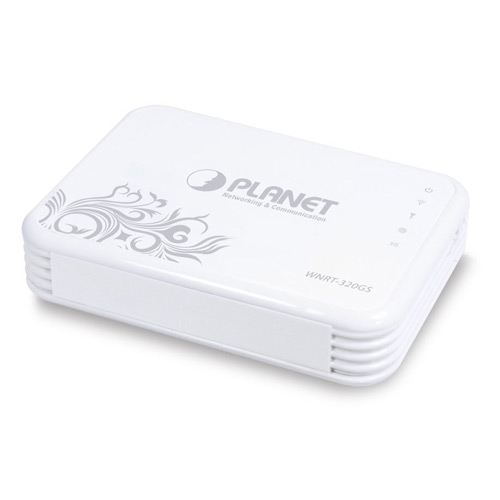

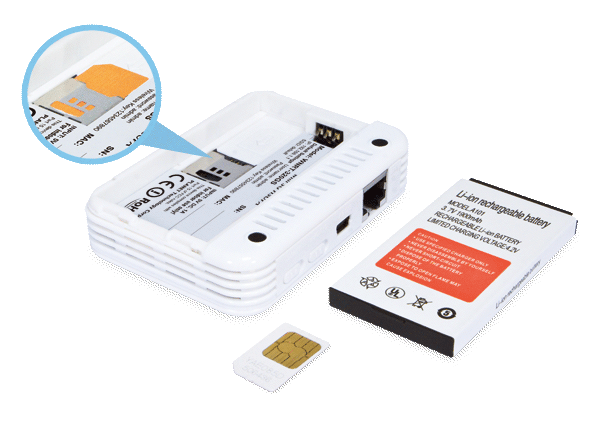

PLANET Wireless Portable 3G Router, WNRT-320GS, is the smallest multifunctional 3G AP/Router in the market. It is equipped with a built-in 3G module for the connection to WCDMA / HSDPA / HSUPA mobile network. No need of an external 3G modem, users can directly install the SIM card into the slot of the WNRT-320GS and then the hotspot service would be established instantly for multiple sharing. The WNRT-320GS provides home and SOHO users an easy, reliable and cost effective wireless solution to share the mobile Internet service wherever at home, office, or any other public places like transportation, outdoor events, and etc. | | | | | | Multiple Wireless Network Technologies for Greater Access

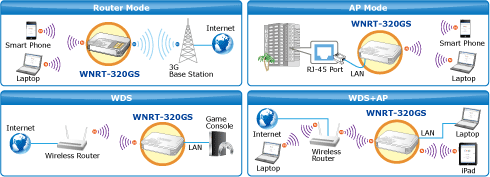

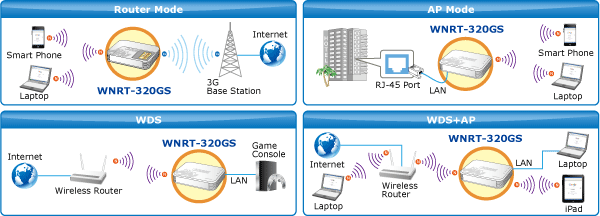

The WNRT-320GS features 802.11n radio which is also compliant with 802.11b/g standards and 1T1R antenna technology to perform wireless speed up to 150Mbps. Furthermore, it is equipped with a RJ45 port for wired Cable / xDSL service connection. Compared with general wireless routers, the WNRT-320GS offers more powerful and flexible capabilities for business demands to access Internet with true mobility and range extension of wireless network.
More Flexibility and Mobility

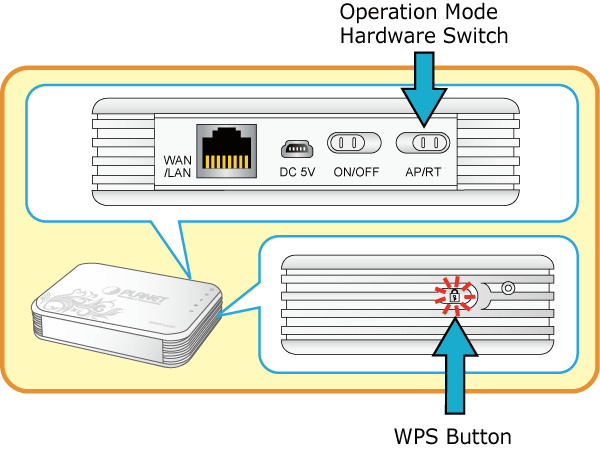

With the tiny-sized and stylish design, the WNRT-320GS is easy to carry for true mobility. It helps users to immediately set up a wireless network without software configuration in various environments by just switching the AP and Router modes on its hardware. The portable design and operation flexibility make the WNRT-320GS suitable for travelling, moving and outdoor applications. | | | | | | | | | Built-in High Capacity Battery

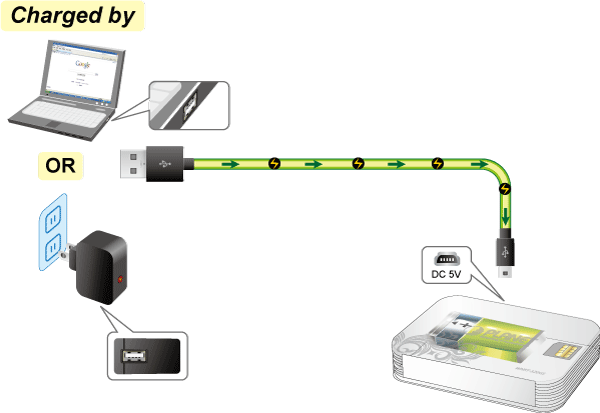

The WNRT-320GS has a built-in rechargeable DC 5V lithium battery. Besides being refilled from electric outlet, the battery can be directly charged via the computer's USB port which increases the convenience especially when there is no power outlet available. | | | | | | One-touch Secure Wireless Connection
The WNRT-320GS supports Wi-Fi Protected Setup (WPS) with configuration in PBC and PIN type in order to simplify security settings for home and SOHO network. Just push the WPS button or key in the PIN code, the secure connection between the WNRT-320GS and the wireless clients can be established immediately, which offers users a convenient and fast method to construct a secure wireless connection.
Wide Range of Wireless Security Support
To secure the wireless communication, the WNRT-320GS supports most up-to-date encryptions including WPA / WPA2-PSK with TKIP / AES. Made to fulfill enterprise and various application demands, the WNRT-320GS enhances security and management features such as multiple SSID support. It can create up to 5 virtual standalone AP with 5 different SSID according to individual security levels and encryption scheme of various wireless devices.
Advanced Firewall Security
In the Router mode, the WNRT-320GS supports NAT functions and enables multiple users to access Internet via only one single legal IP. It provides Port Forwarding and DMZ for LAN PC to act as an application server. The advanced firewall by the WNRT-320GS can protect your Intranet clients from unauthorized accesses and various DoS attacks on the Internet. In addition, the WNRT-320GS also provides IP/ MAC/ Port/ URL filtering and prevents possible hackers attack.
Special Hardware Design for Green Environment Protection
Applies the latest Ethernet technology, both the power consumption and operating temperature of the WNRT-320GS are reduced by 20 percent or more than similar products in the market. Therefore, by consuming only the amount of power needed, the WNRT-320GS allows for high performance while maintaining minimum power consumption.
Easy Setup Anytime Anywhere
The WNRT-320GS supports iPhone, iPad, Android Phone/Pad, PSP, E-books, and any other WiFi devices to help you conveniently access to Internet anywhere, anytime. It provides a total solution for both home and business users. With the High Speed 802.11n wireless technology, the WNRT-320GS is easy to integrate the wireless devices with your existing wired network. | | |
Convenient to Share 3G Mobile Connection
Via the SIM card installed in the WNRT-320GS, you can easily enjoy surfing the Internet through 3G network. The WNRT-320GS applies 802.11n technology to provide stronger wireless signal, higher data transmission rate than 802.11b/g devices. Furthermore, featuring the latest security and firewall functions, the WNRT-320GS helps to prevent unauthorized access or invasion. You can easily establish the secure wireless network and enjoy high speed Internet transmission anywhere, anytime.
| | | | | |

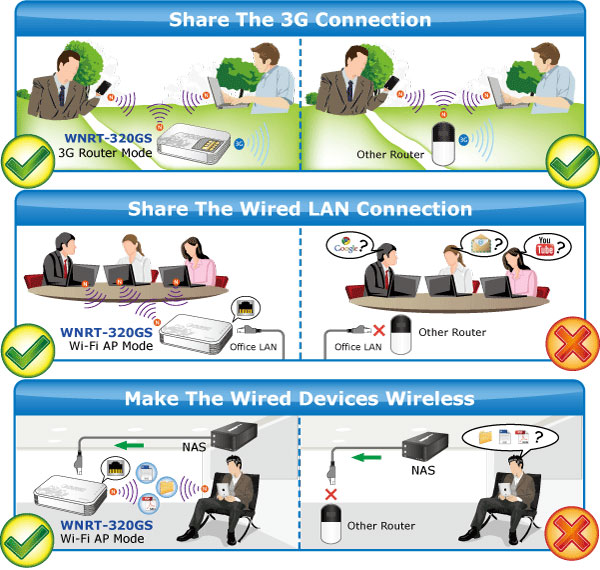

Applications Compare with Other Brand 3G Modem | | | | | |
• 3G / 3.75G Mobile Internet Connection
– Dual Network Interfaces: WAN port for cable or wired xDSL service + built-in 3G mobile connection
– Compatible with WCDMA / HSDPA / HSUPA Mobile Network
• Industrial Compliant Wireless LAN & LAN
– Compliant with IEEE 802.11n wireless technology capable of up to 150Mbps data rate
– Backward compatible with 802.11b/g standard
– Equipped with one 10/100Mbps RJ-45 Ethernet port for LAN/WAN, Auto MDI/MDI-X supported
• Wireless Network Range Extender
– Multiple Wireless Modes: AP, WDS, Repeater (AP+WDS)
– Supports WMM (Wi-Fi Multimedia)
– Supports IAPP (Inter Access Point Protocol), Wireless Roaming
• Fixed-network Broadband Router
– Supported Internet types: Dynamic IP/ Static IP/ PPPoE/ L2TP/ PPTP
– Supports Static & Dynamic (RIP1 and 2) Routing
– Supports IP / MAC-Based Bandwidth Control
– Supports 802.1d STP & IGMP Proxy
• Secure Network Connection
– Advanced security: 64/128-bit WEP, WPA-Enterprise/WPA2-Enterprise and WPA-PSK / WPA2-PSK
with TKIP / AES Encryption, 802.1x Authentication
– Built-in NAT firewall features with Port/ IP/ MAC/ URL Filtering, and DoS protection.
• Advanced Networking function for Specific Application
– Supports multiple sessions IPSec, L2TP, PPTP, and IPv6 VPN pass-through
– Supports Port Forwarding, DMZ, UPnP, QoS, and Dynamic DNS for various networking applications
– Supports DHCP Server
• Easy to install & Management
– Web-Based UI and Setup Wizard for easy configuration
– System status monitoring includes DHCP Client, System Log
• Flexible usage & Business-oriented design
– Portable and Pocket-sized design for true mobility
– Hardware switchable operation modes: Router / AP
– One-touch Wi-Fi Protected Setup (WPS)
– Built-in rechargeable Li-ion battery | | |
| Hardware Specification |
| Interface |
WAN/LAN: 1 x 10/100Mbps Auto MDI/MDI-X RJ45 port
1 x SIM card interface for plug SIM card
1 x mini USB port for charging battery
|
| Antenna |
Gain: 1 x Internal 2dBi Antenna
Orientation: Omni-directional
|
| Button / Switch |

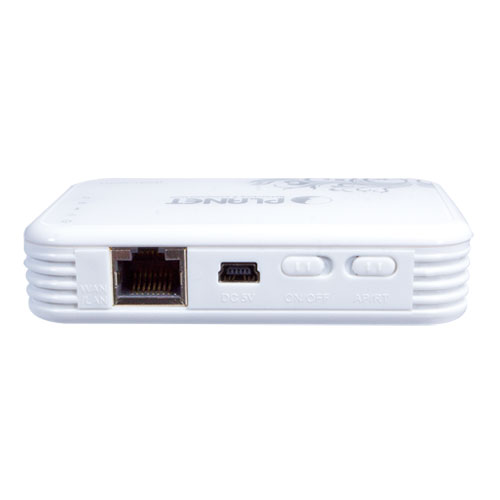

Rear panel (from left to right):
■ Power On/Off Switch
■ Mode Selection Switch (Router / AP)

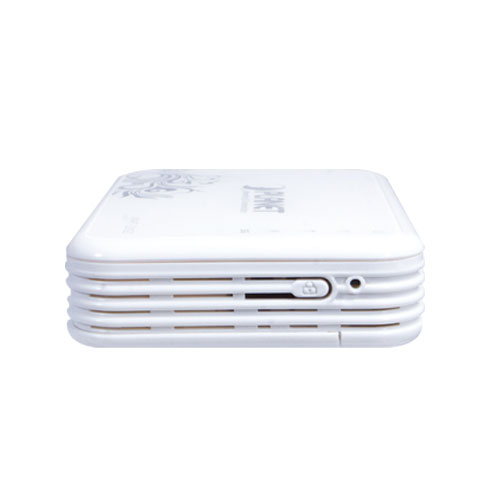

Side panel:
■ WPS button
■ Reset button
*Push for 5 seconds or longer to reset to factory default settings
|
| LED Indicators |
Power, Wireless LAN, WPS, WAN/LAN, 3G |
| Material |
Plastic |
| Dimension (W x D x H) |
88 x 62 x 20 mm |
| Weight |
With battery: 102g
Without battery: 60g
|
| Battery |
Built-in Rechargeable Li-ion Battery (3.7V, 1900mAh) |
| Power Requirement |
DC 5V, 1A maximum, connected through mini-USB connector |
| Power Adapter |
AC Input: 100~240V AC (50/60Hz)
DC Output: 5V with max. 1A current
|
| Standard Accessory |
Power Adapter x 1, USB Cable x 1, Ethernet Cable x 1, Li-ion Battery x 1, CD-ROM x 1, Quick Guide x 1 |
| 3G interface Specification |
| Network Type |
WCDMA / HSDPA / HSUPA |
| Transmit Rate |
Up to Download 7.2Mbps, Uplink 5.76Mbps |
| Frequency Range |
2100MHz |
| Wireless interface Specification |
| Standard |
Compliance with IEEE 802.11b/g/n |
| Frequency Band |
2.4~2.4835GHz |
| Extend Frequency |
DSSS |
| Modulation Type |
DBPSK,DQPSK,CCK, OFDM |
| Data Transmission Rates |
11n: Up to 150Mbps (Dynamic)
11g: Up to 54Mbps (Dynamic)
11b: Up to 11Mbps (Dynamic)
|
| Transmission Distance |
Indoor up to 100m
Outdoor up to 300m (it is limited to the environment condition)
|
| Channel |
America/ FCC: 2.412~2.462GHz (11 Channels)
Europe/ ETSI: 2.412~2.472GHz (13 Channels)
Japan/ TELEC: 2.412~2.484GHz (14 Channels)
|
| Max. RF Power |
20 dBm (EIRP) |
| Receive Sensitivity |
135M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER |
| Software Features |
| Operation Mode |
■ AP
■ Router
(by hardware switch)
|
| Wireless Mode |
AP, WDS, AP+WDS (Repeater) |
| Encryption Security |
WEP (64/128-bit) encryption security
WPA-Enterprise / WPA2-Enterprise (TKIP / AES)
WPA-Personal / WPA2-Personal (TKIP / AES)
802.1x Authentication |
| Wireless Security |
Provides wireless LAN ACL (Access Control List) filtering
Wireless MAC address filtering
Supports WPS (Wi-Fi Protected Setup)
Enable/Disable SSID Broadcast |
| Wireless Advanced |
WMM (Wi-Fi Multimedia): 802.11e Wireless QoS
IAPP (Inter Access Point Protocol): 802.11f Wireless Roaming
Provides Wireless Statistics |
| Internet Connection Type |
Shares data and Internet access for users, supporting the following types of internet access:
■ 3G
■ PPPoE
■ Dynamic IP
■ Static IP
■ PPTP
■ L2TP
|
| Firewall |
NAT firewall with SPI (Stateful Packet Inspection)
Built-in NAT server supporting Port Forwarding and DMZ
Built-in firewall with IP address/ MAC address/ Port/ URL filtering
Supports ICMP-FLOOD, UDP-FLOOD, TCP-SYN-FLOOD filter, DoS protection |
| Routing Protocol |
Static / Dynamic (RIP1 and 2) Routing |
| VPN Pass-through |
PPTP, L2TP, IPSec, IPv6 |
| LAN |
Built-in DHCP server supporting static IP address distributing
Supports UPnP, Dynamic DNS
Supports IGMP Proxy
Supports 802.1d STP (Spanning Tree)
IP / MAC-Based Bandwidth Control |
| System Management |
Web-Based (HTTP) management interface
SNTP time synchronize
Easy firmware upgrade
System Log supports Remote Log |
| Standards Conformance |
| IEEE Standards |
IEEE 802.11n (1T1R, up to 150Mbps)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11i
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3x Flow Control |
| Others Protocols and Standards |
CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP |
