Gigabit SSL VPN Security Router

Home > Product > Network Security > VPN Security Gateway > SG-4800

Print Version

SG-4800

Gigabit SSL VPN Security Router

Overview

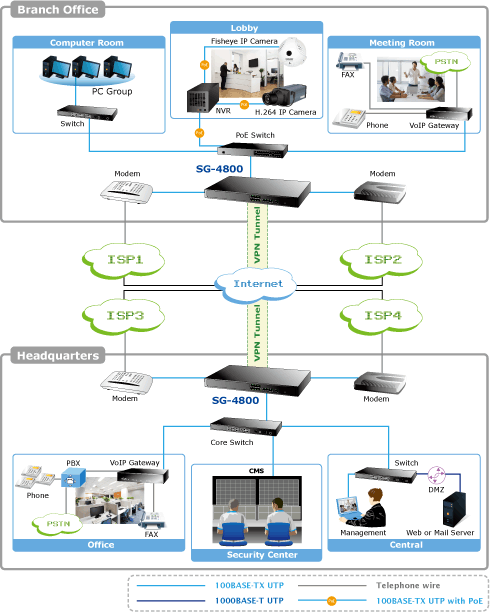

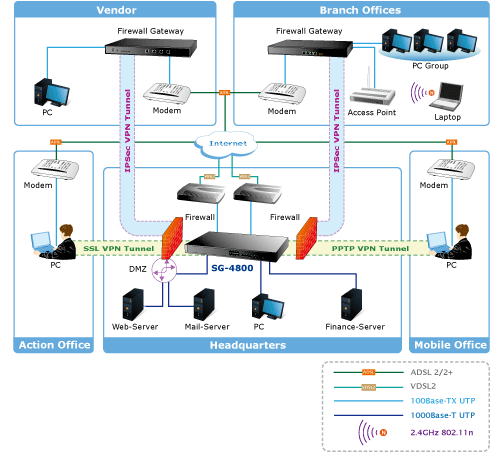

Application
Key Features
Specification
Download
Related Products

As Internet becomes essential for business, the crucial solution to prevent your Internet connection from failure is to have more than one connection. PLANET SG-4800 is the Gigabit SSL VPN Security Router ideal to help the SMBs increase the broadband network performance and reduce the risks of potential shutdown if one of the Internet connections fails. The SG-4800 can monitor each WAN link status and automatically activate backup links when a failure is detected. The detection is based on the configurable target Internet addresses.

Network Efficiency Improvement with Load-Balancing
The SG-4800 allows you to perform load-balancing by distributing the traffic through three or four WAN connections. In Outbound Load Balancing, the network sessions are assigned based on the user configurable load balancing mode, including "Auto Load Balance", "Unbinding WAN Balance" and "Strategy Routing". Users can also configure which IP or TCP / UDP type of traffic use which WAN port to connect. The Inbound Load Balancing is for enterprise’s internal server to reduce the server loading and the risks of system crash so that the SG-4800 helps to improve the server working efficiency.

Strong Protection for Network Security
In addition to providing Multi-Homing functions, the SG-4800 Gigabit SSL VPN Security Router integrates a complete security solution in one box. It provides the policy-based firewall, content filtering function and VPN connectivity including SSL, IPSec, and PPTP VPN. The SSL VPN function supports up to 60 SSL VPN connection tunnels. The IPSec VPN feature provides with 3DES and AES encryption make it a perfect product for your network security. By applying the SG-4800, there is no need of integrating different security products on the network and worry free from complicated connections and settings.

QoS Bandwidth Management
Besides offering easy yet powerful bandwidth management functions, the SG-4800 features Smart QoS with dynamic bandwidth management to automatically control P2P, video downloading and other bandwidth hogging in order to avoid bandwidth insufficiency. It helps the network administrators better allocate network resources based on business priorities, as well as to shape and control bandwidth usage by prioritizing different persons/groups or applications.

Easy Remote Management
The SG-4800 provides embedded Mirror Port to connect with the monitoring devices for online behavior monitoring. It also supports secure remote management via web browser with protection of user authentication.

Physical Port
• 8 x 10/100/1000 Base-T RJ-45, configurable with LAN 1 (Mirror Port)
• 4 x 10/100/1000 Base-T RJ-45 WAN port
• 1 x 10/100/1000 Base-T RJ-45 DMZ port

Multi-WAN Function
• Inbound / Outbound Load Balance: by session and by IP
• Bandwidth expansion with 4 Gigabit WAN ports
• Multi-WAN auto line backup

IP Routing feature
• Dynamic Route RIP v1 / v2
• Static Route
• Strategy Routing

Bandwidth Management
• Guaranteed Bandwidth
• Max. Bandwidth
• Session Limit
• Port-Based QoS

Firewall Security
• Stateful Packet Inspection (SPI) Firewall
• Denial of Service (DoS) prevention
• IP & Port filtering
• Block Website by Keyword, Content Filter
• Firewall detection: Ping of Death, SYN Flooding, Land attack, IP Spoofing
• Prevents ARP Attack on LAN

VPN Feature
• Configure Concurrent Tunnels: 200 IPSec + 60 PPTP + 60 SSL VPN or other combinations within the memory’s limitation
• IPSec, PPTP and L2TP Pass through
• Supports IPSec
-IPSec Hardware acceleration
-IPSec Encryption DES / 3DES / AES128 / AES192 / AES256
-IPSec Authentication MD5 / SHA1
-VPN Hub
• Supports SSL VPN
-10 full set SSL VPN tunnel / 50 Virtual Passage SSL VPN Client
-Remote Desktop Access
-Terminal Access: Telnet, SSH
-Authentication: Radius, LDAP, Microsoft Active Directory and NT Domain Name
-SSL Encryptions: 128bit SHA1 (DES-CBC-SHA)
-Certificate Server: RSA, PKI, Digital Certificate
-Host Check: Virus Scan, Personal Firewalls, OS Patch
-Logging and monitoring: Syslog logging of SSL VPN events by user, service and type of event

Networking
• DHCP Server (supports class C), client, dynamic IP, static IP, IP Grouping support
• Multiple DHCP Servers support multiple Subnet (supports 4 sets of Class C)
• PPPoE / Static IP / DHCP Client
• Protocol: TCP/IP, ARP, ICMP, FTP/TFTP, IPv4, IPv6
• NAT with port forwarding (Virtual Server)
• DNS Relay
• DDNS: supports DynDNS, 3322
• Password protected configuration or management sessions for web access
• Port Management – Speed / Duplex / Auto Negotiation / VLAN
• Transparent Bridge

Network Management
• Comprehensive web based management and policy setting
• SNMP v1 / v2c
• Monitoring, Logging, and Alarms of system activities
• Firmware upgrade through Web browser

Hardware
Ethernet	• LAN:8 x 10/100/1000 Mbps RJ-45 • WAN:4 x 10/100/1000 Mbps RJ-45 • DMZ:1 x 10/100/1000 Mbps RJ-45
Button	• Reset:1 x Reset button for factory default settings • Power:1 x Power on / off switch
Operating Environment	• Temperature:0 ~ 50 Degree C • Relative Humidity:10~85% (non-condensing)
Dimension (W x D x H)	440 x 254 x 43.5 mm
Power	100~240V AC, 50~60 Hz, max 0.8A
Regulatory	FCC Class A, CE
Software
Multi-WAN Function	• Inbound / Outbound Load Balance: by session and by IP • Protocol Binding • Network Service Detection
Routing	• Dynamic Route RIP v1 / v2 • Static Route
System Performance	• Concurrent session: 50000 • Firewall performance: 1Gbps • Corporation Size: SMB (clients 200~250) • 3DES performance: 270Mbps
Bandwidth Management	• Guaranteed Bandwidth • Max Bandwidth • Session Limit • Port-Based QoS
Firewall Security	• NAT • One-to-One NAT • Multiple-to-One NAT • Stateful Packet Inspection (SPI) Firewall • Denial of Service (DoS) prevention • IP & Port filtering • Block Website by Keyword, Content Filter • Firewall detection: Ping of Death, SYN Flooding, Land attack, IP Spoofing • Email Alert for Hacker Attack • IP&MAC Binding • Supports DMZ Host to protect your network • Prevents ARP Attack on LAN
Networking	• Configurable DMZ • DHCP Server (supports class C), client, dynamic IP, static IP, IP Grouping support • Multiple DHCP Server (supports 4 sets of Class C) • PPPoE / Static IP / DHCP Client • Multiple Subnet • Protocol: TCP/IP, ARP, ICMP, FTP/TFTP, IPv4, IPv6 • NAT with port forwarding (Virtual Server) • DNS Relay • DDNS: Supports DynDNS, 3322 • Password protected configuration or management sessions for web access • Port Management – Speed / Duplex / Auto Negotiation / VLAN • Transparent Bridge
Network Management	• Comprehensive web based management and policy setting • SNMP v1 / v2c • Monitoring, Logging, and Alarms of system activities • Firmware upgrade through Web browser
VPN Support	• PPTP VPN -60 PPTP VPN Tunnels • IPSec VPN: -200 IPSec VPN Tunnels -IPSec Hardware acceleration -Up to 2 Group VPNs support -Friendly VPN Tunnel Management -IKE: Pre-Shared keys -IPSec Encryption DES / 3DES / AES128 / AES192 / AES256 -IPSec Authentication MD5 / SHA1 -Supports PMTU -NAT Traversal -Connects on Demand -DPD detection -VPN Hub -IP by DNS Resolved -View Log • SSL VPN -10 full set SSL VPN tunnel / 50 Virtual Passage SSL VPN Client -SSL Hardware acceleration -Remote Desktop Access -HTTP and HTTPs Proxy -FTP and Windows Network File Sharing -Terminal Access: Telnet, SSH -Authentication: Radius, LDAP, Microsoft Active Directory and NT Domain Name -Platform supports Windows / Linux / MAC -SSL Encryptions: 128bit SHA1 (DES-CBC-SHA) -Encrypted cookies -Web cache cleaner -Certificate Server: RSA, PKI, Digital Certificate -Host Check: Virus Scan, Personal Firewalls, OS Patch -Role based management -Access Policy Management -Logging and monitoring: Syslog logging of SSL VPN events by user, service and type of event -Customized User Portal: Allows Portal Layout, Available Services to be customized -Single sign-on: Allows Single Sign-On for accessing multiple private network resources -Group and Global Bookmark Support: Enables users to access resources without needing to remember hostnames or IP addresses -Tunnel quantity upgrade mechanism • VPN Pass through -IPSec, PPTP, L2TP Pass through

Ordering Information
SG-4800	Gigabit SSL VPN Security Router
