ICA-HM101W

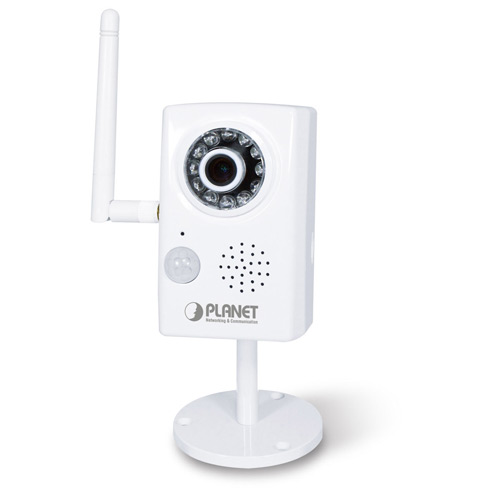

2 Mega-Pixel Wireless Cube IP Camera

Overview
Application
Key Features
Specification
Download
Related Products

PLANET announced the 2 Mega-Pixel Wireless Cube IP Camera, ICA-HM101W, to meet the demands from worldwide market. The ICA-HM101W delivers high quality image at maximum UXGA (1600 x 1200) resolutions with its built-in high performance 2Mega-Pixel CMOS sensor. Integrated the H.264 video compression technology, the ICA-HM101W can compress the video size to smaller one for users to transfer the Mega-Pixel image through Internet easily. The ICA-HM101W supports Multi-Profile and able to generate H.264 / MPEG-4 and M-JPEG streaming to different users at the same time. It allows up to 20 users to access the ICA-HM101W simultaneously. With this state-of-the-art design, the ICA-HM101W is considerable to fit in various network environments.

The ICA-HM101W brings the clearest vision at night by featuring 0.5 lux illumination and the 12 white-light LEDs built around the lens. It offers color pictures both in the daytime and nighttime with the built-in CMOS sensor supporting up to 10 meters. The ICA-HM101W also uses new High-Light LED to provide greater performance in the dark and longer life of LED.

Supporting Store-to-NAS function, the ICA-HM101W can work alone and save the video file to a NAS directly, which can save the PC resource and keep monitoring the environment with motion detection at 7/24. The ICA-HM101W integrates a passive infrared (PIR) sensor for detecting. It also offers 2-Way audio surveillance; therefore, the administrator can speak to anyone at ICA-HM101W remote site with a speaker connected. In addition, the ICA-HM101W adopts IEEE 802.11n wireless technology to communicate at maximum wireless signal rate and ensures secure transmission with WEP and WPA encryptions.

For multi-camera video surveillance applications, the ICA-HM101W can be managed by PLANET Cam Viewer 3, the professional management software to provide monitoring, recording and event management functions. The Cam Viewer 3 enables you to setup a comprehensive and effective surveillance system quickly and easily. With the ICA-HM101W managed by the Cam Viewer 3, it provides an enhanced professional security environment to protect your property and life.

*This device supports Android APP. Download Now!

Camera
Image Sensor	1/3" 2 Mega-Pixel CMOS image sensor
Lens	4.3 mm, F1.8
View Angle	H: 56 Degree V: 43 Degree
Effective Pixels	1600 x 1200 (UXGA)
Min Illumination	0.5 lux @ F1.2
Signal to Noise	42 dB
LED	12 x White-light LED
Indication LED	Green ：LAN LED Orange ：Power / Wireless LED
PIR Sensor	Built-in 6m / 120 Degree Coverage
Motion Detection	10 Area Definable
Video
Video Encoder	H.264 / MPEG-4 / M-JPEG
Video Profile	20 profiles simultaneously
Video Resolution	H.264 UXGA / VGA / QVGA / QQVGA MPEG4 VGA / QVGA / QQVGA M-JPEG UXGA / VGA / QVGA / QQVGA
Rate Control	CBR (Constant Bit Rate) / VBR (Variable Bit Rate)
Frame Rate	Mega-Pixel mode up to 15fps for all resolution VGA mode up to 30fps for VGA / QVGA / QQVGA
Image Setting	AE, AWB 3D Noise Reduction Digital WDR Color, Brightness, Sharpness, Contrast, Hue Mirror / Flip Privacy Masks Text, Time and Date Overlay
Streaming	Simultaneous Multi-Profile Streaming Streaming over UDP, TCP, or HTTP M-JPEG Streaming over HTTP (Server Push) Supports 3GPP Mobile Surveillance (MPEG4) Controllable Frame Rate and Bandwidth Constant and Variable Bit Rate (MPEG4 / H.264) ROI
Audio
Audio Codec	RTSP: G.711 64kbps, G.726 32kbps 3GPP: AMR
Audio Streaming	One-Way or 2-Way
Audio I/O	Audio in: Internal Microphone and Speaker Audio out: Line
Network and Configuration
Network Interface	10/100M Auto Negotiation
Network Standard	IEEE 802.3 IEEE 802.3u IEEE 802.11 b/g/n
Antenna connector	1x2 dBi (Max) Dual detachable diversity antenna
Frequency	2.4GHz
RF Transmit Power	OFDM: 14 dBm CCK: 17 dBm
Receiver Sensitivity	802.11b(11Mbps): CCK@8% PER = -88dBm 802.11g(54Mbps): OFDM @ 10% PER = -72dBm 802.11n Draft 6.0: HT20 @ 10% PER = -66 dBm HT40@ 10% PER= -61dBm
Data Rate	11b: 1, 2, 5.5, 11Mbps 11g: 6, 9, 12, 24, 36, 48, 54Mbps 11n (20MHz) : up to 72Mbps 11n (40MHz) : up to 150Mbps
Security	WEP and WPA Encryption
Network Protocol	TCP/IP, UDP, HTTP, SMTP, FTP, NTP, DNS, DDNS, DHCP, DIPS ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, 3GPP, ICMP, Samba
Browser / Software	Microsoft ® Internet Explorer 6.0 or later, PLANET Cam Viewer 3 Lite / Pro (CV3L . CV3P)
Users	20 Simultaneous Unicast Users
Connection Type	Static IP, DHCP
Management	Web, CV3P, CV3L
System Integration
SDK	Open API for Software Integration ONVIF
Alarm Triggers	Intelligent Video Motion Detection External Input PIR Detector (Human Detect)
Alarm Events	File Upload via FTP, Samba, SD Card or Email Notification via Email, HTTP, and TCP External Output Activation Audio Alerting Output
Video Buffer	Pre and Post Alarm Buffering
Environment
Power Requirement	12V DC, 1A
Dimension (W x D x H)	61 x 39 x 91 mm
Weight	150g
Power Consumption	7W (12VDC)
Operating Temperature	-10 ~ 40 Degree C
Operating Humidity	20 ~ 80% (non-condensing)
Emission	CE, FCC

Ordering Information
ICA-HM101W	2 Mega-Pixel Wireless Cube IP Camera
