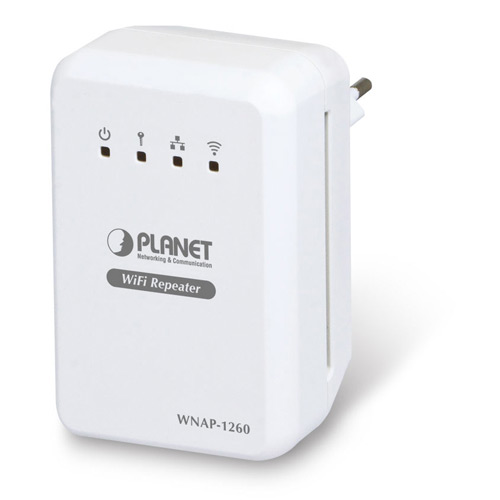

WNAP-1260

300Mbps 802.11n Wall Plug Universal WiFi Repeater / Travel Router

Overview
Application
Key Features
Specification
Download
Related Products

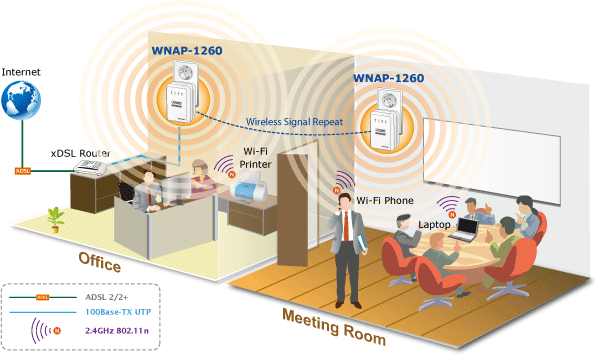

Ideal High Speed Wireless Range Extender with Flexible Wall-Plug Design
To minimize the effort of wireless network deployment, PLANET provides an ideal Wireless Range Extension solution – the WNAP-1260 Wall Plug Universal WiFi Repeater. With the compact-sized and wall plug design, the WNAP-1260 is easy to plug into any electrical outlets of any place for 300Mbps High Speed wireless network sharing. It can operate in various environments by the Hardware Switch Modes including AP, Repeater, and Client, which helps users to immediately set up a wireless network without software configuration. The wall plug design and operation flexibility make the WNAP-1260 suitable for wireless LAN range extending.

Multiple Wireless Network Technologies for Greater Access
The WNAP-1260 features 802.11n radio with 2T2R antenna technology compliant with 802.11b/g/n standards. With the 300Mbps High Speed transmitting rates, the WNAP-1260 is easy to integrate the wireless devices with existing wired network. Compared with general wireless routers, the WNAP-1260 offers more powerful and flexible capability for home and business demands to access Internet and range extension of wireless network.

One-touch Secure Wi-Fi Extension
In order to simplify security settings for home and SOHO network, the WNAP-1260 supports Wi-Fi Protected Setup (WPS) with configuration in PBC and PIN type. Just push the WPS button or key in the PIN code, the secure connection between the WNAP-1260 and the Access Point can be built immediately, which offers users a convenient and fast method to extend a secure wireless network.

More Flexibility and Mobility
With the tiny-sized and wall plug design, the WNAP-1260 is easy to plug to wall outlet for wireless access in any place. It can operate in various environments with the hardware switch modes including AP, Repeater, and Client, which helps to immediately set up a wireless network without software configuration. The wall plug design and operation flexibility make the WNAP-1260 suitable for range extending.

Wide Range of Wireless Security Support
To secure the wireless communication, the WNAP-1260 supports most up-to-date encryptions including WPA / WPA2-PSK with TKIP/AES. Made to fulfill enterprise and various applications demand, the WNAP-1260 enhances security and management features such as multiple SSID support. It can create up to 5 virtual standalone AP with 5 different SSID according to individual security levels and encryption scheme of various wireless devices.

Internet Broadband Sharing
The WNAP-1260 provides home and SOHO users a reliable and cost effective wireless solution by featuring WAN Internet access and high speed IEEE 802.11n wireless transmission. The WNAP-1260 is equipped with one LAN/WAN port for connection to local network or for wired cable / xDSL service connection. It provides a more flexible and easier way for users to share an instant wireless network service via range extension wherever at Home, Hotspot, or in public places like transportation, outdoor events, and etc.

Advanced Firewall Security
In the Router mode, the WNAP-1260 supports NAT functions allowing multiple users to access Internet via only one single legal IP. It provides Port Forwarding and DMZ for LAN PC to act as an application server. Furthermore, the advanced firewall by the WNAP-1260 can protect your Intranet clients from unauthorized accesses and various DoS attacks from the Internet. In aspect of the firewall, the WNAP-1260 provides IP / MAC / Port / URL filtering to prevent possible hackers attack.

Easy Setup Anywhere with Wall-Plug Design

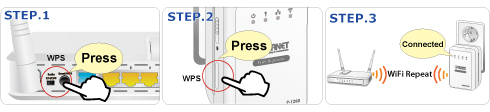

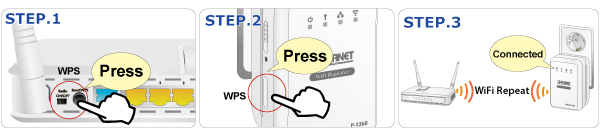

Built-in small power-supply brick with integral male plug, the WNAP-1260 can be plugged directly into a wall outlet. Thus it can plug to any electrical outlets to repeat the existing poor Wi-Fi signal by just pressing its WPS button. Besides, uses also can easily apply any operating modes by switching the Hardware Mode Switch. With the universal design and compatible with any brands of router or access point, the WNAP-1260 provides the easiest way to eliminate wireless dead spots in office or home wireless network.

Hardware Specification

Interface

LAN/WAN: 1 x 10/100Mbps Auto MDI/MDI-X RJ45 port

Antenna

Gain: 2 x Internal 2dBi Antenna
Orientation: Horizontal and Vertical

Button / Switch

　■ Mode Selection Switch (AP / Repeater / Client)
　■ WPS Button
　■ Reset button
* Push about 3~6 seconds to reset to factory default settings

LED Indicators

PWR, WPS, Ethernet, WLAN

Material

Plastic

Dimension (W x D x H)

55 x 75 x 40 mm

Weight

80g (gross weight)

Power Requirement

100~240VAC

Plug Type

EU / US

Power Consumption

On-state: 2.1W
Low power state: 1.5W

Wireless interface Specification

Standard

Compliant with IEEE 802.11b/g/n

Frequency Band

2.4~2.4835GHz

Extend Frequency

DSSS

Modulation Type

DBPSK, DQPSK, QPSK, CCK and OFDM (BPSK / QPSK / 16-QAM / 64-QAM)

Data Transmission Rates

802.11n(40MHz):	270/243/216/162/108/81/54/27Mbps
	135/121.5/108/81/54/40.5/27/13.5Mbps (Dynamic)
802.11n(20MHz):	130/117/104/78/52/39/26/13Mbps
	65/58.5/52/39/26/19.5/13/6.5Mbps (Dynamic)

802.11g: 54/48/36/24/18/12/9/6Mbps (Dynamic)
802.11b: 11/5.5/2/1Mbps (Dynamic)

Transmission Distance

Indoor up to 100m
Outdoor up to 300m (Depends on the environment)

Channel

America / FCC: 2.412~2.462GHz (11 Channels)
Europe / ETSI: 2.412~2.472GHz (13 Channels)
Japan / TELEC: 2.412~2.484GHz (14 Channels)

Channel Width

20 / 40MHz

Max. RF Power

802.11b: 17±1.5dBm
802.11g: 14±1.5dBm
802.11n (20MHz): 14±1.5dBm
802.11n (40MHz): 14±1.5dBm

Receive Sensitivity

802.11b: -92dBm @ 1Mbps; -85dBm @ 11Mbps, PER < 8%
802.11g: -88dBm @ 6Mbps; -73dBm @ 54Mbps, PER <10%
802.11n: -90dBm @ MCS8; -70dBm @ MCS15, PER <10%

Software Features

Operation Mode

　■ AP/Router
　■ Repeater
　■ Client
(Switchable by Hardware)

Wireless Mode

■ Universal Repeater(AP+Client)	■ Repeater(WDS+AP)
■ WDS PTMP(Point to Multipoint)	■ WDS PTP(Point to Point)
■ Client	■ AP(Access Point)

Encryption Security

　■ WEP (64/128-bit) encryption security
　■ WPA / WPA2 (TKIP/AES)
　■ WPA-PSK / WPA2-PSK (TKIP/AES)

Wireless Security

Provides wireless LAN ACL (Access Control List) filtering
Wireless MAC address filtering up to 16 entries
Supports WPS (Wi-Fi Protected Setup)
Enable / Disable SSID Broadcast

Wireless Advanced

WMM (Wi-Fi Multimedia): 802.11e Wireless QoS
Multiple SSID: up to 4
Wireless Isolation: Supports Wireless Isolation
IAPP (Inter Access Point Protocol): 802.11f Wireless Roaming
Provides Wireless Statistics

Max. Clients

Wire: 253
Wireless: 32

Internet Connection Type

Shares data and Internet access for users, supporting the following internet access:

■ Dynamic IP	■ PPTP
■ Static IP	■ L2TP
■ PPPoE

Firewall

NAT firewall with SPI (Stateful Packet Inspection)
Built-in NAT server supporting Port Forwarding, Port Triggering, and DMZ
Built-in firewall with IP address / MAC address / Port / URL filtering
Supports ICMP-FLOOD, UDP-FLOOD, TCP-SYN-FLOOD filter, DoS protection

Routing Protocol

Static Routing

VPN Pass-through

SIP ALG, PPTP, L2TP, IPSec

LAN

Built-in DHCP server supporting static IP address distributing
Supports UPnP, Dynamic DNS
Supports IGMP Proxy

System Management

Web-Based (HTTP) management interface
SNTP time synchronize
Easy firmware upgrade

Standards Conformance

IEEE Standards

IEEE 802.11n (2T2R, up to 300Mbps)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11i
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3x Flow Control

Others Protocols and Standards

CSMA / CA, CSMA / CD, TCP / IP, DHCP, ICMP, NAT, PPPoE, SNTP

Environment & Certification

Temperature

Operating: 0 ~ 45 Degree C
Storage: -20 ~ 70 Degree C

Humidity

Operating: 10 ~ 90% (Non-Condensing)
Storage: 5 ~ 90% (Non-Condensing)

Regulatory

CE, RoHS

Ordering Information
WNAP-1260-EU	300Mbps 802.11n Wall Plug Universal WiFi Repeater (EU-Type)
WNAP-1260-US	300Mbps 802.11n Wall Plug Universal WiFi Repeater (US-Type)
