| Video |
| Compression |
MJPEG / MPEG-4 / H.264 |
| Resolution |
5 MP / HD / Mega-Pixel / FD1 / CIF / QCIF |
| Max. Frame Rate |
480 fps (1280 x 1024, H.264) |
| Display Mode |
Live View / Playback / Full Screen |
| PTZ Support |
Virtual PTZ Panel / Auto Pan / Preset Point / Preset Sequence / Digital PTZ |
| Sequence Mode |
Sequence All
Manually selected cameras in 1/4 split view with configurable timer
|
| Snapshot |
3 continuous snapshots in JPEG format |
| E-Map |
Motion Detected Event Display on E-Map
Google Map
|
| Recording Mode |
Manual, Schedule, Event, Continuous |
| Hardware |
| Video Input |
16 Channels IP Cameras |

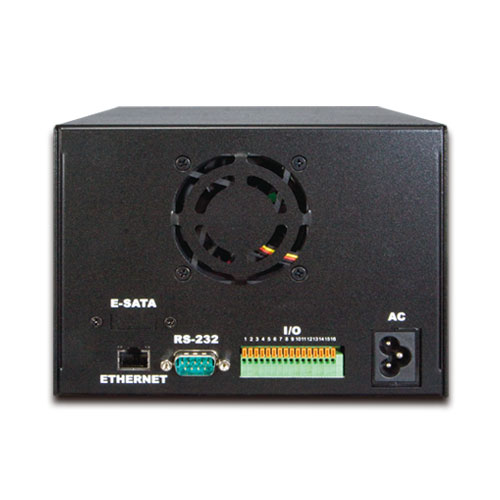

| Ethernet |
1 x RJ-45, 10/100/1000Base-T |
| USB Interface |
1 x USB 2.0 for backup device and firmware upgrade |
| Storage Device |
2 x 3.5" SATA II Hard Disk Connectors |

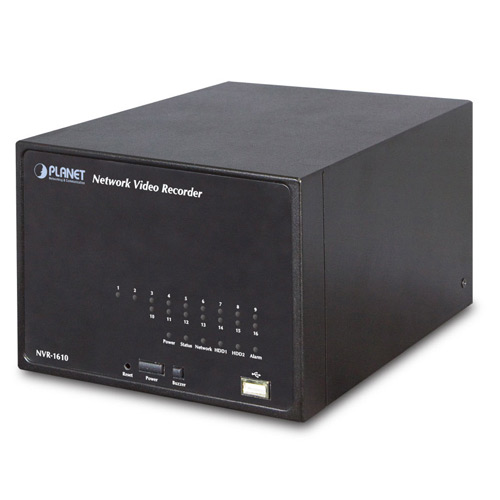

| Button |
Power, Reset, Buzzer |
| LED Display |
1 x Power
1 x Status
1 x LAN
2 x HDD
1 x Alarm
16 x IP Camera
|
| Network and Configuration |
| Network File Protocol |
Microsoft Networks (CIFS/SMB), Internet (HTTP), FTP |
| Network Service |
TCP/IP, DHCP, DNS, HTTP, FTP, NTP, SMTP, UPnP |
| Management |
Web-Based Administration
Network Time Protocol
Multiple Users Account
E-mail Notification
System Log
Firmware Upgrade
|
| User Interface |
Web Browser
CMS Utility
|
| Environment |
| Power |
100~240V AC, 1.4A / Max. 50/60Hz |
| Consumption |
90W |
| Operating Temperature |
0~45 Degree C |
| Storage Temperature |
-40~70 Degree C |
| Humidity |
0~90% (non-condition) |
| Weight |
2.89 kg |
| Dimension (W x D x H) |
170 x 215 x 125 mm |
