| SPECIFICATION |
| Product |

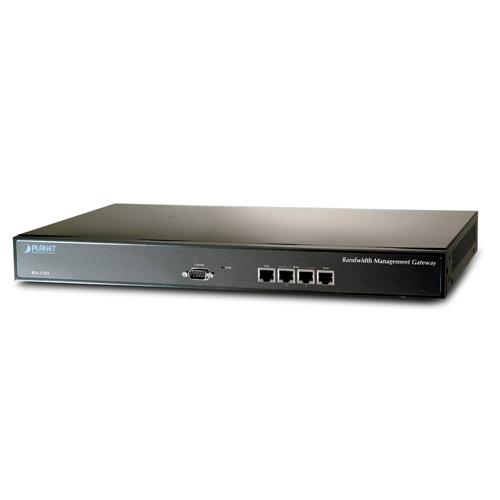

Bandwidth Management Gateway
|
| Hardware |
| Connections-WAN |
2 x 10/100Base-TX
|
| Connections-LAN |
1 x 10/100Base-TX, Auto-MDI/MDI-X
|
| Connections-DMZ |
1 x 10/100Base-TX, Auto-MDI/MDI-X
|
| Console |
1 x RS-232 (DB-9)
|
| H/W Watch-Dog |
Auto reboot when detecting system fails
|
| Software |
| Maximum Controlled Bandwidth |
100Mbps
|
| Maximum Controlled Concurrent Session |
241,000
|
| Management |
Web (English, Traditional Chinese, Simplified Chinese)
|
| Operation Mode |
DMZ_NAT, DMZ_Transparent, NAT
|
| WAN Connection Type in NAT Mode |
PPPoE, DHCP, and Fixed IP
|
| Traffic Classification |
IP, IP subnet and TCP/UDP port
|
| Bandwidth Allocation |
Policy rules with Inbound/Outbound traffic management
Guaranteed and maximum bandwidth
Scheduled in unit of 30 minutes
3 Priorities
Quota per Session and Quota per Day |
| Log |
Traffic Log, Event Log, Connection Log and Log backup by mail or syslog server
|
| Statistics |
WAN port statistics and policy statistics with graph display
|
| Firewall Security |
Policy-based access control
Stateful Packet Inspection (SPI)
Scheduled in unit of 30 minutes
|
| Hacker Alert and Anomaly Flow Detection |
Detect SYN Attack, Detect ICMP Flood, Detect UDP Flood, Detect Ping of Death Attack, Detect Tear Drop Attack, Detect IP Spoofing Attack, Filter IP Route Option, Detect Port Scan Attack, Detect Land Attack, Virus-Infected Blocking, E-Mail Alert Notification and NetBIOS Notification
|
| Alarm |
Event alarm for hacker attacks
The alarm message can send to administrators by e-mail
|
| Other Functions |
Firmware Upgradeable through web
NTP support
Configure Backup and Restore through web
Dynamic DNS support
Multiple NAT and multiple DMZ (mapped IP) support
Multiple server load balancing |
